How To Adjust Drum Brakes: The Complete Professional Maintenance Guide

Adjusting drum brakes involves manually expanding the brake shoes toward the inner surface of the brake drum to compensate for friction material wear, ensuring consistent pedal height and optimal stopping force. Proper adjustment requires precision to prevent brake drag, which can lead to overheating, accelerated lining wear, and premature wheel bearing failure.

Essential Preparation and Maintenance Prerequisites

Before initiating the adjustment process, you must confirm that the hydraulic system is fully functional and that the mechanical components are not seized. Drum brakes operate on a self-adjusting mechanism; however, if the star-wheel adjuster is corroded or the automatic adjustment lever is damaged, manual intervention is necessary. This procedure requires basic hand tools and a focus on safety standards to ensure the vehicle remains roadworthy.

• Essential Tools: A dedicated brake spoon or flathead screwdriver for the star-wheel adjuster, a high-quality hydraulic floor jack, two heavy-duty jack stands, a lug wrench or impact gun, and a flashlight.
• Safety Gear: Safety glasses and a NIOSH-approved respirator or face mask to protect against brake dust, which may contain hazardous fibers if the vehicle pre-dates modern non-asbestos linings.
• Pre-Procedure Benchmarks: Ensure the vehicle is parked on a level, stable concrete surface. The parking brake must be fully disengaged to allow the shoes to retract.
• Estimated Duration: 45 to 90 minutes for a complete rear-axle adjustment.
• Budget Considerations: Minimal cost if you possess standard tools; budget for potential replacement of adjuster kits if the threads are stripped or frozen.

Procedural Workflow for Manual Brake Adjustment

Step 1: Safely Elevate and Secure the Vehicle

Loosen the lug nuts on the rear wheels while the vehicle is on the ground. Raise the vehicle using the manufacturer’s specified lifting points. Position jack stands securely under the axle or frame rails, ensuring the vehicle is completely stable before proceeding. Once the vehicle is supported by the stands, remove the rear wheels to gain clear access to the brake drums.

Step 2: Locate the Adjustment Access Port

Examine the brake backing plate located behind the brake drum. Many vehicles feature an oval-shaped rubber grommet covering an access slot. Remove this grommet. If your specific vehicle lacks an access port on the backing plate, you may need to remove the brake drum entirely to perform the adjustment, though this makes fine-tuning more difficult as the drum will need to be replaced and removed multiple times.

Warning: Never use a screwdriver that is too small or rounded at the tip; if the tool slips while applying force, you risk damaging the star-wheel teeth or injuring your hand against the backing plate.

Step 3: Manipulate the Star-Wheel Adjuster

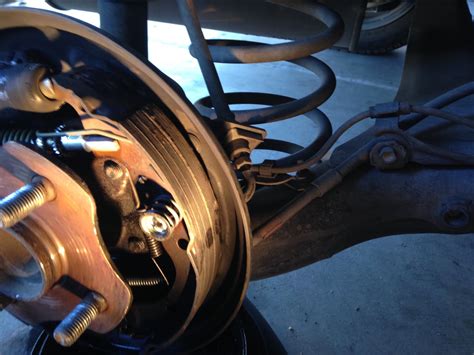

Insert the brake spoon into the access slot, engaging the teeth of the star-wheel adjuster located at the bottom of the shoe assembly. Rotate the star-wheel to expand the shoes. As you turn the wheel, you will feel the shoes press against the inner diameter of the drum.

• Use the brake spoon to pull the handle upward (or push downward, depending on the orientation of the adjuster) to expand the shoes.
• Rotate the drum by hand while adjusting. You are looking for a slight, consistent drag—a light "whisper" of the shoes touching the drum surface.
• If the drum becomes difficult to turn, you have over-adjusted the brakes. Back off the star-wheel by pressing the adjustment lever away from the wheel with a thin screwdriver while turning the star-wheel in the opposite direction.

Step 4: Verify Pedal Feel and Parking Brake Tension

Once the drag is set correctly on both sides, replace the access grommets and re-install the wheels. With the engine off, pump the brake pedal several times to seat the shoes. The pedal should feel firm and travel should be minimal. Pull the parking brake lever; it should engage firmly within the first 3 to 5 clicks. If the lever pulls up too far, the brake shoes require further adjustment or the parking brake cable needs tightening.

Technical Parameters and Performance Metrics

The following table summarizes the critical values and inspection criteria for drum brake maintenance to ensure compliance with standard mechanical performance requirements.

Troubleshooting Common Brake Complications

• Condition: Excessive Pedal Travel




  • Root Cause: The automatic adjusters have failed to keep up with lining wear, or the star-wheel is seized with debris.
  • Actionable Fix: Manually perform the adjustment as outlined above. If the condition recurs within a few days, the automatic adjustment cable or lever is likely broken and must be replaced.

• Condition: Grinding Noise During Braking




  • Root Cause: The brake lining has worn down to the steel backing plate, or foreign debris (pebbles/dirt) is trapped between the shoe and drum.
  • Actionable Fix: Remove the drum immediately. If the friction material is gone, the shoes and drums must be replaced. Clean out any debris with brake cleaner before reassembling.

• Condition: Vehicle Pulls to One Side




  • Root Cause: One side is adjusted significantly tighter than the other, or a wheel cylinder is leaking fluid onto the friction material.
  • Actionable Fix: Inspect the backing plate for moisture. If dry, readjust both sides to ensure uniform resistance. If wet, the wheel cylinder must be overhauled or replaced.

Frequently Asked Questions

Why do my drum brakes need manual adjustment if they are automatic?

While drum brakes are equipped with self-adjusters, these components often seize due to road grime, heat cycles, and rust. When the self-adjusting mechanism fails, the manual adjustment becomes necessary to maintain safe pedal height and stop the vehicle effectively.

How tight should the shoes be against the drum?

The shoes should be tight enough that you feel a slight, consistent resistance when rotating the drum by hand, but not so tight that the drum is difficult to turn. If you feel excessive resistance, back off the adjuster until the drum spins freely with only the slight "whisper" of the shoe touching the surface.

Can I use WD-40 to loosen a stuck star-wheel?

Do not use standard penetrating oils on your brake shoes or inside the drum assembly, as contamination will ruin the friction material. Use a dedicated, fast-evaporating brake parts cleaner to degrease the threads, and apply a very small amount of high-temperature brake grease only to the adjuster threads if necessary.

How often should I check my drum brake adjustment?

It is standard practice to inspect the brake shoe wear and adjustment during every tire rotation or at least every 10,000 to 12,000 miles. Early detection of uneven wear patterns can prevent more expensive repairs, such as replacing scored drums or damaged wheel cylinders.

Ensure your vehicle maintains peak stopping power by performing these adjustments during every scheduled oil change or tire rotation service. Consult your vehicle's service manual for specific torque settings and drum wear limits to guarantee maximum component longevity.
