The Comprehensive Guide On How To Assemble An AR-15 Lower Receiver

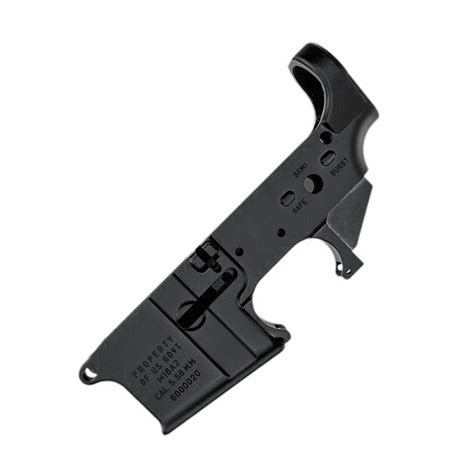

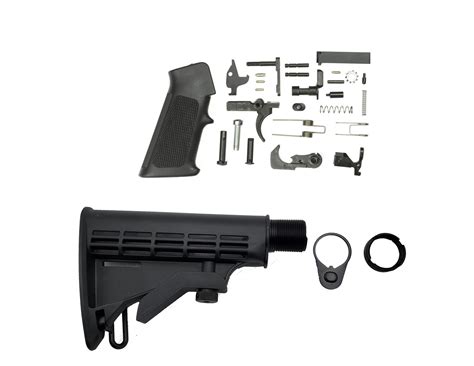

Assembling an AR-15 lower receiver requires installing the fire control group, buffer system, and furniture into a stripped lower using basic gunsmithing tools and adherence to precise mechanical tolerances. Success is measured by the correct tension of springs, proper alignment of detents, and the verified function of the safety selector and trigger group before the system is mated to an upper receiver.

Essential Preparation and Technical Requirements

Building a lower receiver is an exercise in fine motor control and mechanical patience. Before beginning, ensure your workspace is clean, well-lit, and cleared of any ammunition to maintain the highest standard of safety. You will be working with small, under-tensioned springs and detents that are prone to launching across the room; working inside a large clear plastic bag or a dedicated gunsmithing mat is highly recommended to contain these components.

• Essential Tools:

• Armorer’s wrench (for the castle nut).

• Set of roll pin punches (specifically 1/16, 3/32, and 1/8 inch).

• Nylon/brass tipped hammer.

• Bench block or a piece of dense wood with holes drilled to support the receiver.

• Needle-nose pliers and a flat-head screwdriver.

• Quality gun grease (e.g., AeroShell 33MS for the buffer tube threads) and CLP for lubrication.

• Estimated Benchmarks:

• Skill Level: Beginner to Intermediate.

• Duration: 60 to 90 minutes for a first-time builder.

• Compliance: Always ensure your serialized lower receiver is legally acquired and that the final build complies with all applicable local, state, and federal statutes regarding feature restrictions.

Procedural Workflow for Lower Receiver Assembly

Step 1: Installing the Bolt Catch

Position the stripped lower receiver on your bench block. Insert the bolt catch spring into the small hole on the left side of the receiver. Place the bolt catch plunger on top of the spring. Align the bolt catch onto the receiver, ensuring the spring and plunger remain seated. Using a roll pin punch, gently tap the bolt catch roll pin through the receiver ears until it is flush.

Pro-Tip: Use a piece of masking tape on the receiver surface surrounding the roll pin hole to prevent the punch from slipping and scratching the finish during the final taps.

Step 2: Magazine Release and Pivot Pin

Install the magazine release button spring into the hole on the right side of the receiver, then thread the magazine release catch into the receiver from the left side. Depress the button on the right until the catch protrudes enough to rotate it clockwise until it is flush with the receiver body. For the front pivot pin, insert the pivot pin spring and detent into the front lug hole. Use a pivot pin installation tool to hold the detent down while sliding the pivot pin into place.

Step 3: Trigger Guard and Fire Control Group

Install the trigger guard by securing the front roll pin first, then swinging the guard into position to secure the rear detent. Next, place the disconnector spring into the trigger, followed by the disconnector. Insert the trigger group into the receiver, aligning the pin holes, and tap the trigger pin into place. Repeat this process for the hammer, ensuring the hammer spring legs are oriented to provide upward tension on the floor of the receiver.

Warning: Never attempt to pull the trigger while the hammer is cocked unless the upper receiver is attached, as this can damage the sear or the receiver floor.

Step 4: Safety Selector and Pistol Grip

Insert the safety selector into the large circular hole on the left side of the receiver. Slide the pistol grip over the lower receiver’s grip tang. Place the safety detent spring inside the grip, followed by the safety detent (pointed end toward the selector). Carefully attach the grip to the receiver using the grip screw, ensuring the spring does not bind or kink during tightening.

Step 5: Buffer Tube and Stock Assembly

Apply a light coating of AeroShell 33MS grease to the buffer tube threads. Thread the castle nut onto the tube, followed by the receiver end plate. Screw the buffer tube into the receiver until it just covers the buffer retainer hole. Insert the buffer retainer and spring, then continue threading the tube until it secures the retainer. Tighten the castle nut firmly against the end plate using an armorer’s wrench. Finally, insert the buffer spring and buffer into the tube, then slide on your chosen stock.

Technical Specifications and Component Parameters

Troubleshooting Common Assembly Failures

• Issue: Safety Selector Will Not Move
• Root Cause: The safety detent is likely installed backward or the spring is kinked inside the pistol grip.
• Actionable Fix: Remove the pistol grip, verify the orientation of the detent (pointed side up), and ensure the spring is seated straight in the grip channel.
• Issue: Heavy or Gritty Trigger Pull
• Root Cause: Improper installation of the hammer spring or debris caught in the trigger pivot hole.
• Actionable Fix: Remove the hammer and trigger pins, clean the internal channels with a nylon brush, and verify the hammer spring legs are resting on the trigger pin, not the receiver floor.
• Issue: Buffer Retainer Binding
• Root Cause: The buffer tube is screwed in too far, preventing the retainer from moving freely.
• Actionable Fix: Back the buffer tube out by one quarter-turn until the retainer moves freely, then re-tighten the castle nut.

Frequently Asked Questions

What is the purpose of the castle nut?

The castle nut locks the buffer tube in its correct position and secures the end plate. Properly tightening it ensures the stock system remains stable during the high-impulse recoil cycle of the rifle.

Is a torque wrench mandatory for the castle nut?

While highly recommended to hit the 35-40 foot-pound specification, many experienced builders use a heavy-duty armorer's wrench and tighten the nut securely until it is tight against the end plate, ensuring the end plate tabs are staked to prevent loosening.

Can I install a trigger group without special tools?

Yes, basic punches and a small hammer are sufficient for the majority of the build. However, specialized trigger pin installation tools can make the process faster and reduce the risk of scratching the receiver.

What should I do if a spring launches during assembly?

This is a standard rite of passage for AR-15 builders. Always buy "oops kits" or spare parts packs containing extra detents and springs before starting your build to avoid project delays when parts inevitably disappear.

Optimize Your AR-15 Performance

Proper assembly is the foundation of a reliable, accurate firearm that performs under demanding conditions. Once your lower is fully functional, perform a thorough function check and proceed to mating it with a high-quality upper receiver to complete your build.
