How To Change Layer Height At Z In Ultimaker Cura: The Complete Professional Guide To Variable Layer Slicing

Altering layer height at a specific Z-coordinate in Ultimaker Cura can be achieved through automated Adaptive Layers or manual modifier meshes, while mid-print physical parameters are adjusted using the ChangeAtZ post-processing script. To ensure mechanical integrity, transition boundaries must respect your 3D printer's physical Z-axis step resolution (typically in 0.04mm steps) and hotend volumetric flow limits. Mastering these methods allows you to optimize print speeds on vertical walls while retaining ultra-fine detail on complex curves and shallow slopes.

Prerequisite Cura Setup and Hardware Calibration Requirements

Before executing advanced variable layer height strategies in Ultimaker Cura, you must establish a baseline of physical machine parameters and software settings. Slicing with dynamic layer heights changes the backpressure inside your hotend and alters the physical forces acting upon the extruded plastic. If your hardware is uncalibrated, these transitions will cause distinct visual banding, structural weaknesses, or extrusion failures.

To begin, you need to verify your printer's physical Z-step resolution. Most common Cartesian and Cartesian-style 3D printers utilize T8 lead screws with a 2mm pitch and 8mm lead, coupled with standard 1.8-degree stepper motors (200 physical steps per revolution). This setup yields a native full-step resolution of 0.04mm. To prevent the stepper motors from relying on microstepping to hold a vertical position—which leads to subtle vertical positioning errors and uneven layer heights—all manually defined layer heights must be multiples of 0.04mm. These are widely referred to as "magic numbers" (e.g., 0.08mm, 0.12mm, 0.16mm, 0.20mm, 0.24mm, 0.28mm).

Below is the preparation checklist required to successfully execute these configurations:

• Essential Slicing Software and Hardware Tools: Ultimaker Cura (version 5.0 or newer recommended for the enhanced Arachne slicing engine), a well-calibrated 3D printer, a digital caliper for physical height verification, and high-quality PLA, PETG, or ABS filament with a highly consistent diameter (tolerance of +/- 0.02mm or better).
• Mandatory Prerequisite Technical Standards: Known Z-axis lead screw step calculations, baseline extrusion multiplier (flow rate) calibrated for your specific material, and an established maximum volumetric flow limit for your hotend (measured in cubic millimeters per second).
• Project Benchmarks: Slicing configuration time requires approximately 10 to 15 minutes. Verification printing and visual calibration using a standardized 20mm step-test tower require an estimated duration of 45 to 60 minutes, utilizing minimal filament material.

Configuring Variable Layer Heights and Parametric Changes at Z in Cura

Ultimaker Cura offers multiple independent pathways to change how a model is sliced along the vertical Z-axis. Slicers cannot dynamically change physical layer heights arbitrarily on a single continuous horizontal plane; instead, they must adjust the spacing of the toolpaths as the Z-axis steps upward. Below are the three primary methods to execute this control: automated dynamic adjustment, manual spatial modifiers, and post-processing parameter injection.

Step 1: Activating and Configuring Adaptive Layers for Dynamic Z-Height Scaling

The Adaptive Layers feature in Cura is an automated algorithm that analyzes the slope of your model's geometry along the Z-axis. On steep vertical walls where stair-stepping is minimal, Cura increases the layer height to reduce print time. On shallow angles or highly detailed organic curves where stair-stepping is highly visible, Cura decreases the layer height to preserve surface finish.

1. Open Ultimaker Cura and load your 3D model onto the build plate.
2. Navigate to the Print Settings panel on the right side of the screen. Ensure your settings visibility is set to Advanced or Expert by clicking the hamburger menu icon.
3. Scroll down to the Experimental settings category.
4. Locate the checkbox for Use Adaptive Layers and toggle it to active.
5. Set your base Layer Height in the Quality section (e.g., 0.2mm). This serves as the baseline from which Cura will calculate variations.
6. Adjust the Adaptive Layers Maximum Variation setting. This value defines the maximum allowable deviation above and below your base layer height. For a base of 0.2mm, setting this to 0.08mm allows Cura to slice as thin as 0.12mm and as thick as 0.28mm.
7. Define the Adaptive Layers Variation Step Size. This must match your printer's physical step resolution. Set this value to 0.04mm to ensure all calculated layer heights land precisely on physical full-step increments of your Z-axis stepper motors.
8. Configure the Adaptive Layers Threshold. A lower value (e.g., 2.0 or lower) makes the algorithm highly sensitive to geometry changes, transitioning layer heights more frequently, while a higher value (e.g., 5.0) limits transitions to major geometric shifts.

Pro-Tip: When utilizing Adaptive Layers, always review the sliced model in the Preview tab. Change the color scheme dropdown from Material Color to Layer Thickness. This provides a clear, color-coded visual map of the physical layer heights applied across the height of your print.

Step 2: Using Modifier Meshes for Manual, Region-Specific Layer Height Selection

When you need exact, manual control over the precise Z-coordinate where the layer height changes—rather than relying on Cura's automated algorithms—you must utilize a modifier mesh. This technique allows you to define a specific volumetric zone where alternative slicing parameters are applied.

1. Import your primary model onto the Cura build plate.
2. Import a secondary simple geometric shape, such as a basic cube, which will act as your modifier volume. You can generate this directly in Cura using the Support Blocker tool or by loading a separate STL file of a primitive shape.
3. Select the modifier cube on the build plate, then locate the tool menu on the left side of the workspace. Click the Eraser icon, which represents the Mesh Type or Per-Model Settings panel.
4. Switch the setting from Normal Model to Modify Settings for Overlaps. Select the sub-option Select Settings.
5. In the search filter that appears, type Layer Height, select the checkbox next to it, and click Close.
6. The Layer Height setting will now appear directly inside the settings panel for your modifier cube. Enter your desired layer height for the target region (e.g., 0.12mm). Note that the global layer height set in your main profile will apply to all areas outside this modifier.
7. Scale and position the modifier cube using the translate tools. Ensure it completely envelops the entire horizontal cross-section of your primary model at the specific Z-height range where you want the finer or coarser layer height to apply.
8. Click Slice and navigate to the Preview screen to verify that the layer transitions align precisely with the boundaries of your modifier mesh.

Warning: Slicing multiple different layer heights within the same horizontal plane of a single print can lead to severe toolpath conflicts and slicing errors. Always ensure your modifier mesh spans the entire X and Y width of the model at the target Z-height, effectively creating a clean horizontal split in layer height along the Z-axis.

Step 3: Utilizing the ChangeAtZ Post-Processing Script for Parameter Tuning

While the physical layer height is locked during the initial slicing stage, you often need to alter active print parameters—such as extrusion temperature, print speed, fan speed, or flow rate—at the exact Z-height where your layer height changes. This is critical because transitioning from a thick layer to a thin layer drastically reduces backpressure in the nozzle, which can cause severe over-extrusion unless your flow rate or print speed is dynamically adjusted.

1. Navigate to the top menu bar in Cura and select Extensions, then hover over Post Processing, and click on Modify G-Code.
2. In the active script window, click the Add a script button and select ChangeAtZ from the dropdown menu.
3. Set the Trigger parameter. You can select either Height (mm) or Layer Number. To match a specific physical feature, selecting Height (mm) and inputting the exact vertical measurement (e.g., 15.0mm) is highly precise.
4. Determine if the change should apply to a single layer or persist for the remainder of the print. To apply a permanent change from that coordinate upward, ensure Apply To is set to Target Layer + Subsequent.
5. Locate the parameter check-boxes below. To adjust for a finer layer height transition, you may want to decrease your printing speed to preserve detail or slightly lower your hotend temperature to prevent heat creep in the low-flow zone. Toggle Change Speed and enter a new percentage (e.g., 80% of baseline).
6. To alter the flow rate to compensate for physical pressure changes inside the nozzle, check Change Flow and input an adjusted percentage (e.g., 98%).
7. Click Close to lock the script into the post-processing queue. A small red badge showing a numeric value will appear next to the Slice button, indicating that active G-code modification scripts are loaded.

Step 4: Slicing, G-code Inspection, and Validation

After configuring your adaptive layers, modifier meshes, or post-processing scripts, you must conduct a rigorous visual inspection of the generated toolpaths before exporting the file to your 3D printer.

1. Click the blue Slice button in the lower-right corner of the Cura interface.

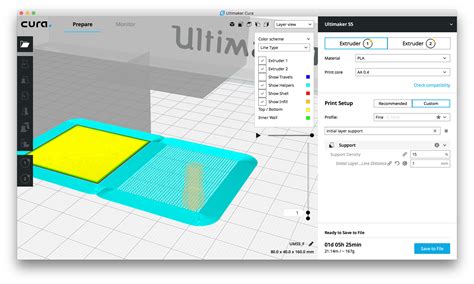

2. Once slicing is complete, click Preview to load the layer-by-layer simulation view.
3. Adjust the horizontal slider at the top of the viewport to view the toolpaths colored by Line Type, Feedrate, or Layer Thickness.
4. Use the vertical slider on the right side of the screen to scroll through the print heights layer-by-layer. Pay close attention to the exact transition point where the layer height changes.
5. Verify that the travel paths do not contain non-extrusion moves that could cause stringing at the transition layer, and check that the infill pattern successfully anchors into the regions with altered layer heights.
6. Save the G-code file to your local drive or send it directly to your printer via network connection.

Variable Layer Height Parameters and Volumetric Extrusion Thresholds

When transitioning layer heights mid-print, the physical volumetric throughput of your hotend changes dynamically. You must balance the relationships between layer height, extrusion width, printing speed, and hotend thermal capacity. The volumetric flow rate is calculated using the formula:

Volumetric Flow Rate (Q) = Extrusion Width (W) × Layer Height (H) × Feedrate / Print Speed (F)

To prevent extruder skips or severe under-extrusion when transitioning from fine layers to thick layers, use the standardized operational thresholds detailed in the following table:

Troubleshooting Variable Z-Height Slicing and Print Failures

Modifying layer heights along the Z-axis introduces mechanical and thermodynamic instability. When the printer transitions between different volumetric flow states, specific failures can manifest at the boundaries. Below are the primary real-world failure modes and their physical solutions.

Issue 1: Interlayer Delamination or Structural Splitting at the Transition Zone

• Root Cause: When transitioning from a very thin layer (e.g., 0.08mm) to a thick layer (e.g., 0.24mm), the plastic extruded at the thicker setting requires significantly more heat to melt completely. Because the nozzle thermal output remains constant, the filament is extruded slightly colder than required, causing poor thermal fusion to the ultra-thin layer below.
• Actionable Fix: Increase your base printing temperature by 5°C to 10°C, or inject a ChangeAtZ post-processing script at the transition coordinate to elevate the hotend temperature by 5°C exactly as the layer height increases. Alternatively, reduce the print speed at the transition point by 20% to allow the filament more residence time inside the heater block.

Issue 2: Heat Creep and Nozzle Clogging during Low-Layer-Height Segments

• Root Cause: When printing highly detailed segments with extremely thin layer heights (e.g., 0.08mm), the volumetric flow rate drops below 1.5 mm³/s. Because the filament moves through the melt zone incredibly slowly, heat rises up the filament strand into the cold side of the break (heat creep), causing the plastic to swell prematurely and clog the hotend.
• Actionable Fix: Elevate the cold-end cooling fan speed to 100%. Decrease the print temperature slightly for the thin segment using a ChangeAtZ script to lower the thermal energy in the heater block. Ensure your retraction distance is minimized (typically under 1.0mm for direct-drive extruders, or under 5.0mm for Bowden setups) to prevent pulling molten plastic into the cold-end thermal transition zone.

Issue 3: Cura Slicing Failures or Ignored Modifier Mesh Settings

• Root Cause: When overlapping a modifier mesh with a target model, Cura may ignore the custom layer height if the modifier's geometry does not completely cross the physical layer boundaries or if the global slicing engine detects coordinate conflicts. This frequently happens if the global layer height and the modified layer height are not mathematically aligned to the same step boundaries.
• Actionable Fix: Ensure both the global layer height and the modifier's layer height are multiples of your physical Z-step resolution (0.04mm). Position the modifier mesh so it extends past the outer perimeter walls of the target model along the X and Y axes, and ensure its bottom and top faces are aligned to physical layer-height steps in the coordinate system.

Issue 4: Visible Banding or Bulging at the Z-Script Transition Point

• Root Cause: Injecting parameters mid-print via the ChangeAtZ script can cause sudden pressure spikes inside the nozzle. If the flow rate or printing speed changes abruptly without a corresponding change in extrusion pressure, a physical bulge or visible ring of excess plastic will form around the entire perimeter of the model at that specific layer.
• Actionable Fix: Implement a gradual step transition rather than a sudden change. If using ChangeAtZ, use the ChangeAtZ Advanced script variations to ramp speed or flow changes over a span of 3 to 5 layers rather than a single, instantaneous layer transition. Ensure your extruder tension arm is adjusted correctly to prevent filament slipping during rapid volumetric flow fluctuations.

Frequently Asked Questions

Can I use the ChangeAtZ script to directly change the physical layer height mid-print?

No, the ChangeAtZ post-processing script cannot alter the physical sliced thickness of layers in G-code because G-code is a static geometric set of coordinates generated during the slicing phase. The script is designed exclusively to adjust hardware parameters like temperature, speed, and flow at specific coordinates; to alter physical layer heights, you must use Adaptive Layers or custom Modifier Meshes before slicing.

How do I calculate the correct layer height step size for my printer's lead screws?

Calculate your step size using your printer's lead screw pitch and motor step angle. For a standard 1.8-degree stepper motor (200 steps per revolution) connected to a T8 lead screw with an 8mm lead, one full rotation moves the Z-axis 8mm, meaning each physical full step equals exactly 0.04mm (8 divided by 200). Therefore, to prevent microstepping errors, your step size should always be configured to 0.04mm or its direct multiples.

Why does Cura disable some settings when I apply a modifier mesh to change layer height?

Cura restricts certain settings within modifier meshes because physical geometry parameters—such as layer height, initial layer line width, and global retraction settings—impact the entire toolpath generation across the whole horizontal plane. If Cura allowed arbitrary, unaligned layer heights in localized mesh regions on the same layer, the nozzle would physically collide with previously extruded lines on adjacent parts of the print.

What is the maximum safe layer height relative to my nozzle diameter?

As an industry standard, your maximum layer height should never exceed 75% to 80% of your physical nozzle diameter. For a standard 0.4mm nozzle, the maximum safe physical layer height is 0.3mm to 0.32mm; exceeding this limit prevents the nozzle flat (tip chamfer) from properly compressing the extruded bead of plastic against the layer below, resulting in poor adhesion, cylindrical extrusions, and mechanical part failure.

Will using variable layer heights affect the structural integrity of functional parts?

Yes, variable layer heights directly alter the structural properties of a printed component. Thinner layers increase the overall number of interlayer boundaries, which can increase layer adhesion and density but may also introduce more shear planes. Thicker layers cool more slowly, allowing polymer chains to cross-link more thoroughly, which often increases impact resistance and tensile strength along the vertical axis at the cost of surface resolution.

Elevate Your Additive Manufacturing Workflows

Optimizing your slicing profiles with precise variable layer configurations significantly reduces manufacturing cycle times while maintaining high-fidelity surface finishes on critical structural components. Implement these advanced Cura techniques to streamline your engineering workflows and unlock the true mechanical potential of your additive manufacturing hardware.
