Diagnostic Guide: How To Check For A Leaking Fuel Injector

A leaking fuel injector disrupts precise air-fuel ratios, leading to hard hot starts, fuel odor, engine misfires, and potential catastrophic engine hydrolock. Confirming a leak requires systematically executing a fuel pressure decay test, performing a visual injector rail hold-down inspection, and analyzing long-term fuel trims for rich-running conditions. Standard benchmark protocol mandates that a healthy port fuel injection system must maintain line pressure within 3 to 5 PSI of maximum system operating pressure for at least 15 minutes after the fuel pump cycles off.

Pre-Diagnostic Safety & Tool Assembly

Diagnosing a fuel injector leak requires handling highly flammable fuel under significant system pressure. Before unbolting components or tapping into fuel lines, establish a clean, well-ventilated workspace away from open flames, pilot lights, or spark sources. Modern fuel systems operate anywhere from 35 PSI in legacy port fuel injection setups to over 2,000 PSI in modern Gasoline Direct Injection (GDI) systems. Working safely and efficiently demands specific diagnostic tools and protective measures.

• Essential Tools & Diagnostic Equipment: Mechanical fuel pressure gauge kit with standard Schrader adapters and quick-connect fittings, digital multimeter (DMM) with sharp probe tips, automotive mechanic's stethoscope, OBD2 diagnostic scan tool featuring live data streaming, set of clear glass or fuel-safe measuring containers, fuel line disconnect tools, chemical-resistant nitrile gloves, eye protection, and a Class B fire extinguisher.
• Prerequisite Knowledge & Safety Standards: Mastery of fuel system depressurization procedures (such as pulling the fuel pump relay and idling the engine until it starves), adherence to SAE J1681 fuel system safety protocols, and awareness of high-pressure petrol hazard mitigation.
• Budget & Duration Benchmarks: A complete diagnostic evaluation takes between 1 and 2.5 hours depending on engine manifold design. Equipment expenses range from $40 for entry-level pressure gauges to $200+ for professional diagnostic scan tools.

Diagnostic Workflow for Identifying Injector Fuel Leaks

Step 1: Depressurize the System and Connect the Pressure Gauge

Before attaching test equipment, relieve residual line pressure to prevent hazardous fuel spray. Locate the fuel pump relay or fuse in the main under-hood power distribution box. With the engine idling, pull the relay or fuse and allow the engine to run until it starves and stalls. Crank the starter motor for an additional 5 seconds to purge remaining line pressure. Turn the ignition off.

Locate the fuel pressure test port (Schrader valve) on the fuel rail. If your engine lacks a Schrader port, install an inline T-fitting adapter between the main fuel supply line and the fuel rail connection point. Thread the high-pressure hose of your diagnostic fuel gauge onto the fitting, ensuring the internal schrader depressor pin is fully seated and the mechanical bleed-off tube is routed safely into an approved container.

Warning: Gasoline Direct Injection (GDI) systems utilize a dedicated high-pressure mechanical pump driven by the camshaft. Never attempt to loosen or tap into high-pressure GDI fuel lines without verifying via scan tool live data that high-side rail pressure has dropped to atmospheric levels.

Step 2: Perform a Fuel Pressure Hold and Decay Test

Reinsert the fuel pump fuse or relay. Turn the ignition key to the ON position (Engine Off) for 3 seconds to command the ECM to cycle the fuel pump, then turn it OFF. Repeat this key-cycle process two to three times to fully prime the fuel system and purge trapped air bubbles from the rail. Observe the peak pressure reading on the mechanical gauge dial and cross-reference it against OEM factory specifications (typically 35 to 65 PSI for port fuel systems).

Once maximum pressure is established, start a digital timer. Monitor the gauge needle continuously for 15 to 30 minutes. A healthy system will hold static pressure with minimal drop-off, losing no more than 3 to 5 PSI over a 15-minute interval. If the pressure drops rapidly—losing 10 to 20 PSI within 60 seconds—a leak is definitively present in the system.

Pro-Tip: A rapid pressure drop indicates one of three failure points: a leaking fuel injector nozzle, a failing internal fuel pump check valve, or a ruptured diaphragm in the fuel pressure regulator. To isolate the injectors, use a fuel line clamp to pinch off the flexible rubber fuel supply line immediately after priming. If the pressure continues to drop on the gauge while the supply line is clamped, the pressure loss is happening downstream at the fuel rail, confirming an injector leak or regulator failure.

Step 3: Conduct a Visual Fuel Rail Lift Leak-Down Inspection

To directly observe which individual injector is leaking, perform a visual rail lift test. Unbolt any retaining brackets, vacuum lines, and electrical connectors securing the fuel rail to the intake manifold. On engines with upper intake manifolds covering the fuel rail, remove the plenum to gain clear physical access.

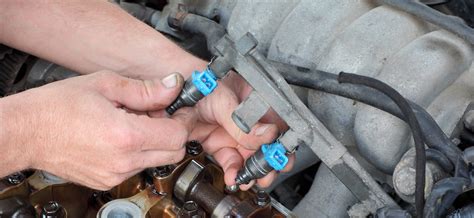

Carefully lift the fuel rail upward with all injectors remaining clipped into the rail assembly. Keep the flexible supply lines securely connected. Suspend the rail slightly elevated above the intake runner ports. Wipe the nozzle tip of every injector thoroughly dry using clean shop towels. Position clear glass catch cups or clean white paper towels directly beneath each injector tip.

Cycle the ignition key to the ON position (Engine Off) to fully pressurize the fuel rail. Do not crank the starter motor. Inspect the nozzle tips closely for 5 minutes under full static system pressure. A properly sealed fuel injector will demonstrate absolute zero fluid weeping. If droplets form, accumulate, and drip into the catch container, that specific injector has suffered an internal seat or pintle seal failure and must be replaced.

Warning: Never crank or start the engine while the fuel rail is unbolted and suspended over the open intake ports. High-volume atomized fuel spraying near open electrical connections or hot ignition components poses a severe explosion and fire hazard.

Step 4: Analyze OBD2 Live Data and Fuel Trim Metrics

Modern Engine Control Modules (ECMs) constantly adjust fuel delivery based on feedback from upstream oxygen/air-fuel ratio sensors. A leaking fuel injector continuously drips unmetered fuel into its respective cylinder, creating an excessively rich air-fuel mixture.

Connect an OBD2 scan tool to the vehicle’s diagnostic port, start the engine, and allow it to reach normal operating temperature (typically 180°F to 210°F / 82°C to 99°C). Access live parameter IDs (PIDs) and evaluate Short-Term Fuel Trim (STFT) and Long-Term Fuel Trim (LTFT). A leaking injector forces the ECM to subtract fuel to balance the rich condition, resulting in significant negative fuel trim corrections.

• Look for LTFT values shifting strongly negative, typically between -12% and -25% at idle speed.
• Check if negative fuel trims clear up or move back toward 0% when engine speed increases to 2,500 RPM (increased airflow dilutes constant idle fuel dripping).
• Scan for pending or active Diagnostic Trouble Codes (DTCs), such as P0172/P0175 (System Too Rich Bank 1/Bank 2) or cylinder-specific misfire codes like P0301, P0302, etc.

Step 5: Test Electrical Resistance and Mechanical Solenoid Action

A fuel injector can leak mechanically due to debris or a worn seat, or it can stick open electrically due to an internal short circuit in the coil windings.

1. Turn off the ignition and disconnect the electrical harness plug from the suspect fuel injector.
2. Set a digital multimeter to the low-resistance Ohms ($\Omega$) scale.
3. Touch the multimeter test leads directly across the two male terminal pins inside the injector's electrical socket.
4. Compare the resistance reading to manufacturer specifications. Standard high-impedance fuel injectors typically measure between 11.0 and 18.0 Ohms at room temperature (68°F / 20°C). Low-impedance injectors measure between 1.0 and 4.5 Ohms.
5. Touch one test probe to an injector terminal pin and the other to a clean engine chassis ground. The meter should display an open circuit (infinite resistance). Any continuity to ground confirms a shorted internal coil that can cause erratic pintle hold-open behavior.
6. Reconnect the injector harness, start the engine, and place the metal probe tip of an automotive stethoscope against the body of the injector. Listen for a sharp, crisp, rhythmic metallic clicking sound. A dull, slurred, or absent click indicates mechanical sticking or solenoid binding.

Fuel Injector Testing Parameters & Diagnostic Comparison

Evaluating system behavior against standardized engineering parameters ensures precise diagnostic conclusions. The following table outlines key performance metrics and thresholds across common injection architectures:

Diagnostic Anomalies & Advanced Field Remedies

Testing fuel systems can produce confusing field symptoms when secondary components fail simultaneously. Use these troubleshooting remedies for complex diagnostic scenarios:

• Scenario: System experiences rapid pressure decay, but visual rail lift test yields zero leaking injectors.




  • Root Cause: A failing fuel pump internal check valve is allowing fuel to siphon backward into the gas tank, or the fuel pressure regulator diaphragm has ruptured, bypassing fuel directly into the engine intake manifold via its vacuum reference line.
  • Actionable Fix: Inspect the vacuum hose attached to the mechanical fuel pressure regulator. If raw liquid gasoline is present inside the rubber vacuum line, replace the pressure regulator immediately. If the vacuum line is completely dry, install an inline check valve near the fuel pump module outlet or replace the fuel pump assembly.

• Scenario: Vehicle exhibits prolonged cranking during hot engine restarts, accompanied by a heavy gasoline smell from the exhaust tailpipe.




  • Root Cause: An injector pintle is failing to seat completely when hot. Engine heat soak lowers fuel viscosity and expands metal housing components, causing thermal clearance leakage that floods the intake port while parked.
  • Actionable Fix: Perform the pressure decay test while the engine is at full operating temperature (190°F / 88°C). If pressure drops rapidly only when hot, pull the spark plugs immediately. The cylinder with a wet, fuel-soaked plug electrode pinpoints the exact thermally failing injector. Replace the injector and change the engine oil to eliminate fuel dilution.

• Scenario: Live data shows severe negative long-term fuel trims (-22%) on Bank 1, but cylinder misfire counters show equal distributions across all cylinders.




  • Root Cause: Microscopic contamination or varnish buildup on an injector pintle ball preventing full mechanical closure, or a shorted injector driver circuit inside the Engine Control Module holding an injector open longer than intended pulse-widths.
  • Actionable Fix: Connect an oscilloscope or back-probe a multimeter with Duty Cycle measurement to the injector control wire (ground side). Verify that the ECM command signal drops cleanly to zero volts between injection cycles. If the duty cycle signal is correct but the cylinder runs rich, perform an off-car ultrasonic cleaning and flow bench test, or replace the entire fuel injector set.

Frequently Asked Questions

What are the primary symptoms of a leaking fuel injector?

The most common symptoms include hard starting (especially when the engine is warm), engine misfires, rough idle quality, a strong odor of raw gasoline around the vehicle, reduced fuel economy, and strong negative long-term fuel trim readings on a diagnostic scan tool.

Can a leaking fuel injector cause severe engine damage?

Yes, an uncorrected leaking fuel injector can lead to catastrophic engine damage. Excess fuel drips into the cylinder, washing away protective oil films from cylinder walls, which causes accelerated piston ring and bore wear. In severe cases, large amounts of liquid fuel fill the combustion chamber while parked, causing a hydraulic lock (hydrolock) that bends connecting rods when attempting to crank the engine.

How do I know if the fuel leak is internal or external?

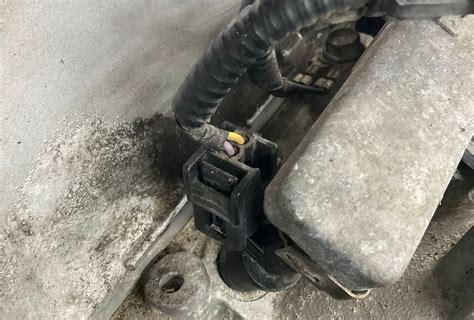

An external leak manifests as visible wet fuel dripping from the fuel rail body, injector O-rings, or fuel line quick-connects onto the engine block, creating an immediate fire hazard. An internal leak occurs inside the engine intake runner or cylinder chamber, where fuel leaks past the internal needle valve, causing rich combustion conditions without visible fluid leaking onto outer engine surfaces.

Is it necessary to replace all fuel injectors if only one is leaking?

While replacing a single failing injector solves the immediate leak, replacing injectors as a complete balanced set is recommended on vehicles with over 100,000 miles. Injectors experience equal duty cycles over time; if one internal seal or coil fails from age and thermal degradation, remaining injectors on the same rail are likely near the end of their operational lifespan.

Will a leaking fuel injector trigger a Check Engine Light?

A leaking fuel injector typically triggers a Check Engine Light. The Engine Control Module flags diagnostic trouble codes such as P0172 or P0175 (System Too Rich) when fuel trims compensate beyond negative limits, or cylinder-specific misfire codes (P0300 through P0308) due to incomplete combustion from rich air-fuel mixture drowning.

Professional Fuel System Care and Diagnostics

Accurately diagnosing a leaking fuel injector prevents costly secondary damage to catalytic converters, oxygen sensors, and internal engine rotating assemblies. Implementing precise pressure drop tests, rail lift inspections, and live scan tool fuel trim analyses guarantees an efficient repair process that restores factory performance and fuel efficiency.
