How To Clean An IAC: Step-by-Step Idle Air Control Valve Maintenance Guide

A dirty Idle Air Control (IAC) valve disrupts engine idling by blocking the calibrated bypass channel that regulates airflow around a closed throttle plate. Restoring proper idle stability requires removing the electromechanical actuator, washing carbon deposits away with a specialized solvent, and inspecting the pintle and O-ring seal before reinstallation.

Pre-Operation & Equipment Checklist

Proper preparation ensures efficient execution while preventing damage to sensitive powertrain components. The IAC valve manages engine speed during cold starts and electrical accessory loads by metering bypass air. Carbon buildup from blow-by gases and PCV systems gradually chokes this passage, causing erratic idling, engine stalling, or surging RPMs.

• Essential Tools & Materials:


  • Socket set (typically 8mm or 10mm, plus extensions)
  • Phillips or Torx screwdrivers (depending on vehicle fastener design)
  • Dedicated oxygen-sensor-safe throttle body cleaner or specialized IAC cleaner
  • Clean microfiber shop rags
  • Nylon-bristle detail brush or soft-bristled toothbrush
  • New replacement IAC gasket or O-ring
  • Safety glasses and nitrile gloves
• Prerequisite Knowledge & Standards:


  • Battery disconnection is mandatory to prevent electrical shorts and computer fault code storage.
  • Never submerge the entire IAC valve housing in liquid cleaner, as solvent ingress into the internal electric solenoid coil ruins the unit.
• Time & Cost Benchmarks:


  • Estimated duration: 30 to 45 minutes.
  • Budget: 5 to 10 dollars for a can of cleaner and a new gasket.

Execution Workflow: Removing, Cleaning, and Testing the Valve

Step 1: Disconnect Power and Isolate the Component

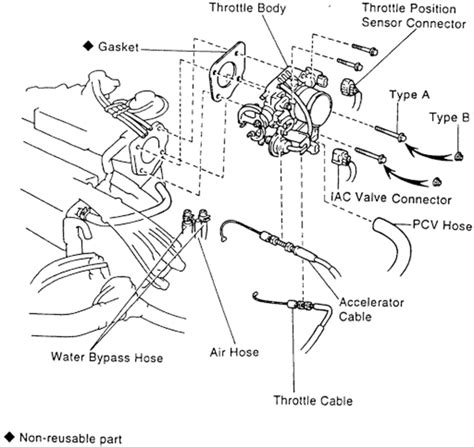

Locate the Idle Air Control valve, which is typically bolted directly onto the throttle body casting or the intake plenum near the throttle plate. Press the locking tab on the electrical wiring harness connector and gently pull to detach it from the IAC solenoid housing. Loosen and remove the mounting fasteners holding the IAC valve in place, taking care not to drop bolts into the engine bay.

Warning: Always disconnect the negative battery terminal before servicing electrical components to prevent triggering permanent diagnostic trouble codes (DTCs) in the powertrain control module (PCM).

Step 2: Extract and Inspect the Valve Assembly

Carefully pull the IAC valve straight off its mounting surface to avoid bending or shearing the delicate tapered pintle shaft. Discard the old paper gasket or rubber O-ring seal, as reusing crushed or flattened sealing elements will cause vacuum leaks. Visually inspect the metal housing for heavy, baked-on carbon deposits around the pintle tip, the internal spring mechanism, and the matching bypass port on the throttle body.

Step 3: Dissolve Carbon Residue with Safe Solvents

Hold the IAC valve with the electrical connector pointing upward to prevent cleaning chemicals from draining down into the internal solenoid winding. Generously spray oxygen-sensor-safe throttle body cleaner onto the carbon-fouled pintle and into the internal air passage chambers. Allow the chemical solvent to penetrate and soften the carbon varnish for two to three minutes without letting the electrical housing get soaked.

Pro-Tip: Never manually force, push, or twist the pintle tip of a stepper-motor-style IAC valve, as internal worm gears will strip instantly, rendering the part completely useless.

Step 4: Scrub and Polish Internal Surfaces

Gently agitate the softened carbon deposits using a nylon-bristle detail brush or a soft toothbrush, scrubbing away all black soot and gum buildup. Wipe the surfaces clean with a dry microfiber shop towel, repeating the solvent application and wiping cycle until the metal bore and pintle tip shine like new. Inspect the internal spring movement to ensure the pintle moves freely under its spring load without mechanical binding.

Step 5: Reassemble and Perform an Idle Relearn Procedure

Clean the mating surface on the throttle body with a rag dampened with cleaner to remove residual gasket material and carbon debris. Install a brand-new gasket or O-ring onto the IAC valve flange, align the mounting holes, and torque the retaining fasteners evenly to factory specifications. Reconnect the wiring harness securely, reattach the negative battery terminal, and perform the manufacturer-specific idle relearn procedure by letting the engine reach normal operating temperature with all accessories turned off.

Technical Comparison of Intake Maintenance Methods

Troubleshooting Common Maintenance Complications

• Symptom: Engine idle remains abnormally high (1,500+ RPM) after reinstalling the cleaned valve.


  • Root Cause: A vacuum leak caused by reusing an old, flattened gasket, pinched O-ring, or failing to torque the mounting screws evenly.
  • Actionable Fix: Remove the valve, discard the compromised seal, install a new gasket, and torque fasteners to exact factory foot-pound or inch-pound specifications.
• Symptom: Engine idle surges up and down repeatedly (idle hunting) after cleaning.


  • Root Cause: The powertrain control module has not calibrated its idle parameters to the newly restored, unrestricted airflow volume.
  • Actionable Fix: Complete the vehicle-specific idle relearn sequence, which usually involves idling the engine for ten minutes with the air conditioning running in park or drive.
• Symptom: The IAC valve fails to respond, and the vehicle stalls immediately when lifting off the accelerator pedal.


  • Root Cause: Internal electrical winding short circuit or solvent intrusion into the solenoid motor during the cleaning process.
  • Actionable Fix: Test the electrical resistance across the IAC terminals with a multimeter; if resistance falls outside factory specifications, replace the unit.

Frequently Asked Questions

Can I use standard brake cleaner or carburetor cleaner to clean an IAC valve?

Avoid standard chlorinated brake cleaner or harsh carburetor cleaners, as these aggressive solvents can degrade plastic housings, damage rubber internal seals, and strip protective coatings. Always select a dedicated, oxygen-sensor-safe throttle body cleaner that leaves no residue behind.

How often should I clean the idle air control valve?

Cleaning the IAC valve is typically not required on a scheduled maintenance interval unless symptoms appear. Most technicians recommend inspecting and cleaning the valve every 50,000 miles or whenever you perform a thorough throttle body service.

What are the primary symptoms of a failing or dirty IAC valve?

Common warning signs include engine stalling when coming to a stop, rough idling when the engine is cold, fluctuating RPMs while sitting at a traffic light, or failure of the engine to idle at all without keeping your foot slightly pressed on the gas pedal.

Do I need to reset the computer after cleaning the IAC valve?

While basic cleaning does not always require a computer reset, disconnecting the negative battery terminal clears long-term fuel trims and forces the engine computer to relearn baseline idle parameters instantly. This prevents temporary idle surging after reassembly.
