How To Clean A Thermocouple For Reliable Appliance Performance
A contaminated thermocouple insulates its junction from thermal energy, generating a weak millivolt signal that causes safety valves to shut off prematurely. Restoring reliable operation requires systematic safety isolation, mechanical carbon removal, fine-grit abrasion, and post-cleaning electrical verification to confirm correct output voltage.
Pre-Procedure Planning and Technical Preparation

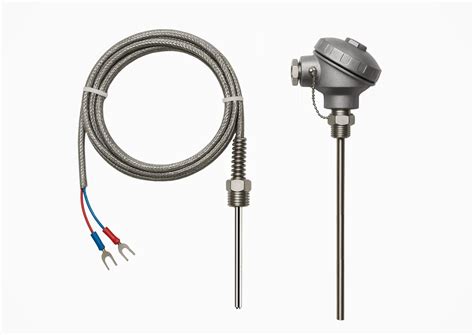

A thermocouple functions by joining two dissimilar metals, which creates a small voltage differential (the Seebeck effect) proportional to the temperature gradient when exposed to a pilot flame. Over time, incomplete combustion, soot accumulation, grease, and oxidation form a dielectric layer over the sensing probe. This layer blocks heat transfer and impedes electrical continuity, resulting in frequent pilot light outages on gas water heaters, furnaces, and commercial cooking ranges.
Successfully servicing this component requires a dedicated toolkit and adherence to standard safety protocols. Before starting any work involving gas appliances, you must shut off the main gas supply valve and allow the pilot assembly to cool completely to ambient room temperature. Handling a hot probe risks severe thermal burns and structural damage to the delicate copper capillary tubing.
- Essential Equipment and Materials:
- Fine-grit emery cloth (400 to 600 grit) or a non-metallic Scotch-Brite scrubbing pad
- Soft, clean microfiber cloth or lint-free shop towel
- High-purity isopropyl alcohol (91 percent concentration or higher)
- Multimeter capable of measuring millivolts (DCmV scale)
- Open-end wrench set (typically 3/8-inch or 7/16-inch for the safety valve connection)
- Needle-nose pliers for tight assemblies
- Mandatory Standards and Safety Metrics:
- All gas fittings must be checked for leaks using an approved bubble solution or electronic combustible gas detector upon reassembly.
- Open-circuit millivolt output for a standard Type K or standard millivolt gas thermocouple should read between 25 and 30 millivolts when heated, dropping below 12 to 15 millivolts upon flame extinguishment.
- Project Scope and Time:
- Estimated duration: 20 to 30 minutes.
- Estimated budget: Under $5 if cleaning supplies are already on hand, or $10 to $20 if a replacement thermocouple is ultimately required.
Step-by-Step Thermocouple Restoration Workflow
Step 1: Isolate Utilities and Access the Pilot Assembly
Turn off the gas control valve, switching it from the "Pilot" or "On" position to the "Off" position, and shut off any upstream manual gas shut-off valves feeding the appliance. Remove any exterior access panels, burner doors, or shielding shields that obstruct direct visual and physical access to the pilot burner assembly. Take a digital reference photograph of the wiring and bracket arrangement before disassembling anything to ensure proper re-installation alignment.
Warning: Never use liquid water or commercial household cleaners on an active gas control valve or unsealed electrical components. Moisture intrusion can ruin gas valve solenoids and create corrosion hazards.
Step 2: Disconnect and Extract the Thermocouple Probe

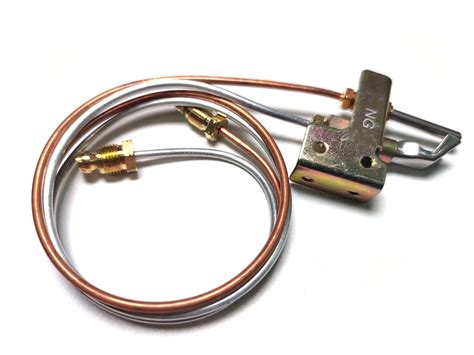

Locate the threaded brass nut where the thermocouple copper tubing connects to the gas control valve safety magnet unit. Using an open-end wrench, gently loosen this rear connection counterclockwise until it spins free by hand, taking care not to bend or kink the soft copper capillary tube. Next, loosen any retaining bracket screw or spring clip holding the active tip of the thermocouple adjacent to the pilot burner head, and carefully slide the probe out of its mounting bracket.
Step 3: Inspect the Sensing Tip and Clean Contaminants
Examine the metal tip of the thermocouple for physical defects, such as deep pitting, hairline cracks, blistering, or excessive metal erosion caused by flame impingement. If the tip is structurally sound, wrap a strip of fine-grit emery cloth around the metal sensing bulb and gently rotate it to abrade away carbon buildup, soot, and white oxidation layers. Continue polishing until the base metal exhibits a clean, bright, metallic sheen without scratching or thinning the metal wall.
Pro-Tip: Avoid using coarse sandpaper (below 300 grit) or steel wool, as coarse abrasives leave deep grooves that accelerate future carbon accumulation and speed up high-temperature metal oxidation.
Step 4: Degrease and Clean the Probe Surface
Pour a small amount of high-purity isopropyl alcohol onto a clean microfiber cloth and thoroughly wipe down the abraded thermocouple tip and surrounding bracket. This step dissolves any residual oils from human fingertips or airborne grease film that would otherwise rapidly carbonize upon reignition. Allow the alcohol to evaporate completely for at least two minutes before reassembling the components.
Step 5: Reinstall the Assembly and Verify Millivolt Output
Slide the cleaned thermocouple tip back into its mounting bracket, secure the retaining clip, and hand-thread the rear brass nut into the safety valve port before snugging it gently with a wrench—avoiding over-torque, which can strip the soft brass threads. Turn the gas supply back on, relight the pilot light per the manufacturer instructions, and hold the control valve depressed for 60 seconds. Connect your multimeter leads to the thermocouple terminal block and outer casing to verify that the closed-circuit output reads stable above 15 millivolts, confirming successful restoration of the component.
How to Clean a Thermocouple: Step‑by‑Step Guide | nphcda.gov.ng
Technical Parameter Comparison for Thermocouple Maintenance
| Parameter | Surface Oxidation Layer | Normal Operating State | Terminal Failure State |
|---|---|---|---|
| Surface Appearance | Dull gray, black soot, or flaky white crust | Bright, uniform metallic sheen | Pitted, blistered, or structurally thinned |
| Open-Circuit Voltage | 5 mV to 12 mV (Insufficient for valve hold) | 25 mV to 30 mV (Robust holding power) | 0 mV to 4 mV (Total electrical breakdown) |
| Flame Response Time | Slow drop-off (exceeding 90 seconds) | Fast drop-off (30 to 60 seconds) | Instant or erratic valve drop-out |
| Corrective Action | Mechanical abrasion and alcohol wipe | Routine annual preventive inspection | Complete component replacement |
Troubleshooting Common Pilot and Thermocouple Failures
- Root Cause: The pilot flame stays lit while the reset button is depressed, but the main burner shuts down the moment the button is released.
- Actionable Fix: The millivolt current is failing to reach the magnetic safety valve holding coil. Clean the thermocouple tip thoroughly with fine-grit emery cloth, check that the pilot flame completely envelops the top third of the probe, and ensure the rear brass connection is finger-tight plus a quarter-turn.
- Root Cause: The pilot flame burns yellow, lazy, and orange, rapidly re-coating the newly cleaned thermocouple tip in heavy black soot.
- Actionable Fix: Primary aeration ports on the pilot burner are clogged with dust or spider webs. Shut off the gas, remove the pilot burner assembly, and clear the air intake orifices using compressed air and a fine wire brush.
- Root Cause: The thermocouple has been thoroughly cleaned and polished, yet the multimeter still reads zero millivolts during flame exposure.
- Actionable Fix: The internal dissimilar metal junction has suffered an open-circuit fracture due to thermal fatigue. Discard the old unit and install a new OEM-specified thermocouple matched to the appliance's precise thread pitch and length requirements.
Frequently Asked Questions
Can I clean a thermocouple with standard household vinegar or baking soda?
No, liquid solutions like vinegar and abrasive pastes like baking soda can leave behind moisture and chemical residues that accelerate high-temperature oxidation and pit the base metal. Stick to dry fine-grit emery cloth and high-purity isopropyl alcohol for safe, residue-free restoration.
How do I know if my thermocouple needs cleaning versus replacement?
If the thermocouple tip looks dull, black, or sooty and returns to normal millivolt output after being abraded and cleaned, it simply requires maintenance. If the metal tip is warped, cracked, deeply pitted, or yields zero millivolts despite thorough cleaning, the internal junction has failed and the part must be replaced.
Why does a dirty thermocouple cause the pilot light to go out?
A layer of soot and oxidation acts as a thermal insulator, preventing the pilot flame's heat from reaching the junction of the two dissimilar metals inside the probe. Without adequate heat, the thermoelectric voltage drops below the threshold required to keep the magnetic safety valve open, tripping the safety shutdown mechanism.
Is it safe to clean a thermocouple without turning off the gas supply?
Never perform maintenance on a gas appliance without shutting off the main gas supply valve and extinguishing all surrounding ignition sources. Working around live gas lines presents severe explosion, fire, and asphyxiation hazards that jeopardize personal safety.
