How To Correct An Underbite: Clinical Strategies For Class III Malocclusion

Correcting an underbite, or Class III malocclusion, requires a multi-phase orthodontic or surgical approach to realign the mandibular and maxillary arches. Clinical success is predicated on early cephalometric analysis to differentiate between skeletal discrepancies and dental misalignment, often utilizing palatal expanders, protraction face masks, or orthognathic surgery to achieve a functional Steiner ANB angle of 2 to 4 degrees.

Clinical Assessment and Orthodontic Planning

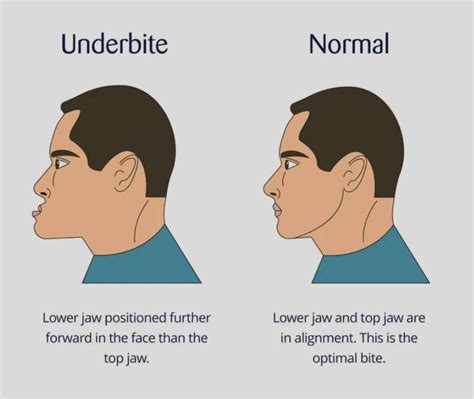

Before initiating treatment for an underbite, a comprehensive diagnostic workup is mandatory to determine the etiology of the malocclusion. An underbite occurs when the lower teeth protrude past the upper teeth, which may result from maxillary hypoplasia (underdeveloped upper jaw), mandibular prognathism (overdeveloped lower jaw), or simple dental tipping.

The planning phase involves gathering quantitative data to map the craniofacial structure. Orthodontists utilize specific metrics, such as the Wits appraisal and the ANB angle (Sella-Nasion-A point vs. Sella-Nasion-B point), to measure the horizontal relationship of the jaws. A negative ANB angle typically indicates a skeletal Class III relationship requiring more invasive intervention than a purely dental misalignment.

Diagnostic and Prerequisite Checklist

• Imaging Requirements: Digital panoramic X-rays (orthopantomogram), lateral cephalometric X-rays for bone measurement, and 3D Cone Beam Computed Tomography (CBCT) for complex skeletal cases.
• Intraoral Records: High-definition digital scans (iTero or similar) or PVS impressions to create 3D dental models.
• Mandatory Biological Standards: Absence of active periodontal disease, minimum 70% alveolar bone support, and completion of necessary restorative work (fillings/root canals) prior to force application.
• Budget and Duration Benchmarks: Early interceptive treatments range from $2,500 to $5,000 (12–18 months), while adult surgical cases may exceed $20,000 to $40,000 including hospital fees (24–36 months).

Clinical Workflow for Underbite Correction

The correction of an underbite follows a tiered progression based on the patient's age and the severity of the skeletal discrepancy. Because jaw growth typically ceases in the late teens, the window for non-surgical skeletal modification is narrow.

Step 1: Differential Diagnosis and Cephalometric Analysis

The practitioner must first identify if the underbite is skeletal or dental. In a skeletal underbite, the jaw bones themselves are misaligned; in a dental underbite, the teeth are angled incorrectly while the jaws are positioned normally.

1. Calculate the ANB angle from a lateral cephalogram. A positive value of 2° is ideal; negative values suggest a Class III skeletal pattern.
2. Perform a functional shift test. Have the patient close their mouth to see if the mandible shifts forward into the underbite position to avoid tooth interference (Pseudo-Class III).
3. Assess the growth stage using the Cervical Vertebral Maturation (CVM) method to determine if skeletal growth can still be harnessed.

Step 2: Early Interceptive Orthodontics (Ages 7–10)

For pediatric patients, the goal is to modify bone growth while the sutures of the skull are still flexible.

1. Palatal Expansion: A Rapid Palatal Expander (RPE) is fixed to the upper molars. The patient or parent turns a screw daily to widen the maxilla, which often "unlocks" the bite and allows the upper jaw to move forward.
2. Protraction Face Mask (Reverse-pull Headgear): This device uses the forehead and chin as anchor points to pull the upper jaw forward via elastics attached to the RPE.
3. Target Thresholds: Clinical success in this stage is defined by achieving a 2–3 mm positive overjet (upper teeth sitting in front of lower teeth).

Pro-Tip: Consistency is the primary variable in Phase I success. A protraction face mask must be worn 12 to 14 hours per day to achieve the skeletal orthopedic effect required to stimulate maxillary growth at the sutures.

Step 3: Orthodontic Camouflage (Mild to Moderate Adult Cases)

When the skeletal discrepancy is mild, or the patient is past the age of growth, "camouflage" therapy is used to move teeth into a functional position without changing the underlying bone structure.

1. Tipping and Torque: Braces or clear aligners (like Invisalign) are used to tip the upper teeth forward (proclination) and the lower teeth backward (retroclination).
2. Class III Elastics: Heavy rubber bands are stretched from the upper back molars to the lower front canines. This constant tension pulls the lower arch back and the upper arch forward.
3. Mandibular Extraction: In some cases, two lower premolars are extracted to create space, allowing the entire lower front tooth segment to be retracted.

Warning: Excessive dental camouflage can lead to "thinning" of the alveolar bone or root resorption if the teeth are moved too far outside the biological width of the supporting bone.

Step 4: Orthognathic Surgical Correction (Severe Skeletal Cases)

For adults with significant jaw discrepancies (ANB angle less than -4° or severe facial asymmetry), surgery is the only viable method for correction.

1. Pre-Surgical Orthodontics: Braces are worn for 12–18 months to "decompress" the bite, often making the underbite look worse temporarily as teeth are moved into their ideal positions relative to their respective jaw bones.
2. LeFort I Osteotomy: The surgeon cuts the upper jaw and moves it forward, securing it with titanium plates and screws.
3. Bilateral Sagittal Split Osteotomy (BSSO): The lower jaw is cut and slid backward to align with the newly positioned upper jaw.
4. Rigid Fixation: The jaws are held in place with internal hardware, allowing for immediate post-operative function without the need to wire the mouth shut in most modern cases.

Step 5: Retention and Finalization

Once the primary correction is achieved, the focus shifts to stabilizing the bone and dental positions.

1. Debanding: Braces are removed, and the enamel is polished.
2. Retention Protocol: Patients must wear retainers (Hawley or Essix) 22 hours a day for the first six months, then indefinitely at night.
3. Bonded Retainers: A lingual wire is often cemented to the back of the lower front teeth to prevent the lower incisors from crowding or shifting back into a Class III tendency.

Comparison of Correction Modalities and Technical Specifications

The following table outlines the technical parameters for various treatment paths, helping to determine the most effective course based on patient profile and clinical necessity.

Managing Post-Treatment Complications and Relapse

Even with successful clinical execution, the biological nature of the jaw and teeth presents risks for relapse or secondary complications.

• Late Mandibular Growth


  • Root Cause: In some male patients, the lower jaw continues to grow into the early 20s, potentially pushing the teeth back into an underbite.
  • Actionable Fix: Monitor growth with serial cephalometric overlays. If growth is persistent, delay the final surgical or orthodontic finishing until growth has ceased for at least six months.
• Orthodontic Relapse (Dental Shifting)


  • Root Cause: Failure to adhere to the retention protocol or high tongue thrust pressure against the lower teeth.
  • Actionable Fix: Re-treat with minor aligner therapy and implement a permanent bonded lingual retainer combined with myofunctional therapy to retrain tongue posture.
• Root Resorption


  • Root Cause: Excessive or rapid force application, particularly during camouflage therapy, leading to the shortening of tooth roots.
  • Actionable Fix: Conduct mid-treatment periapical X-rays to monitor root length. If resorption is detected, pause active movement for 3–4 months to allow the PDL (periodontal ligament) to stabilize.
• TMJ Dysfunction (TMD)


  • Root Cause: Alteration of the occlusal plane changing the loading forces on the temporomandibular joint.
  • Actionable Fix: Utilize splint therapy to find a centric relation that is comfortable for the joint, then adjust the orthodontic finish to match that orthopedic position.

Frequently Asked Questions

Can an underbite be fixed with just Invisalign?

Clear aligners like Invisalign can correct mild dental underbites using a series of trays and Class III elastics to shift the teeth. However, severe skeletal underbites generally require traditional braces or surgery, as aligners have limited ability to perform complex root movements or skeletal shifts.

At what age is it too late to fix an underbite?

There is no upper age limit for correcting an underbite, but the method changes once growth is complete. Adults (18+) cannot benefit from growth-modifying appliances like face masks and must instead rely on orthodontic camouflage or orthognathic surgery to achieve results.

Is underbite surgery dangerous?

Orthognathic surgery is a major procedure performed under general anesthesia but is considered highly safe when performed by a board-certified oral and maxillofacial surgeon. Standard risks include temporary numbness of the lower lip, swelling, and a recovery period of 2 to 6 weeks, but long-term complications are statistically rare.

Will fixing an underbite change my face shape?

Yes, correcting an underbite often significantly improves facial aesthetics. Skeletal correction can lead to a more prominent upper lip, a more defined jawline, and a reduction in the "sunken" appearance of the midface, resulting in a more balanced profile.

How long do I have to wear a face mask for an underbite?

The protraction face mask is typically worn for 12 to 14 hours per day, usually in the evening and during sleep, for a period of 12 to 18 months. Adherence is critical because skeletal changes only occur when the pressure is consistent enough to stimulate bone remodeling at the sutures.
