How To Perform A Full AFM Delete On A 5.3L GM Engine: The Complete Mechanical And Electronic Guide
Deleting Active Fuel Management (AFM) on a 5.3L GM engine involves a two-stage process: physically replacing the collapsible lifters and high-volume oil manifold with standard mechanical components and electronically reprogramming the Engine Control Module (ECM) to disable the cylinder deactivation logic. A successful conversion requires standardizing the valvetrain to non-DOD (Displacement on Demand) specifications, ensuring the oiling system maintains a consistent 40-60 PSI under load without the parasitic loss of the AFM relief valve.
Pre-Procedure Planning and Essential Component Checklist
Before initiating a 5.3L AFM (Active Fuel Management) delete, you must distinguish between an electronic "disable" and a mechanical "delete." Simply plugging a device into the OBD-II port stops the software from deactivating cylinders, but it does not address the mechanical vulnerability of the spring-loaded AFM lifters located in cylinders 1, 4, 6, and 7. To permanently resolve the risk of lifter collapse and subsequent camshaft damage, a full mechanical teardown is required. This procedure is common for Gen IV Small Block V8 engines (such as the LY5, LMG, and LC9 codes) found in Silverado, Sierra, and Tahoe platforms produced between 2007 and 2014, as well as newer Gen V EcoTec3 engines.
Mandatory Tooling and Materials
- Mechanical Components: A complete AFM delete kit including 16 non-AFM lifters (standard LS7 style), a non-AFM camshaft (essential because AFM cam lobes have different profiles), a standard valley cover without oil solenoids, and four non-AFM lifter trays.
- Gasket and Seal Set: Multi-layer steel (MLS) head gaskets, intake manifold gaskets, exhaust manifold gaskets, a front timing cover seal, and a water pump gasket set.
- Fasteners: Torque-to-Yield (TTY) head bolts (these cannot be reused) or an ARP head stud conversion kit, and a new harmonic balancer bolt.
- Precision Tools: A calibrated torque wrench (capable of both Inch-Pounds and Foot-Pounds), an angle gauge for TTY fasteners, a harmonic balancer puller, and a valve spring compressor.
- Software/Hardware: An HP Tuners MPVI3 or a dedicated handheld programmer to flash the ECM and permanently disable the AFM software flags.
Technical Benchmarks
- Estimated Duration: 12 to 18 labor hours depending on experience and vehicle configuration.
- Budget Range: $800 to $1,500 for parts and tuning software.
- Required Expertise: Advanced DIY or Professional. This requires a deep understanding of engine timing, torque sequences, and fuel system depressurization.
Step-by-Step Execution of the 5.3L AFM Delete
Step 1: Top-End Disassembly and Fluid Management
The process begins with clearing the workspace. Drain the engine coolant and engine oil completely to prevent cross-contamination when the heads are pulled. Disconnect the battery and remove the air intake assembly. You must then depressurize the fuel system via the Schrader valve on the fuel rail before disconnecting the fuel lines.
Remove the intake manifold by unbolting the ten 10mm bolts. Take care to label the fuel injector harness and various sensor connections (MAP, MAF, and Throttle Body). Once the intake is removed, you will see the VLOM (Valley Lifter Oil Manifold). Disconnect the electrical connector at the rear of the VLOM; this is the harness that controls the solenoids responsible for cylinder deactivation.
Step 2: Accessing the Valvetrain and Heads
Remove the valve covers and the rocker arm assemblies. Keep the rocker arms and pushrods in order if you plan to reuse them, though most high-mileage deletes benefit from new 7.400-inch hardened pushrods.
The cylinder heads must be removed to access the lifters. Loosen the head bolts in the reverse order of the tightening sequence to prevent head warping. Because these engines use TTY bolts, they will feel extremely tight and then "give" suddenly. Once the bolts are out, lift the heads from the block. Inspect the cylinder bores for any scoring that might have been caused by a failed lifter needle bearing.
Warning: Do not reuse the original head bolts. They are designed to stretch during their initial installation and will fail to provide the necessary clamping force if used a second time, leading to immediate head gasket failure.
Step 3: Removing the AFM Components
With the heads off, you can see the lifter trays. The AFM lifters are located in the center of the block. Remove the bolts holding the lifter trays and pull the trays and lifters out as a unit.
Next, remove the VLOM (the ribbed aluminum plate in the valley). Beneath the VLOM, you will find the oil towers that feed the AFM solenoids. In a mechanical delete, these towers no longer need to be pressurized. Most modern delete kits provide a smooth valley cover with O-ring seals that block these towers.
Step 4: Camshaft Replacement
You cannot run a standard lifter on an AFM camshaft effectively. The lobe lift and duration on the deactivating cylinders are slightly different to compensate for the mechanical delay in the AFM lifter. To do this right, remove the front water pump, the harmonic balancer (using a specialized puller), and the timing cover.
Rotate the engine to Top Dead Center (TDC) on cylinder one. Align the dots on the cam sprocket and the crank sprocket. Remove the timing chain and the camshaft retainer plate. Carefully slide the AFM camshaft out and slide in a standard 5.3L non-AFM camshaft (such as the one from an older LM7 or a mild performance grind).
Pro-Tip: Liberally coat the new camshaft lobes and journals with high-pressure assembly lube. This is critical for the first 20 minutes of engine operation to prevent premature wear.
Step 5: Installing Non-AFM Lifters and Reassembly
Soak your new non-AFM lifters in clean engine oil for at least 30 minutes. Place them into the new lifter trays (ensure they are oriented correctly with the flat spots on the lifters matching the trays) and drop them into the bores.
Install the new non-AFM valley cover. Ensure the O-rings are seated perfectly on the oil towers to prevent internal oil leaks which could result in low oil pressure. Install the new head gaskets (ensure they are oriented correctly with the "Front" or "This Side Up" markings visible) and seat the cylinder heads.
Step 6: Critical Torque Procedures
Follow the three-pass torque-to-yield sequence for the head bolts. For most 5.3L Gen IV blocks, this involves:
- A first pass of all M11 bolts to 22 lb-ft.
- A second pass of 90 degrees.
- A final pass of an additional 90 degrees (or 70 degrees for the end bolts on certain years).
- The smaller M8 bolts at the top are typically torqued to 22 lb-ft in a single pass.
Reinstall the pushrods and rocker arms. Torque the rocker arm bolts to 22 lb-ft while the base circle of the cam is facing the lifter. Reinstall the timing cover, harmonic balancer (torque the new bolt to 240 lb-ft to seat, then replace with a final bolt at 37 lb-ft plus 140 degrees), water pump, and intake manifold.
Step 7: ECM Reprogramming (The Electronic Delete)
The mechanical work is useless if the computer still tries to command cylinder deactivation. The ECM will look for the VLOM solenoids, and when it doesn't find them, it will throw a P0506 or various other "Performance" codes and likely enter Limp Mode.
Use a tuning suite like HP Tuners to access the ECM. Navigate to the "Engine" tab, then "Fuel," then "Displacement on Demand" or "Active Fuel Management." Set the master enable switch to "Disabled." While in the software, you should also disable the Diagnostic Trouble Codes (DTCs) related to the VLOM solenoids (typically P3400 through P3497). Flash the new calibration to the vehicle.

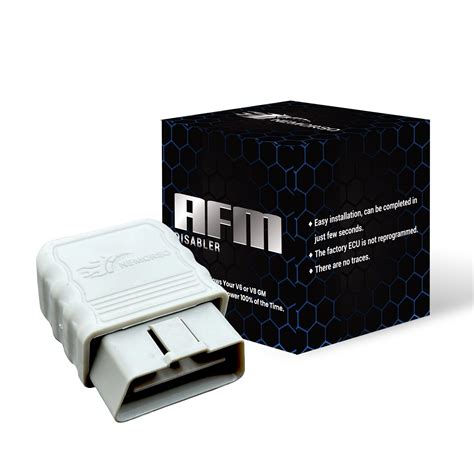

Delete AFM Disabler Device RA003 - Active Fuel Management Delete For GM ...
5.3L AFM Delete Technical Specifications and Torque Values
The following table outlines the critical measurements and torque requirements for a standard 5.3L (Gen IV) AFM delete project.
| Component | Specification / Torque Value | Requirement |
|---|---|---|
| Cylinder Head Bolts (M11) | 22 lb-ft / 90° / 90° | Must use new TTY bolts |
| Cylinder Head Bolts (M8) | 22 lb-ft | Torque in sequence |
| Rocker Arm Bolts | 22 lb-ft | Ensure lifter is on base circle |
| Camshaft Retainer Plate | 18 lb-ft | Use Blue Threadlocker |
| Camshaft Sprocket Bolts | 26 lb-ft | Three-bolt or Single-bolt style |
| Harmonic Balancer Bolt | 37 lb-ft + 140° | Use new bolt; 240 lb-ft for seating |
| Valley Cover Bolts | 18 lb-ft | Ensure O-rings are seated |
| Intake Manifold Bolts | 89 lb-in (Pass 1) / 89 lb-in (Pass 2) | Note: Inch-Pounds, not Foot-Pounds |
| Lifter Tray Bolts | 106 lb-in | Do not over-tighten |
| Oil Pressure Target | 25 PSI (Idle) / 40-60 PSI (Cruise) | Standard for non-AFM 5.3L |
Troubleshooting Post-Delete Complications
Even with careful execution, the transition from AFM to a standard valvetrain can present challenges. Below are common failure scenarios and their solutions.
Scenario: Persistent Misfire on Cylinder 1, 4, 6, or 7 after delete.
- Root Cause: This is often caused by retaining the original AFM camshaft while installing standard lifters. The different lobe profiles prevent the valves from sealing or opening correctly on the formerly active cylinders. Another cause could be a pinched intake manifold gasket.
- Actionable Fix: Verify that the camshaft was replaced with a non-AFM model. Perform a compression test on the affected cylinders. If compression is low, inspect the rocker arm torque and pushrod length.
Scenario: Significant Drop in Oil Pressure at Operating Temperature.
- Root Cause: The AFM oil towers in the valley were not sealed properly by the new valley cover, or the AFM pressure relief valve in the oil pan is stuck open.
- Actionable Fix: Inspect the O-rings under the valley cover. If the issue persists, you may need to install an AFM shield or plug the pressure relief valve located inside the oil pan near the oil filter housing.
Scenario: Engine Starts but Stalls with "Reduced Engine Power" Message.
- Root Cause: The ECM was not flashed correctly, or the VLOM harness was left disconnected without disabling the DTCs in the software.
- Actionable Fix: Connect a diagnostic scanner and check for P3400 series codes. Ensure the AFM/DOD master switch in the tuning software is set to "Disabled" and the write-to-ECM process was successful.
Frequently Asked Questions
Can I just use a Range Disabler instead of a mechanical delete?
A Range Disabler is a temporary electronic solution that prevents the software from deactivating cylinders, but it does not fix the mechanical weakness of the AFM lifters. If your lifters are already ticking or failing, an electronic disabler will not prevent an eventual catastrophic engine failure; only a mechanical delete can do that.
Is it necessary to change the oil pump during an AFM delete?
While not strictly mandatory, it is highly recommended. AFM engines use a high-volume oil pump to handle the demands of the VLOM. When you remove the AFM components, that extra volume can sometimes overwhelm the standard system or cause the relief valve in the pan to bleed off excessively. Installing a standard Melling M295 or a high-pressure 10295 pump provides better consistency.
Do I need to buy different pushrods for the new lifters?
If you are using standard LS7-style lifters and a stock-style non-AFM camshaft, the standard 7.400-inch pushrods are usually correct. However, you should always use a pushrod length checker to verify that you have between 0.050" and 0.080" of lifter preload, especially if the heads have been milled or the block decked.
Why does my truck still smoke on startup after the AFM delete?
AFM-equipped 5.3L engines often suffer from fouled piston rings in the deactivating cylinders because oil accumulates when the cylinders are inactive. If the rings were already stuck or carbon-fouled before the delete, you may still experience oil consumption. A "piston soak" with a carbon cleaner or simply driving the truck under load for several hundred miles may help the rings reseat now that the cylinders are firing 100% of the time.
Professional Valvetrain Optimization Services
A mechanical AFM delete is the single most effective way to ensure the longevity of your 5.3L Vortec or EcoTec3 engine. By removing the inherent failure points of the cylinder deactivation system, you restore the legendary reliability of the GM Small Block architecture.
