How To End An Electric Fence: Proper Termination Techniques And Safety Protocols

Terminating an electric fence correctly requires establishing a secure mechanical anchor, maintaining precise clearance distances from non-insulated structures, and optionally integrating lightning protection or gate loops. Failing to terminate the perimeter line using rated hardware can lead to voltage leakage, ground faults, and premature mechanical failure of the high-tensile wire.

Pre-Operation & Equipment Checklist

Properly terminating an electric fence line demands adherence to agricultural and perimeter security standards, ensuring that high-voltage pulses remain on the line without discharging into the earth or structural posts. Before beginning the termination process, gather specialized fencing hardware and safety gear designed to withstand continuous mechanical tension and weathering.

• Essential Gear, Tools, and Materials:


  • Mechanical wire tensioners, strain insulators (porcelain or high-density polyethylene), and heavy-duty crimp sleeves.
  • Joint clamps (split-bolt connectors), insulated underground cable (rated for high voltage, typically 12.5 gauge), and a digital digital fault finder or high-voltage fence meter.
  • Wire cutters, crimping tools, lineman's pliers, and personal protective equipment including insulated gloves and safety glasses.
• Mandatory Prerequisite Standards:


  • Verification that the energizer is completely powered off and locked out using a physical tag system before touching any conductors.
  • Compliance with local electrical codes regarding fence height, lightning choke positioning, and mandatory warning sign spacing.
• Estimated Budget and Duration Benchmarks:


  • Budget approximately thirty to sixty dollars in hardware per termination point depending on wire gauge and insulator ratings.
  • Allow thirty to forty-five minutes per dead-end post installation for a single- or multi-wire configuration.

Step-by-Step Execution of Electric Fence Termination

Step 1: Install the Terminal Anchor Post

• Select a solid wood corner post, heavy-duty steel pipe, or engineered end-assembly capable of holding up to 300 pounds of tensile pressure per strand without shifting or leaning.
• Brace the terminal post using a diagonal H-brace or floating brace assembly to counteract the continuous pull of the energized wires.
• Drive the post to a minimum depth of three feet in compacted soil, or deeper if operating in loose sandy loam, to ensure structural stability under load.

Step 2: Mount the Strain Insulators

• Position high-strain porcelain or heavy-duty polymer strain insulators at the exact height of each fence wire on the face of the terminal post.
• Secure the strain insulators using heavy-gauge tie wire or a bolted wrap-around loop designed to prevent side-to-side slipping under maximum tension.
• Ensure a minimum clearance of two inches between the electrified wire loop and any conductive wooden or metal bracing components.

Step 3: Secure and Crimp the Fence Wire

• Feed the main fence wire through the eye of the strain insulator, pull the line tight using a mechanical wire strainer or come-along tool, and fold a six-inch tail back parallel to the main line.
• Apply a minimum of two heavy-duty aluminum or copper-lined steel crimp sleeves over the overlapping wires, using a calibrated mechanical crimping tool to ensure a permanent electrical and mechanical bond.
• Alternatively, execute a secure Western Union wrap with at least six tight turns, ensuring no sharp wire ends protrude that could cause corona discharge or injure livestock.

Step 4: Bridge Power Across the End Assembly

• If the fence line continues past the terminal post or connects to another paddock, run a jumper lead using double-insulated underground cable around the dead-end post to maintain circuit continuity.
• Strip the insulation back half an inch on the underground cable and attach it securely to the live wires on both sides of the termination point using split-bolt joint clamps.

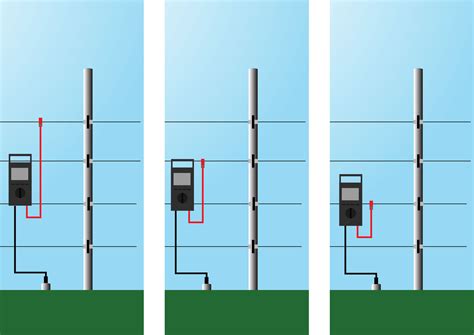

• Test the system voltage immediately downstream of the termination point using a digital fence meter to confirm that power delivery remains uninterrupted across the span.

Technical Specifications for Fence Termination Hardware

Common Site Failures and Field Fixes

• Root Cause: Voltage leaking directly into the wooden or metal terminal post through a cracked or substandard insulator.


  • Actionable Fix: Replace the damaged insulator immediately with a rated porcelain or heavy-duty UV-stabilized polymer model, ensuring adequate dry-arc distance from the post surface.
• Root Cause: Wire slippage or mechanical pull-out at the crimp sleeve due to incorrect sizing or improper crimping pressure.


  • Actionable Fix: Cut away the damaged section, re-tension the wire using a mechanical strainer, and apply a fresh set of manufacturer-approved parallel crimps with a certified tool.
• Root Cause: Corona discharge (a buzzing sound accompanied by energy loss) caused by frayed wire ends or burrs protruding near the termination point.


  • Actionable Fix: Trim all wire tails flush, bend loose ends back toward the main conductor, and apply anti-corrosion conductive paste to all exposed clamp connections.

Frequently Asked Questions

Can I tie an electric fence wire directly to a wooden post to end it?

No. Wood retains natural moisture and can become conductive, causing ground faults, rapid wood degradation, and complete loss of fence voltage. Always use rated strain insulators to physically isolate the energized wire from the terminal post.

How do I maintain power flow when terminating a fence at a gate opening?

You must install a continuous loop using double-insulated underground cable buried at least six to twelve inches deep inside a protective PVC conduit. Connect this underground cable to the live fence wires on either side of the gate opening using split-bolt clamps.

What is the best way to tension a wire before terminating it?

Use a ratcheting wire strainer or a mechanical come-along tool attached to a grip clamp. Pull the wire to the recommended tension of 150 to 250 pounds before securing it through the strain insulator and applying your crimp sleeves.

Do I need a lightning arrestor near my fence termination point?

Yes. If your fence line terminates near a structure or connects to a mains-powered energizer, installing a lightning choke and surge protector near the end of the line helps divert high-voltage lightning strikes safely into the earth before they damage your equipment.

How often should I inspect my fence termination points?

Inspect all terminal posts, tensioners, insulators, and jumper connections at least twice a year—typically at the start of spring grazing and before winter freezes—using a digital fault finder to check for micro-arcs and voltage drops.
