How To Erase HomeLink: Complete Reset And Clearing Guide
Clearing your vehicle's integrated HomeLink system requires erasing the memory registers on the universal transceiver module rather than deleting codes from individual garage door openers. This fundamental master reset process clears all three programmable channels simultaneously, establishing a clean slate necessary for pairing new garage doors, electronic gates, or smart home automation devices.
Pre-Procedure Planning and Technical Requirements
Executing a HomeLink module reset requires zero specialized mechanical tools, relying entirely on the vehicle's onboard power architecture and physical button sequences. HomeLink systems, engineered primarily by Gentex Corporation, operate on radio frequency (RF) bands ranging from 288 MHz to 433 MHz, utilizing rolling code encryption technology.
Before initiating the master erase sequence, verify the vehicle's ignition state, as most automotive architectures require the ignition to be switched to the "On" or "Accessory" position (without starting the internal combustion engine) to supply continuous voltage to the rearview mirror or overhead console module.
- Essential Equipment and Tools: Vehicle key fob or push-to-start ignition, no external hand tools required.
- Mandatory Prerequisite Knowledge: Understanding that clearing the HomeLink memory is a non-selective master reset; it wipes all previously programmed channels (Button 1, Button 2, and Button 3) at once.
- Estimated Duration and Complexity: 1 to 2 minutes; beginner-level complexity requiring no technical background.
Step-by-Step HomeLink Memory Erase Workflow
Step 1: Turn the Vehicle Ignition to the On Position
Insert your key into the ignition cylinder and turn it to the "On" position, or press the engine start/stop button once or twice without depressing the brake pedal depending on your vehicle's manufacturer specifications. This ensures that the electronic control unit and the HomeLink transceiver receive uninterrupted 12-volt power from the primary automotive battery.
Warning: Do not start the engine. Exhaust fumes inside a closed garage pose severe health hazards, and engine vibrations or electrical noise can occasionally interfere with the low-voltage stabilization required for accurate transceiver programming resets.
Step 2: Locate the HomeLink Transceiver Buttons

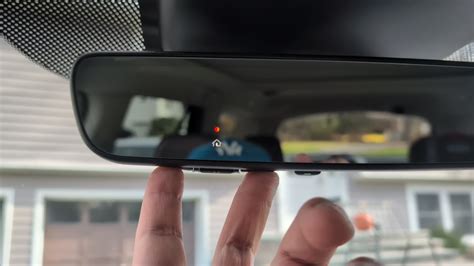

Identify the physical HomeLink interface, which is typically embedded directly into the lower edge of the rearview mirror housing, integrated into the overhead console, or occasionally positioned on the driver-side sun visor. Locate the three distinct rectangular or oval buttons, which are conventionally labeled with dot indicators (one dot, two dots, and three dots) corresponding to Channels 1, 2, and 3.
Step 3: Execute the Master Erase Button Sequence
Press and hold down the two outer HomeLink buttons simultaneously (typically Button 1 and Button 3). Maintain continuous physical pressure on both buttons without releasing them. Observe the LED indicator light embedded within the transceiver module or mirror housing.
Pro-Tip: Do not release the buttons the moment the indicator light flickers. You must maintain steady pressure through the initial phase until the status light transitions from a slow, steady glow to a rapid, continuous flashing pattern.
Step 4: Monitor the LED Status and Release
Keep holding the two outer buttons down for approximately 10 to 20 seconds. Watch for the LED indicator light to change its behavior from solid or slow-flashing to a rapid, high-frequency flash. This rapid blinking pattern confirms that the EEPROM (Electrically Erasable Programmable Read-Only Memory) inside the transceiver has wiped all stored rolling and fixed radio frequency codes. Once this rapid flashing begins, release both buttons. The HomeLink system is now completely unprogrammed and restored to its original factory default state.
Installing OEM HomeLink on your Dark Horse Non-Premium NP! -- DIY How ...
HomeLink Transceiver Generations and Reset Specifications
| Transceiver Generation | Operating Frequency Range | Default Erase Method | LED Indicator Behavior |
|---|---|---|---|
| Version 1 (Legacy) | 288 MHz - 360 MHz | Hold outer buttons for 20 seconds | Solid light turns off completely |
| Version 3 (Standard) | 288 MHz - 433 MHz | Hold outer buttons until rapid flash | Slow amber/red to rapid green flash |
| Version 4 (Bi-Directional) | 310 MHz, 355 MHz, 390 MHz | Hold outer buttons for 10-20 seconds | Solid to rapid flashing indicator |
| Version 5 (Homelink Connect) | 288 MHz - 433 MHz (Multi-Band) | Hold outer buttons until flash changes | Flashing orange to rapid green blink |
Common Site Failures and Field Fixes
- Root Cause: The vehicle ignition timed out or powered down mid-sequence due to battery saver protocols.
- Actionable Fix: Restart the ignition cycle, ensure accessories remain active, and repeat the dual outer button hold without pausing between steps.
- Root Cause: The user released the outer buttons prematurely before the internal EEPROM completed the full sector wipe cycle.
- Actionable Fix: Hold the outer buttons down for a full 30 seconds, ignoring any intermediate indicator changes until the definitive rapid flash occurs.
- Root Cause: Low vehicle battery voltage causing the transceiver module to experience brownout conditions during memory clearing.
- Actionable Fix: Connect a 12V trickle charger to the battery terminals or run the engine briefly in a well-ventilated area to restore nominal system voltage before attempting the reset again.
Frequently Asked Questions
Does erasing HomeLink delete my garage door opener's memory?
No, performing a master erase on your vehicle's HomeLink transceiver only clears the codes stored within the car's internal module. Your physical garage door opener unit mounted in the garage ceiling and any other handheld remotes will retain their programmed codes unaffected.
Can I erase just one single HomeLink button instead of all three?
No, the HomeLink system does not support selective single-channel deletion. The master erase sequence clears all channels simultaneously to ensure memory registers are completely purged of conflicting frequency data.
Why won't my HomeLink LED light start flashing rapidly?
If the indicator light fails to flash rapidly after holding the outer buttons for 30 seconds, your vehicle may require the ignition to be in a different mode, or the transceiver module may lack proper electrical grounding. Verify that your vehicle's electrical accessories are fully powered and consult your owner manual for vehicle-specific diagnostic sequences.
Do I need to re-program my garage doors after performing a master erase?
Yes, once you complete the erase process, the HomeLink system contains no operational frequency profiles. You will need to train the system using your original handheld remote and subsequently complete the rolling code synchronization process with your garage door motor unit.
