How To Fix Circuit Overload: A Professional Electrical Troubleshooting Guide

A circuit overload occurs when electrical devices draw more current than the circuit wiring and overcurrent protection devices are rated to handle, tripping the breaker or blowing a fuse. Resolving this issue safely requires identifying high-draw appliances, redistributing electrical loads across different circuits, and upgrading panel infrastructure when sustained demand exceeds existing capacity.

Pre-Operation & Equipment Checklist

Diagnosing and resolving an overloaded circuit requires a methodical approach, strict adherence to the National Electrical Code (NEC), and precise instrumentation. Before interacting with any electrical panel or wiring, gather the necessary tools and establish baseline safety protocols to mitigate arc-flash, shock, and fire hazards.

• Essential Gear, Tools, and Materials:


  • Non-contact voltage tester (CAT III or CAT IV rated)
  • Digital multimeter capable of measuring AC voltage and current draw via a clamp attachment
  • Standard insulated hand tools (screwdrivers, pliers rated for 1000V)
  • Flashlight or headlamp
  • Circuit directory chart and labeling markers
• Mandatory Prerequisite Knowledge and Standards:


  • Working knowledge of Ohm's Law ($I = P / V$) to calculate amperage based on device wattage and system voltage
  • Familiarity with NEC guidelines concerning continuous load limits (80% rule for standard branch circuits)
  • Understanding of standard residential branch circuit configurations (15-amp versus 20-amp circuits)
• Estimated Budget and Duration Benchmarks:


  • DIY diagnostic and load redistribution: 1 to 2 hours, $0 to $50 (assuming purchase of basic testing tools)
  • Professional sub-panel installation or dedicated circuit run: 3 to 6 hours, $300 to $1,500 depending on contractor rates and material costs

Step-by-Step Circuit Overload Mitigation

Step 1: Identify and Isolate the Tripped Circuit

Locate your main electrical service panel and inspect the breaker switches. A tripped breaker will typically rest in the middle position between "ON" and "OFF," or show a distinct orange/red indicator flag depending on the manufacturer. Walk through the structure to identify which lights, outlets, and fixed appliances have lost power.

Warning: Never force a breaker back into the "ON" position if it immediately trips again. This indicates a dead short circuit or a severe, persistent overload that requires immediate diagnostic isolation.

Step 2: Calculate Load Amperage Versus Circuit Capacity

Determine the exact capacity of the tripped circuit by inspecting the amperage rating printed on the breaker handle (typically 15A for 14 AWG wire or 20A for 12 AWG wire). Calculate the total continuous electrical load plugged into that specific circuit by summing the wattage ratings of all active appliances and dividing by the standard supply voltage (120V).

Pro-Tip: Standard residential branch circuits should not sustain a continuous load exceeding 80% of their maximum capacity—meaning a 15-amp circuit should not exceed 1,440 watts, and a 20-amp circuit should stay below 1,920 watts.

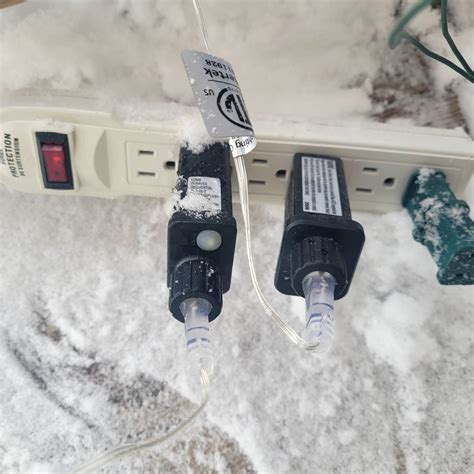

Step 3: Unplug and Redistribute High-Draw Appliances

Unplug all heavy motor-driven and heating appliances from the affected zone, including space heaters, window air conditioning units, hair dryers, microwaves, and laser printers. Reset the breaker by pushing it firmly to the "OFF" position, then back to the "ON" position. Relocate high-wattage devices to alternative branch circuits in different areas of the building to balance the overall electrical load across the main service panel.

Step 4: Validate Circuit Integrity and Voltage Drop

Using a digital multimeter, measure the voltage across the hot and neutral terminals at the outlets along the troubled circuit while appliances are operating. A voltage drop exceeding 5% under load indicates excessive resistance, loose wire terminations at the receptacle backstabs, or undersized conductors that require professional remediation.

Electrical Branch Circuit Parameters and Thresholds

Common Electrical Failures and Field Fixes

• Recurring Tripping Despite Minimal Plugged-In Devices:


  • Root Cause: Loose terminal screw connections inside outlet boxes, worn wire nut splices, or a failing thermal-magnetic circuit breaker that has lost its calibration.
  • Actionable Fix: Turn off power at the main breaker, open downstream receptacle boxes, inspect wire terminations, convert backstab connections to side-screw terminations, and replace faulty breakers if internal resistance is detected.
• Circuit Breaker Feels Warm or Hot to the Touch:


  • Root Cause: High contact resistance at the bus bar connection, loose wire lug on the breaker terminal, or chronic overloading pushing the circuit to its thermal limit.
  • Actionable Fix: Immediately turn off the affected circuit, remove the panel deadfront (if qualified), inspect for discoloration or pitting, torque all breaker and neutral lugs to manufacturer specifications, and replace damaged hardware.
• Lights Dim When Heavy Appliances Start:


  • RootCause: Inadequate wire gauge for high motor startup surge currents (locked rotor amps) or an overloaded service drop feeding the primary panel.
  • Actionable Fix: Install a dedicated 20-amp circuit directly from the service panel to supply high-draw motorized equipment, separating sensitive lighting circuits from inductive loads.

Frequently Asked Questions

What is the difference between a circuit overload and a short circuit?

A circuit overload happens when too many appliances draw excessive current simultaneously, generating heat and slowly tripping the breaker via a bimetallic strip. A short circuit occurs when a live wire touches a neutral or ground wire directly, creating an instantaneous surge of current that violently trips the breaker via a magnetic trip mechanism, often accompanied by sparks or a loud pop.

Can I replace a 15-amp breaker with a 20-amp breaker to stop tripping?

No, upgrading a breaker without upgrading the underlying wire gauge creates a severe fire hazard. Existing 14 AWG wire designed for 15 amps will overheat and melt its insulation if forced to carry 20 amps of current before the overcurrent protection device triggers.

Why does my hair dryer trip the bathroom breaker immediately?

Bathrooms require dedicated 20-amp circuits due to the high wattage demands of modern grooming appliances combined with GFCI protection requirements. Running a hair dryer simultaneously with a curling iron or space heater easily exceeds the 1,920-watt threshold of a standard 20-amp branch circuit.

When should I call a licensed electrician for a circuit overload?

You should hire a licensed electrician immediately if breakers refuse to reset, if you notice a burning smell or scorching near outlets and panels, if panel components feel hot, or if your home requires a heavy-up service upgrade from 100 amps to 200 amps to support modern electrical demand.
