Proven Methods For How To Fix Low Cylinder Compression In Internal Combustion Engines
Low cylinder compression indicates a mechanical failure preventing an airtight seal within the combustion chamber, usually stemming from worn piston rings, burnt valves, or a compromised head gasket. Diagnosing the specific failure point through a wet-dry compression test is the essential first step before determining if the issue can be resolved with chemical additives or if a full engine teardown and component replacement is mandatory.
Diagnostic Preparation and Essential Equipment Checklist
Before initiating any mechanical repairs, you must verify the severity of the pressure loss. A healthy engine should generally show compression readings within 10 to 15 percent of each other, typically exceeding 125 PSI per cylinder depending on the specific manufacturer specifications.
- Essential Diagnostic Tools:
- Professional-grade compression tester with the correct thread pitch adapter.
- Leak-down tester to pinpoint the specific area of pressure escape.
- High-quality engine oil (for performing a wet compression test).
- Service manual specific to your engine make and model for factory PSI baselines.
- Safety and Environment:
- Perform work in a well-ventilated area with a fire extinguisher accessible.
- Ensure the engine is at normal operating temperature (unless otherwise specified).
- Disconnect the fuel pump relay and ignition system to prevent accidental combustion during testing.
- Resource Requirements:
- Estimated Time: 2 to 4 hours for full diagnostics and preparation.
- Estimated Budget: $50 for basic testing tools; $200–$2,000+ for parts depending on whether the fix is chemical or mechanical.
Systematic Diagnostic and Repair Workflow
Step 1: Perform the Dry and Wet Compression Test
Begin by removing all spark plugs. Install the compression tester into the cylinder being tested and crank the engine through at least five compression strokes. Record the initial dry reading. Next, pour approximately one tablespoon of clean motor oil into the spark plug hole and repeat the test. If the compression reading increases significantly with oil, the piston rings are likely worn. If the pressure remains low, the issue originates from the valves or head gasket.
Step 2: Conduct a Cylinder Leak-Down Test
The leak-down test is the definitive method to isolate the failure point. Pressurize the cylinder to a set PSI (typically 100 PSI) with the piston at Top Dead Center (TDC) on the compression stroke. Listen for audible air hissing to identify the leak path.
Warning: Ensure the crankshaft is locked or blocked; air pressure inside the cylinder will attempt to force the piston downward, which can rotate the engine suddenly and cause severe injury.
Step 3: Address Top-End Compression Loss
If air escapes through the intake manifold, the intake valve is leaking. If air escapes through the exhaust, the exhaust valve is at fault. In many cases, these leaks are caused by carbon buildup. You may attempt to clear this with a high-quality fuel system cleaner or a specialized combustion chamber foam treatment. If the valve seat is physically burnt, no chemical will suffice; you must remove the cylinder head and perform a valve job, which involves grinding or replacing the valves and seats.
Step 4: Remedy Bottom-End Compression Loss
If air escapes through the oil fill cap or dipstick tube, the compression loss is occurring past the piston rings. If the rings are simply stuck due to carbon varnish, a piston soak using a dedicated carbon-dissolving solvent left in the cylinder for 24 hours can occasionally restore ring mobility. If the rings are physically worn or the cylinder walls are glazed/scored, a mechanical overhaul—involving a cylinder hone and the installation of oversized rings or new pistons—is the only viable repair path.

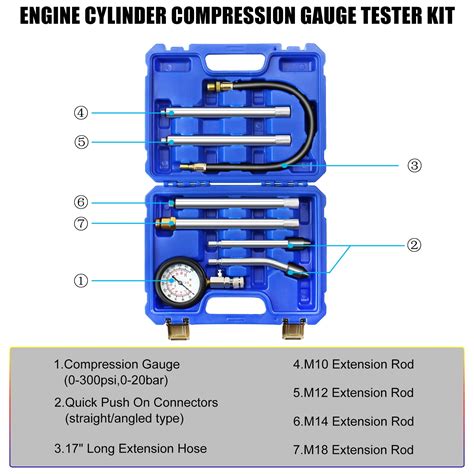

Snapklik.com : Cylinder Compression Tester, 8PCS Small Engine Pressure ...
Technical Comparison of Compression Failure Indicators
| Failure Symptom | Primary Leak Location | Diagnostic Method | Typical Repair Action |
|---|---|---|---|
| Low Dry, Higher Wet | Piston Rings | Wet Compression Test | Ring replacement or engine rebuild |
| Low Dry, Same Wet | Intake/Exhaust Valves | Leak-down Test | Valve lap, seat grind, or replacement |
| Bubbles in Coolant | Head Gasket | Chemical Block Test | Replace head gasket and resurface head |
| Oil Consumption | Cylinder Walls | Boroscope Inspection | Deglazing cylinders and new rings |
Field Troubleshooting for Common Repair Complications
- Failure Scenario: Persistent Low Compression After Additives
- Root Cause: Excessive mechanical wear beyond the chemical recovery threshold.
- Actionable Fix: Perform a professional boroscope inspection to check for deep gouges in the cylinder wall. If gouging exists, the engine block must be bored to the next oversize, requiring new pistons and rings.
- Failure Scenario: Compression Loss Only at High RPM
- Root Cause: Weak or broken valve springs failing to close the valve rapidly enough.
- Actionable Fix: Replace the valve springs and retainers. Always perform a clearance check to ensure the valve stem height matches factory specifications.
- Failure Scenario: Head Gasket Failure Symptoms Without Overheating
- Root Cause: Compression leaking into an adjacent cylinder rather than the coolant jacket.
- Actionable Fix: Identify the failure point through a leak-down test between adjacent cylinders. If the gasket is breached, replace the gasket and check the head flatness using a precision straightedge and feeler gauges.
Frequently Asked Questions
Can I drive a car with low cylinder compression?
Driving with low compression is generally discouraged, as it causes misfires, poor fuel economy, and potential catalyst damage from unburnt fuel. Over time, the uneven load on the crankshaft and connecting rods can lead to catastrophic engine failure.
Do fuel additives actually work to fix compression?
Fuel additives are effective only if the compression loss is caused by carbon deposits preventing the valves from seating or the rings from expanding. They cannot repair physically burnt valves, cracked ring lands, or scored cylinder walls.
How much compression is considered acceptable for an engine?
While factory specifications vary, a general rule is that cylinders should be within 10-15 percent of each other. If one cylinder is below 100 PSI or significantly lower than the others, it indicates a critical mechanical failure.
Is it cheaper to rebuild the engine or replace it?
Cost-effectiveness depends on the value of the vehicle and the internal damage. If the block and head are salvageable, a rebuild allows for upgraded components, whereas a used replacement engine carries the risk of hidden, pre-existing wear.
Mastering engine diagnostics allows you to make informed decisions that save thousands in unnecessary labor. Regularly monitor your engine health using a leak-down test to catch minor pressure drops before they escalate into major failures requiring a complete block teardown.
