How To Measure Copper Tubing: A Guide To Accurate Sizing And Fittings

Accurate measurement of copper tubing requires distinguishing between Outside Diameter (OD) and Nominal Pipe Size (NPS), as plumbing industry standards dictate that nominal sizing for plumbing copper is consistently 1/8 inch smaller than the actual outside diameter. Mastering the relationship between these dimensions is essential for preventing leaks, ensuring proper flow rates, and selecting the correct fittings for potable water, HVAC, or refrigeration systems.

Essential Preparation and Technical Requirements

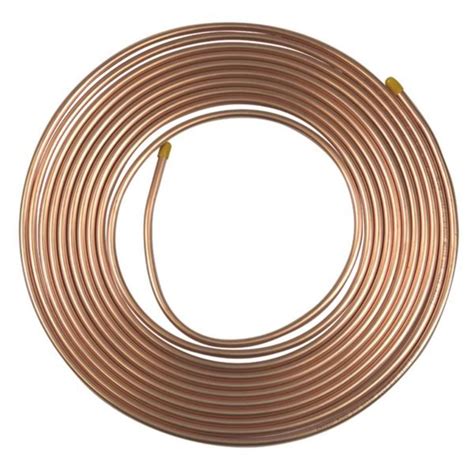

Before beginning, it is critical to identify the type of copper tubing you are working with, as the rules for plumbing differ significantly from those used in refrigeration or HVAC applications. Plumbing copper is measured by its nominal size, whereas refrigeration copper is measured by its exact outside diameter. Using the wrong sizing method often leads to incompatible couplings, loose solder joints, or failed flares.

Checklist for Accurate Measurement

• Essential Tools: A high-quality digital caliper for precision, a standard tape measure for approximate lengths, and a dedicated pipe circumference tape for larger diameters.
• Environmental Requirements: Ensure the pipe is clean and free of scale, corrosion, or heavy oxidation, as buildup can artificially increase the measured diameter.
• Safety Gear: Always wear ANSI-rated safety glasses when cutting or handling copper to protect against metal burrs and flying debris.
• Technical Prerequisite: Familiarize yourself with the three main grades of plumbing copper: Type K (thickest walls for underground/heavy-duty use), Type L (standard for residential water lines), and Type M (thinnest walls, generally restricted to non-potable or specific residential interior applications).

Procedural Workflow for Precision Copper Sizing

Measuring copper tubing is a process of verification. Because copper is manufactured to strict ASTM standards, you are rarely measuring a random size; you are identifying which standard size the pipe represents.

Step 1: Determining the Outer Diameter (OD)

Use a digital caliper to measure the widest point across the outside of the tube. Place the jaws of the caliper perpendicular to the pipe wall to ensure you are measuring the true diameter rather than an ovalized or flattened section. If the pipe has been previously cut or crimped, use a file to remove burrs before taking the measurement.

Pro-Tip: If you do not have a caliper, wrap a piece of string around the pipe, mark the overlap, and measure that length with a ruler. Divide the result by 3.1416 to calculate the diameter.

Step 2: Distinguishing Between Nominal and Actual Size

For plumbing applications, your measured OD will be exactly 1/8 inch larger than the nominal pipe size. For example, if your caliper reads 5/8 inch, you are holding 1/2-inch nominal copper tubing. Subtracting 0.125 inches from your measured OD will provide the trade size you need to request at a supply house. Refrigeration copper is an exception; it is sold by its actual OD, so a 5/8-inch refrigeration tube is sold exactly as 5/8-inch.

Step 3: Measuring Wall Thickness for Pressure Rating

If you are working on a high-pressure system, the thickness of the copper wall is as critical as the diameter. Use the depth-measuring rod on your digital caliper to gauge the thickness of the exposed pipe end. Compare this to standard ASTM B88 charts to determine if the pipe is Type K, L, or M. Using a thinner wall than required can lead to catastrophic pressure failure.

Warning: Never attempt to join copper tubing that shows visible signs of pitting, pinhole corrosion, or structural thinning. If the wall thickness has degraded by more than 10 percent of its original specification, the pipe must be replaced.

Step 4: Measuring for Fitment and Expansion

When calculating the length of pipe needed, account for the depth of the fitting socket. Standard copper fittings (solder cups) have a specific depth that the pipe must enter to create a proper capillary action for the solder. Ensure you measure the pipe length to include an extra 1/2 inch to 3/4 inch per connection to allow for complete insertion into the fitting.

Technical Specifications and Copper Sizing Matrices

The following table summarizes the relationship between nominal sizing and actual dimensions for standard hard-drawn copper tubing used in plumbing systems.

Field Troubleshooting and Common Measurement Errors

Precision errors are the primary cause of plumbing system failure. Even a slight misunderstanding of measurement standards can lead to costly water damage.

• Root Cause: Measuring Out-of-Round Pipe. Copper is a ductile metal and can easily deform during transport or installation.


  • Actionable Fix: Use a round-pipe sizing tool or a "rounding" tool to restore the tube to its circular profile before taking a measurement. Do not force a fitting onto an ovalized pipe.
• Root Cause: Confusing Types K, L, and M. Assuming all copper with the same OD has the same pressure rating is a common and dangerous mistake.


  • Actionable Fix: Check the ink-stamped markings on the side of the tubing. If the markings have faded, measure the wall thickness with a micrometer and verify it against an ASTM B88 wall thickness chart.
• Root Cause: Measuring with a Flexible Tape. Using a standard cloth or cheap plastic tape measure introduces parallax error, often resulting in an inaccurate reading of 1/16 inch or more.


  • Actionable Fix: Always utilize rigid, calibrated steel calipers or a dedicated pipe-sizing gauge for all professional installations.

Frequently Asked Questions

Why is plumbing copper sized differently than refrigeration copper?

Plumbing copper is based on historical internal diameter standards for water flow, while refrigeration copper is measured by its outside diameter to accommodate specific flare-nut and compression-fitting sizes. These two types are not interchangeable and require different sizing methodologies.

How do I measure copper that is already inside a wall?

If you cannot measure the OD directly, you can measure the circumference with a thin piece of wire and divide by 3.14. Alternatively, use a "no-go" gauge or a split-ring pipe sizing tool that can be opened and closed around the pipe in tight spaces.

Does the age of the copper affect its measurement?

Old copper may be coated in lime or mineral deposits, which will result in a larger OD measurement than the original specification. Always clean the exterior of the pipe with an abrasive pad or emery cloth until the raw, clean copper is visible before taking your measurement.

Is it safe to use a pipe cutter to measure length?

A pipe cutter is ideal for measuring and cutting simultaneously, but ensure the wheel is aligned correctly before tightening. If you cut the pipe too short, you will be unable to achieve the necessary insertion depth for a reliable soldered connection.

Secure Your Plumbing Infrastructure

Ensuring your copper tubing is accurately measured and matched with the correct fittings is the first step toward a leak-free system. Always consult local municipal building codes to ensure the specific type and size of copper you have measured meet regional requirements for water pressure and longevity.
