How To Measure Crank Arm Length: The Definitive Technical Guide For Optimal Bike Fit

To measure crank arm length with precision, determine the direct center-to-center distance between the middle of the bottom bracket spindle and the middle of the pedal spindle axle. This metric is universally expressed in millimeters, with standard industry lengths typically falling between 160mm and 175mm to optimize lever torque and physiological efficiency.

Crank arm length is a critical yet often overlooked variable in bicycle geometry that dictates a rider's hip angle, cadence potential, and overall joint health. While many cyclists assume their factory-installed cranks are "correct," these components are frequently sized based on frame averages rather than individual biomechanical needs. Measuring your current setup is the first step in identifying whether a change is necessary to alleviate knee pain, improve aerodynamic positioning, or increase power output. This guide provides the technical framework required to measure, verify, and analyze crank arm dimensions with professional-grade accuracy.

Precision Measurement Preparation and Tool Requirements

Before beginning the measurement process, it is essential to understand that crank arm length is a functional measurement of leverage, not a measurement of the physical alloy or carbon structure from end to end. You are measuring the "effective length" of the lever arm. Accuracy within a single millimeter is necessary, as small increments significantly impact the diameter of your pedaling circle.

Essential Equipment and Prerequisite Checklist

• Precision Metric Measuring Tool: A high-quality metric ruler with 1mm increments is the minimum requirement. For professional-grade accuracy, a pair of large digital calipers is preferred to eliminate parallax error.
• Cleaning Supplies: A degreaser and a microfiber cloth are necessary to reveal factory-stamped specifications often hidden under grime or "chain suck" abrasions.
• High-Intensity Lighting: A focused light source or flashlight helps in identifying the exact center points of the spindles.
• Stability Setup: A bike work stand or a steady wall to lean the bicycle against ensures the crank remains stationary during the measurement.
• Estimated Duration: 5 to 10 minutes.
• Technical Knowledge: Familiarity with the terms "Bottom Bracket Spindle" (the central axis of the crankset) and "Pedal Spindle" (the axis where the pedal threads into the arm).

Step-by-Step Methodology for Determining Crank Arm Length

Achieving an accurate measurement requires a systematic approach to isolate the two rotational axes of the crank. If you measure from the edge of the metal or the tip of the arm, you will produce an incorrect value that does not correspond to industry standards.

Step 1: Locating the Manufacturer's Specification Stamp

Before performing a manual measurement, look for the manufacturer's engraving. Most reputable brands—including Shimano, SRAM, and Campagnolo—stamp the length on the internal face of the crank arm, usually near the pedal threads.

1. Rotate the non-drive side (left) crank arm so it points upward.
2. Inspect the back surface of the arm near the pedal hole.
3. Look for a three-digit number (e.g., 165, 170, 172.5, or 175).
4. If the stamp is obscured by dirt or wear, use a mild degreaser to clean the area.

Pro-Tip: If the drive-side and non-drive-side arms are from different sets, always check both. While rare, mismatched crank lengths can lead to significant pelvic tilt and chronic lower back pain.

Step 2: Establishing the Primary Axis Center Point

The primary axis is the center of the bottom bracket. This is the point around which the entire crankset rotates.

1. Identify the center of the crank bolt or the hollow center of the spindle (for Shimano Hollowtech II or similar designs).
2. If the crank uses a dust cap or a solid bolt, identify the exact center point of that hardware.
3. Place the "zero" mark of your metric ruler or the fixed jaw of your calipers precisely at this center point.

Step 3: Aligning with the Secondary Axis Center Point

The secondary axis is the center of the pedal spindle. This is the point where your foot's power is transferred into the lever.

1. Extend your measuring tool down the length of the crank arm toward the pedal.
2. Identify the center of the pedal axle. Most pedals have a 6mm or 8mm hex socket in the center of the spindle, which provides a perfect visual reference for the center point.
3. Read the measurement at the exact center of this hole.

Warning: Do not measure to the edge of the crank arm. The physical length of the arm is always longer than the "crank length" because there must be material surrounding the pedal hole for structural integrity.

Step 4: Verification and Parallax Correction

To ensure your measurement is accurate, you must view the ruler or caliper scale from a perpendicular angle. Looking at the ruler from the side can cause a "parallax error," where the alignment appears shifted by 1mm to 2mm.

1. Hold the ruler flat against the side of the crank arm to minimize the gap between the tool and the surface.
2. Repeat the measurement on the opposite crank arm to confirm consistency.
3. If your measurement is 171mm or 174mm, it is highly likely the actual spec is 170mm or 175mm, as those are the standard manufacturing increments.

Step 5: Understanding Half-Millimeter Increments

Some high-performance road cranks are manufactured in 172.5mm lengths. If your measurement falls exactly between 172mm and 173mm, you are likely using this common mid-size standard. This specific length is often the default for medium-to-large road bikes (54cm to 56cm frames).

Crank Arm Length Technical Specifications and Sizing Standards

The following table outlines standard crank arm lengths across various cycling disciplines and provides a general guideline for rider height. Note that professional bike fitting should always take priority over these general benchmarks, as femur length and flexibility are the true drivers of crank selection.

Common Measurement Failures and Field Fixes

Even experienced mechanics can encounter difficulties when measuring crank arms, particularly with modern carbon fiber components or integrated power meters.

• Issue: Obstruction by Power Meter Pods




  • Root Cause: Many crank-based power meters (like Stages or 4iiii) have a plastic housing glued to the inner arm, covering the factory stamp.
  • Actionable Fix: Measure from the outer face of the crank arm instead of the inner face. Ensure the ruler remains perfectly parallel to the arm to avoid diagonal measurement inflation.

• Issue: Measuring Physical Length instead of Effective Length




  • Root Cause: A cyclist measures the total piece of metal from the rounded top to the rounded bottom.
  • Actionable Fix: Disregard the outer dimensions. Focus exclusively on the center-to-center distance between the two circular holes (the BB spindle and the pedal spindle).

• Issue: Inaccurate Centering on Hollow Spindles




  • Root Cause: Large hollow spindles (like SRAM DUB or Shimano 24mm) make it difficult to find the "dead center" with a standard ruler.
  • Actionable Fix: Measure the total diameter of the hollow spindle hole, divide by two, and add that distance to the measurement starting from the inner edge of the hole. Alternatively, use a caliper to find the distance between the edges of the two holes and then add half the diameter of each hole to get the center-to-center distance.

Frequently Asked Questions

Where is the crank length usually written on a bike?

The length is typically stamped or laser-etched on the backside of the crank arm, near the threads where the pedal attaches. It is usually a three-digit number representing millimeters. If you cannot find it there, check the area around the bottom bracket interface on the internal side of the arm.

Does changing crank length by 5mm actually matter?

Yes, a 5mm change is significant in cycling biomechanics. A shorter crank (e.g., moving from 175mm to 170mm) reduces the diameter of your pedal stroke by 10mm. This opens the hip angle at the top of the stroke, which can alleviate lower back pain and allow for a lower, more aerodynamic chest position without sacrificing breathing capacity.

Can I measure crank length without removing my pedals?

You can measure the length with pedals installed by using the center of the pedal spindle as your reference point. Most pedal spindles have a visible center point or a hex-key hole that serves as an accurate center-point marker. Ensure your ruler is held tightly against the crank arm to avoid measuring the pedal's "stand-off" distance.

Is crank length the same as "Q-Factor"?

No, crank length is the vertical measurement of the lever arm from the bottom bracket to the pedal. Q-Factor is the horizontal distance between the outside of one crank arm and the outside of the other. Crank length affects leverage and leg extension, while Q-Factor affects the width of your stance and knee alignment.

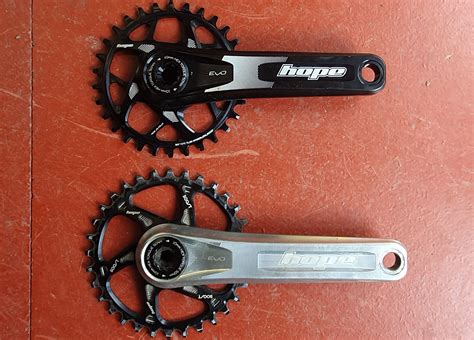

Why do mountain bikes often have longer cranks than road bikes?

Mountain bikes traditionally used longer cranks (typically 175mm) to provide more torque for slow-speed, technical climbing where high cadence is difficult to maintain. However, modern trends are shifting toward shorter cranks (165mm or 170mm) even in mountain biking to provide better ground clearance and reduce the risk of "pedal strikes" on rocks and roots.

Optimize Your Performance Through Precision Fitting

Determining your exact crank arm length is a foundational step in mastering your bicycle's ergonomics and power profile. If your measurements reveal a discrepancy between your physical height and your equipment, consulting with a professional bike fitter can help translate these numbers into a more comfortable and efficient riding experience.
