How To Measure A Kitchen For Cabinets And Renovation: A Professional SME Guide

Accurate kitchen measurement requires recording every dimension to the nearest 1/16th of an inch, documenting the exact placement of utilities, and accounting for structural irregularities like non-square corners or uneven floors. By following a clockwise measurement sequence and identifying the "centerline" of all permanent fixtures, you ensure that custom cabinetry and appliances fit perfectly without the need for costly on-site modifications.

Pre-Measurement Protocols and Equipment Checklist

Before beginning the physical measurement process, you must understand that kitchen design is a game of millimeters. Standard cabinetry is manufactured in 3-inch increments, meaning even a small error in your initial site survey can lead to a "dead" space that ruins a professional layout. You are measuring the "architectural envelope"—the raw space that will contain the kitchen—rather than just the existing cabinets.

To ensure professional-grade accuracy, assemble the following tool kit and review these prerequisite standards:

• Essential Measurement Tools: A 25-foot locking steel tape measure (with 1/16-inch markings), a digital laser distance measurer for long spans, a 4-foot carpenter’s level, a framing square, and a multi-angle ruler for non-90-degree corners.
• Documentation Materials: Large-format grid paper (1/4-inch scale is standard), a mechanical pencil, an eraser, and a digital camera or smartphone for capturing "as-built" reference photos of every wall.
• Prerequisite Technical Standards: All measurements must be recorded in inches (e.g., 144" rather than 12'). Always measure from wall-to-wall and floor-to-ceiling, ignoring existing baseboards or moldings which will likely be removed during demolition.
• Time and Budget Benchmarks: A thorough kitchen measurement for a standard 10x12 space typically requires 60 to 90 minutes of focused work. For a DIY homeowner, the cost is strictly the price of tools; for a professional site survey, fees typically range from $150 to $300 depending on complexity.

Professional Workflow for Kitchen Site Surveying

The key to a successful kitchen measurement is consistency. Professionals always work in a clockwise direction, starting from a fixed entry point and moving around the room. This ensures that no wall segment is missed and that the "closed loop" of measurements can be verified for mathematical accuracy at the end of the process.

Step 1: Draft the Floor Plan Sketch

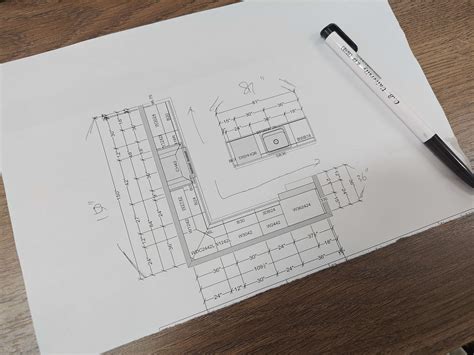

Before pulling your tape measure, create a rough "Bird’s Eye View" of the room on your grid paper. This does not need to be perfectly to scale initially, but it must include every structural feature.

1. Identify and draw all walls, including "pony walls" or islands.
2. Mark the location of every doorway and window.
3. Indicate the direction of door swings to ensure they do not collide with future cabinetry.
4. Label each wall numerically (Wall 1, Wall 2, etc.) to correspond with your detailed notes.

Pro-Tip: Use a different colored pen to mark utilities like gas lines, water valves, and electrical outlets on your sketch to prevent them from being confused with wall dimensions.

Step 2: Record Horizontal Wall-to-Wall Dimensions

Start at the far-left corner of Wall 1 and move clockwise. You will perform two types of measurements: "Overall" and "Segmented."

1. Measure the overall length of the wall from corner to corner at a height of 36 inches (standard countertop height).
2. Perform a segmented measurement: Start at the corner and measure to the outside edge of the first window or door casing.
3. Measure the width of the window or door, including the exterior trim/casing on both sides.
4. Continue measuring from the edge of the casing to the next architectural feature or the far corner.
5. Add your segmented measurements together. They must equal your overall wall measurement. If they differ by more than 1/8 of an inch, re-measure immediately.

Warning: Never measure just the window glass. Cabinetry must clear the outer edge of the decorative trim or "casing." If you plan to replace the trim with a wider style, account for that additional width now.

Step 3: Locate Utilities and Centerlines

For plumbing and appliances, "Centerlines" are the most critical data points. This is the exact middle point where the sink, dishwasher, or range must be located to align with existing infrastructure.

1. Locate the sink's drain pipe. Measure from the nearest wall corner to the center of that pipe. Mark this on your plan as "CL" (Centerline).
2. Measure the distance from the corner to the center of the gas line or the 220V electrical outlet for the range.
3. Identify all wall outlets and light switches. Measure from the floor to the bottom of the outlet box, and from the nearest corner to the center of the box.
4. Note the location of floor vents or wall-mounted radiators, as these will dictate where "toe kick" heaters or cabinet cutouts are required.

Step 4: Vertical Dimensions and Ceiling Heights

Kitchens are rarely perfectly level. You must measure the ceiling height in at least three different locations (corners and center) to identify "sag" or "crown."

1. Measure from the finished floor to the ceiling. If you plan to install new flooring over the existing layer, subtract the estimated thickness of the new material (usually 1/2 to 3/4 inch).
2. Note the height of all windows from the floor to the bottom of the windowsill (the "Sill Height"). This determines if a standard 36-inch countertop will fit under the window or if the window must be raised.
3. Record the "Soffit" dimensions if applicable. A soffit is the drywall box above the cabinets. Measure its height from the ceiling and its depth from the wall.

Step 5: Verify Squareness and Plumb

Old houses often have "settled," meaning walls may not meet at a perfect 90-degree angle. This is the leading cause of cabinet installation failure.

1. The 3-4-5 Rule: From a corner, measure 3 feet along one wall and make a mark. Measure 4 feet along the adjacent wall and make a mark. Measure the diagonal distance between the two marks. If the corner is square, the diagonal will be exactly 5 feet.
2. Check for "Plumb": Use your 4-foot level against the wall vertically. If the bubble is not centered, the wall is leaning. Note the direction of the lean so the cabinet installer knows where to "shim" the boxes.

Critical Kitchen Dimensions and Clearance Standards

To design a functional layout, your measurements must respect National Kitchen & Bath Association (NKBA) standards for ergonomics and safety. The following table outlines the technical parameters required for a standard residential kitchen.

Common Measurement Failures and Field Fixes

Even experienced professionals encounter structural anomalies. Recognizing these early in the measurement phase prevents catastrophic delays during the installation of expensive custom materials.

• The Out-of-Square Corner Failure


  • Root Cause: Foundation settling or poor framing results in a corner angle greater or less than 90 degrees, preventing cabinets from sitting flush.
  • Actionable Fix: Measure the diagonal of the entire room (corner to corner). If the diagonals are unequal, the room is a parallelogram. Provide the cabinet manufacturer with the exact diagonal dimensions so they can provide "extended stiles" or "filler strips" to scribe the cabinets to the wall.
• The Obstruction Oversight (Radiators and Vents)


  • Root Cause: Forgetting to account for the depth of a baseboard heater or a protruding HVAC vent that prevents a drawer from opening.
  • Actionable Fix: Always measure the "maximum protrusion" of any object on the wall. For drawers near corners, ensure a minimum 2-inch "filler" piece is planned to allow the drawer handle to clear the adjacent cabinet or appliance handle.
• The Floor-to-Window Height Conflict


  • Root Cause: A windowsill sits at 34 inches from the floor, but the new base cabinets and countertops require 36.5 inches of clearance.
  • Actionable Fix: You must either choose a "dropped" countertop section at the window, replace the window with a shorter unit, or use a "flush-mount" sill that integrates the countertop into the window casing.
• The Appliance Door Collision


  • Root Cause: Measuring the wall for a refrigerator but failing to account for the depth of the refrigerator doors and handles, which may hit an adjacent wall when opened.
  • Actionable Fix: Check the "Clearance for 90-degree door swing" in the appliance manufacturer’s spec sheet. Add 3–6 inches of "buffer space" if a refrigerator is placed next to a deep pantry or a structural wall.

Frequently Asked Questions

Do I measure from the drywall or the baseboard?

Always measure from the drywall or the "finished wall surface." Baseboards and moldings are temporary decorative elements and are typically removed during a remodel. Measuring from the baseboard will result in your cabinetry being too small for the actual wall space.

How do I measure for a kitchen island?

Measure the "clear floor space" rather than the island itself. Identify the distance from the perimeter cabinets to the desired island edge, ensuring a minimum of 42 inches for traffic. Mark the center point of the island's plumbing or electrical "stub-out" on your floor plan relative to the two nearest fixed walls.

What should I do if my ceiling height varies across the room?

Record the "minimum" ceiling height as your primary dimension for full-height pantry cabinets. Use the "maximum" height to determine how much crown molding or "filler" material you will need to close the gap between the top of the cabinets and the ceiling.

How do I account for wall thickness in my measurements?

When measuring doorways or transitions to other rooms, measure the "jamb depth" (the thickness of the wall including drywall on both sides). This is critical if you are planning to install cabinetry that wraps around a corner into an adjacent hallway or dining area.

Should I measure before or after removing old cabinets?

While you can take preliminary measurements with cabinets in place, "Final Production" measurements should ideally be taken after demolition. This allows you to see hidden pipe locations, structural studs, and the true condition of the corners which may have been hidden by old soffits or backsplashes.

Professional Consultation and Design Validation

Once your measurements are finalized and verified against the 3-4-5 squareness rule, the next step is translating these dimensions into a 3D CAD rendering. Accurate site data is the only way to guarantee that your investment in premium cabinetry results in a seamless, functional, and aesthetically perfect kitchen.
