How To Measure Wheelbase On A Truck: Precision Step-by-Step Guide

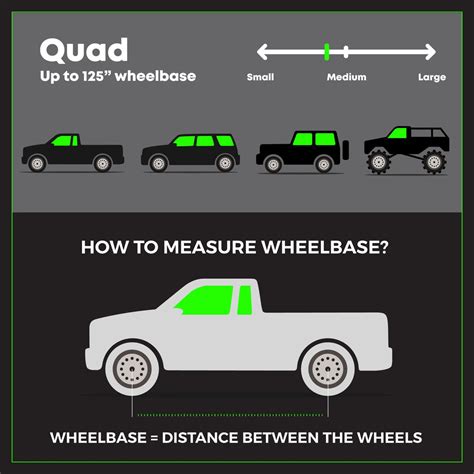

Measuring the wheelbase on a truck requires determining the exact horizontal distance between the vertical centerlines of the front steering axle and the rear drive axle. On multi-axle or tandem setups, the rear reference point shifts to the geometric midpoint between the drive axles. Utilizing a plumb bob projection method on a flat surface guarantees Society of Automotive Engineers (SAE) measurement accuracy, protecting against frame alignment errors and uneven tire wear.

Technical Equipment & Workspace Preparation Checklist

Accurate chassis measurement demands a controlled environment and calibrated tools. Vehicle sag, floor slope, and improper steering angles introduce measurement deviations exceeding acceptable field tolerances (which must remain within 0.0625 inches or 1.6 mm side-to-side).

Essential Measurement Equipment

• 50-Foot Steel Tape Measure: Standard fiberglass tapes stretch under tension; use a heavy-duty, temperature-stable steel tape measure with 1/32-inch graduations.
• Brass Plumb Bobs (2 Units): Minimum 16 oz weight to ensure rapid stabilization and pinpoint vertical ground transfer.
• Chalk Line & Precision Paint Marker: For laying floor baselines and marking permanent chassis reference points.
• Calibrated Tire Pressure Gauge: Ensures equal inflation across all duals and steer tires to prevent chassis lean.
• Framing Square & Laser Level: Used to project perpendicular lines from the frame rails when grease caps block hub centers.

Mandatory Operational Prerequisites

• Surface Standard: Smooth, level concrete floor with less than 0.25 inches of slope over a 30-foot span.
• Vehicle Configuration: Full operating fluid levels, empty bed/cargo box, tire pressures calibrated strictly to manufacturer cold inflation specs, and air suspension (if equipped) set to standard ride height with air tanks fully charged.
• Time & Cost Benchmark: Expect 30 to 45 minutes for a complete multi-point measurement; basic equipment setup costs under $60.

Precision Execution Workflow for Measuring Truck Wheelbase

[Note: Procedural workflow executed via standardized mechanical steps below.]

Step 1: Chassis Surface Stabilization and Wheel Alignment

Position the truck on a flat concrete surface. Drive the vehicle straight forward for at least twenty feet before stopping to unload side-scrubbing forces on the tires and align the steering linkage to dead-center.

1. Turn off the ignition and engage the parking brake or block the drive wheels using heavy-duty chocks.
2. If working on a commercial heavy-duty truck equipped with air suspension, allow the air system to reach governor cutoff (typically 120–135 PSI) to ensure the leveling valves keep the frame at true operational height.
3. Confirm that the steering wheel is perfectly centered. Verify that front-wheel toe-in is neutral relative to the frame rails.

Warning: Never measure wheelbase on an unlevel gravel drive or inclined surface. A floor slope of just two degrees can distort plumb bob drops by up to 0.25 inches, rendering chassis calculations invalid for body mounting or frame lengthening.

Step 2: Establish Front Axle Centerline Projections

Because hub caps, dust covers, and large offset wheels block direct longitudinal tape pulls, project the exact center of the axle spindle down to the floor surface using plumb bobs.

1. Locate the absolute center point of the front wheel hub or grease cap. If an axle dust cap features a recessed center dimple, use this as your true center.
2. Suspend the plumb bob string over the outer lip of the fender or upper control arm, positioning the line directly across the geometric center of the axle hub.
3. Allow the brass point to hover 1/16-inch above the concrete surface until it stops swinging entirely.
4. Mark the floor with a fine-tipped paint pen directly under the plumb bob point. Label this mark FL (Front Left) or FR (Front Right).

Pro-Tip: If grease caps are asymmetrical or damaged, place a magnetic centering tool or specialized axle alignment cone over the axle end to guarantee that your plumb line hangs precisely on the spindle centerline.

Step 3: Determine Rear Axle Reference Points (Single vs. Tandem Configurations)

The rear measurement point varies based on whether the truck utilizes a single rear axle, a tandem drive axle group, or a tridrive setup.

Single Axle Units (Light Pickups, Class 3–6 Straight Trucks)

1. Drop the plumb bob directly from the center of the rear axle shaft flange or grease cap down to the floor.
2. Mark the point on the concrete and label it RL (Rear Left) or RR (Rear Right).

Tandem Axle Units (Class 7–8 Commercial Vehicles)

1. Measure the exact center-to-center distance between the forward drive axle hub and the rear drive axle hub (standard tandem axle spacing is typically 52 inches or 54 inches).
2. Divide this measurement by two to identify the exact geometric center of the tandem suspension group (the equalization center).
3. Drop a plumb line at this calculated midpoint along the frame rail or equalizer beam, projecting the mark directly to the floor. Label this point TL (Tandem Left) or TR (Tandem Right).

Step 4: Execute Longitudinal Measurement and Squareness Check

Hook the steel tape measure firmly on the front reference mark on the floor and extend it parallel to the vehicle frame to the rear reference mark.

1. Measure the exact distance from mark FL to mark RL (or TL for tandems). Record this value to the nearest 1/16-inch.
2. Move to the opposite side of the vehicle and repeat the process, measuring from mark FR to mark RR (or TR).
3. Compare the left-side and right-side measurements. The difference between the two sides represents your chassis thrust alignment delta.
4. Perform a diagonal cross-check: Measure from FL to RR and from FR to RL. Equal diagonal lengths confirm that the frame is square and free of diamond-frame distortion.

Step 5: Calculate Cab-to-Axle (CA) and Frame Overhang Dimensions

Body builders and equipment upfitters require secondary metrics derived directly from the primary wheelbase measurement.

1. Cab-to-Axle (CA): Measure horizontally from the back of the truck cab (excluding rubber cab-seal trim) to the centerline of the rear axle (or tandem midpoint).
2. Afterframe (AF): Measure from the centerline of the rear axle to the absolute rearmost point of the frame rail.
3. Calculate Total Frame Length: $Wheelbase + CA + AF = Total Upper Chassis Span$.

Commercial Truck Wheelbase Specifications & Dimensional Metrics

The table below outlines standard factory parameters, reference points, and acceptable manufacturing alignment tolerances across major commercial vehicle classes.

Resolving Chassis Measurement Discrepancies and Misalignments

Scenario 1: Asymmetric Left-to-Right Wheelbase Values (Dog-Tracking)

• Root Cause: A variance exceeding 0.25 inches between left and right side measurements indicates a shifted rear axle spring center pin, broken leaf spring pack, or damaged suspension trailing arm bushing. This causes the truck to drive down the road at an angle ("dog-tracking").
• Actionable Fix: Inspect U-bolts for proper torque. Measure from the front steering axle pin directly to the front spring hanger pins on both sides to locate the shifted axle component. Replace sheared spring center pins or worn torque rod bushings before re-measuring.

Scenario 2: Drift in Tandem Midpoint Calculations

• Root Cause: Measuring tandem wheelbases from tire edges or bent wheel rims instead of underlying hub forgings introduces severe mathematical drift due to sidewall bulge and rim runout.
• Actionable Fix: Disregard tire surfaces entirely. Remove outer dual wheels if grease caps are obstructed, or use an axle flange alignment plate bolted directly to the axle studs to re-establish true hub centerlines.

Scenario 3: Dust Cap Interference Preventing Axle Center Access

• Root Cause: Prominent oil-bath hub caps or extended axle shaft covers prevent a tape measure or plumb line from resting flush against the axle face.
• Actionable Fix: Mount a magnetic frame square across the face of the tire rim, aligned with the outer lip. Project a 90-degree line out past the hub protrusion, then drop your plumb line from the horizontal leg of the square.

Scenario 4: Sagging Tape Line Over Extended Frames

• Root Cause: On long-wheelbase commercial trucks (over 250 inches), unsupported steel tape measures bend downward due to gravity, adding up to 0.5 inches of false length to the overall reading.
• Actionable Fix: Maintain a minimum pulling tension of 10 lbf (pounds-force) on the steel tape, or snap a tensioned chalk line on the concrete floor directly beneath the chassis and measure the line on the floor rather than suspending the tape in mid-air.

Frequently Asked Questions

How do you measure wheelbase on a tandem axle truck?

On a tandem axle truck, wheelbase is measured from the center of the front steering axle to the exact midpoint between the two rear drive axles. Measure the distance between the center of the front axle and the center of the forward drive axle, then add half of the distance between the two rear drive axles.

Is wheelbase measured from the center of the hub or the edge of the tire?

Wheelbase is strictly measured from the geometric center of the axle hub (or spindle center), never from the edge of the tire tread or sidewall. Tire rubber flexes, wears unevenly, and deforms under load, making it unsuitable for structural chassis measurements.

What is the difference between wheelbase and cab-to-axle (CA) distance?

Wheelbase is the overall distance between the front and rear axle centerlines, controlling vehicle turning radius and weight distribution. Cab-to-Axle (CA) is the distance from the back of the cab to the centerline of the rear axle, which dictates the length and mounting position of commercial truck bodies, flatbeds, or dump boxes.

How much variance is allowed between the left and right wheelbase measurements?

Standard manufacturing alignment specifications allow a maximum variance of 0.0625 inches (1/16 in) on light trucks and up to 0.125 inches (1/8 in) on heavy-duty commercial trucks. Any variation greater than this indicates potential frame damage, bent suspension components, or severe alignment issues.

Does tire inflation affect wheelbase measurement accuracy?

Yes, uneven tire inflation alters the ride height and pitch of the vehicle frame rail, which tilts the axle angle slightly and skews plumb bob projections. Always inflate all tires to recommended cold operating pressures before taking baseline chassis measurements.

Optimize Your Commercial Vehicle Alignment and Fleet Specifications

Establishing accurate chassis measurements is essential for custom body mounting, frame modifications, and commercial fleet safety compliance. Verify your measurements against OEM vehicle build sheets before altering frame rails or mounting heavy vocational equipment.
