How To Recycle Asphalt: Technical Field Guide And Engineering Protocols

Reclaimed Asphalt Pavement (RAP) recycling requires milling distressed pavement, fractionating salvaged aggregate, and restoring aged bitumens through chemical rejuvenators and precise volumetric rebalancing. Executing hot or cold recycling workflows demands maintaining mix temperatures between 280°F and 320°F for hot processes, controlling RAP moisture below 1.5%, and achieving compaction levels between 92% and 96% of maximum theoretical specific gravity ($G_{mm}$). When designed under Superpave specifications, recycled asphalt mixtures match or exceed the structural capacity of 100% virgin hot-mix asphalt.

Technical Requirements & Pre-Recycling Setup Checklist

Before initiating any pavement reclamation project, engineers and paving superintendents must characterize the existing asphalt matrix and mobilize specialized reprocessing machinery. Reclaiming asphalt requires verifying binder aging levels, aggregate gradations, and underlying subgrade stability to select the appropriate recycling methodology.

Essential Equipment, Tools, and Additives

• Extraction & Milling Machinery: Cold planer equipped with carbide-tipped conical milling bits, or a full-lane asphalt reclaimer/stabilizer.
• Processing & Plant Units: Screening/crushing plant for RAP fractionation, portable batch asphalt reclaimer, or a continuous drum-mix plant equipped with a dedicated RAP collar.
• Laydown & Compaction Equipment: Floating-screed asphalt paver, dual-drum vibratory steel rollers (10–12 ton operating weight), and a 15–25 ton pneumatic-tired roller.
• Chemical Rejuvenators & Binders: Bio-based tall oils, aromatic maltene-rich petroleum extracts, or soft asphalt binders (PG 58-28 or PG 52-34) formulated per ASTM D4552 standards.

Mandatory Prerequisite Standards & Testing Protocols

• AASHTO M 323 / R 35: Standard Specification and Practice for Superpave Volumetric Mix Design.
• ASTM D6307 / AASHTO T 308: Standard Test Method for Asphalt Content of Hot-Mix Asphalt by Ignition Method.
• ASTM D2172: Standard Test Methods for Quantitative Extraction of Bitumen from Hot-Mix Asphalt.
• ASTM D2041 ($G_{mm}$): Theoretical Maximum Specific Gravity and Density of Bituminous Paving Mixtures.

Operational Benchmarks

• Target RAP Moisture Content: Under 1.5% total moisture by weight before thermal processing.
• Ambient Operational Thresholds: Minimum 50°F (10°C) ambient and surface temperature with a rising forecast for hot processes; minimum 60°F (15°C) for cold emulsified processes.
• Production Yield Expectations: 100 to 350 tons per hour depending on plant capacity, milling depth, and recycling method (In-Place vs. Central Plant).

Industrial and On-Site Asphalt Recycling Workflow

Step 1: Pavement Extraction and Milling Optimization

Perform full-depth or partial-depth milling using a cold planer to strip the distressed pavement layer. Set the milling drum speed and forward track speed to control particle sizing, ensuring the milled aggregate does not fracture excessively.

1. Calibrate the milling machine depth control system to remove specified surface layers (typically 1.5 to 3.0 inches).
2. Maintain forward track speeds between 30 and 45 feet per minute to yield a consistent RAP gradation with minimal fines passing the #200 (0.075 mm) sieve.
3. Transfer milled RAP directly into haul trucks using the integrated loading conveyor, minimizing ground contamination from subgrade soils.

Pro-Tip: Inspect and replace worn milling teeth daily. Blunted carbide cutting bits increase shear friction, generating excessive mineral dust ("fines") that degrades the Voids in Mineral Aggregate (VMA) profile during re-mix calculations.

Step 2: Fractionation, Crushing, and Stockpile Management

Process the raw RAP through a screening and crushing circuit to categorize material into distinct size fractions. Unfractionated RAP leads to high binder content variability and inconsistent mix performance.

1. Screen raw RAP into at least two fractions: Coarse RAP (retained on the 3/8-inch or #4 sieve) and Fine RAP (passing the 3/8-inch or #4 sieve).
2. Pass oversized material (>3/4-inch) through a horizontal shaft impactor (HSI) set to low-impact velocity to break agglomerated asphalt clusters without fracturing natural aggregate grains.
3. Form stockpiles in low, horizontal lifts (maximum 10 to 12 feet high) using a wheel loader. Cover stockpiles with sloped tarps to protect material from moisture absorption.

Warning: Never drive heavy equipment directly over RAP stockpiles. Vehicle weight causes cold-welding of asphalt-coated particles, forming dense, unworkable mats within the pile that jam plant cold-feed bins.

Step 3: Moisture Removal and Thermal Reconditioning

Whether using a central hot-mix plant or a portable batch asphalt reclaimer, RAP must be heated safely without scorching the residual bitumen. Direct flame exposure on aged asphalt causes severe oxidation and hazardous emissions.

1. Introduce fractionated RAP into a plant drum via a dedicated RAP collar located downstream of the primary burner flame zone, allowing indirect heating via superheated virgin aggregates.
2. For portable on-site batch recyclers, load raw RAP into the heating chamber and run indirect infrared or low-emission diesel burner heating cycles until internal batch temperatures reach 280°F–320°F (138°C–160°C).
3. Monitor exhaust gas temperatures and stack emissions continuously to ensure organic volatile compounds remain below regional air quality limits.

Step 4: Chemical Rejuvenation and Volumetric Balancing

Aged asphalt binder suffers from an depleted ratio of maltenes to asphaltenes, rendering the pavement brittle. Restoring performance requires dosing liquid chemical rejuvenators and supplemental virgin asphalt binder.

1. Calculate the required percentage of virgin binder and liquid rejuvenator using the Abson recovery method (ASTM D1856) or chemical ignition testing to determine residual binder viscosity and penetration value.
2. Inject liquid rejuvenator (typically 0.5% to 2.5% by weight of total binder) directly into the mix cycle to restore the target Performance Grade (PG) binder properties (e.g., PG 64-22).
3. Add virgin crushed aggregates as required by the Superpave mix design to achieve 4.0% target air voids ($V_a$), a minimum 14.0% Voids in Mineral Aggregate (VMA), and 65%–75% Voids Filled with Asphalt (VFA).

Step 5: Laydown, Compaction, and Density Verification

Transport and place the recycled asphalt mixture immediately to prevent heat dissipation. Material placed below minimum compaction temperatures will suffer from air void retention, leading to early moisture damage.

1. Discharge the recycled asphalt mixture into the paver hopper at a minimum temperature of 285°F (140°C). Lay the mat at the specified uncompacted thickness (accounting for a 20% to 25% roll-down factor).
2. Initiate breakdown rolling immediately behind the paver using a 10–12 ton tandem vibratory roller operating at high frequency and low amplitude (3–4 mph). Complete 3 to 5 coverages.
3. Follow with a heavy pneumatic-tired roller (15–25 tons) while the mat temperature remains above 220°F (104°C) to knead the surface and seal microscopic fissures.
4. Execute static finish rolling with a smooth-drum steel roller until all roller marks are eliminated and the surface temperature drops below 140°F (60°C).
5. Verify compaction densities on-site using a calibrated nuclear density gauge or non-nuclear pavement density indicator (ASTM D7113) to ensure target field density reaches 92% to 96% of maximum theoretical specific gravity ($G_{mm}$).

Comparative Analysis of Asphalt Recycling Methodologies

Selecting the correct process depends on structural requirements, localized pavement damage, available machinery, and economic thresholds.

Pavement Defects and Recycling Field Remediation

Unanticipated field conditions during asphalt recycling can result in structural degradation or surface failure. The following protocols address common operational issues encountered during processing.

Thermal Cracking and High Mat Brittle-Index

• Root Cause: Overheating RAP in the heating drum, causing volatilization of light-oil fractions and thermal oxidation of bitumen; or under-dosing chemical rejuvenator relative to aged binder stiffness.
• Actionable Fix: Lower burner flame intensity or adjust the plant mix cycle to reduce drum exit temperatures to below 310°F. Perform an ignition extraction test to recalculate binder penetration and increase maltene-rich chemical rejuvenator dosage by 0.25% to 0.50% by weight of total binder.

Surface Ravelling and High In-Place Air Voids

• Root Cause: Inadequate field compaction due to rapid mat cooling, elevated RAP moisture content exceeding 2.0%, or insufficient effective virgin asphalt binder ($P_{be}$).
• Actionable Fix: Increase the pneumatic tire roller ballast weight and ensure breakdown compaction occurs above 240°F. If the mat has cooled below 180°F, apply a light, slow-setting fog seal emulsion (e.g., SS-1h diluted 1:1 with water) at a rate of 0.08 to 0.12 gal/yd² to bind loose surface aggregate.

Rutting, Flushing, and Plastic Deformation

• Root Cause: Over-dosing liquid rejuvenators or low-viscosity virgin binder; excessive fines (passing #200 sieve exceeding 8%); or total effective fluid content exceeding volumetric void capacity.
• Actionable Fix: Halt production and modify the mix design by adding 10% to 20% coarse, angular virgin crushed stone (e.g., AASHTO No. 57 aggregate) to re-establish the stone-on-stone skeleton. Reduce total rejuvenator dosing by 0.2% to 0.4%.

Frequently Asked Questions

Can asphalt pavement be recycled multiple times without structural loss?

Yes, asphalt can be recycled indefinitely provided the aged binder is rebalanced using appropriate chemical rejuvenators and virgin aggregates. Each recycling cycle stiffens the binder due to oxidation, but proper testing and rejuvenator dosage restore dynamic modulus and fatigue resistance to levels matching virgin HMA.

What is the main operational difference between HIR and CIR?

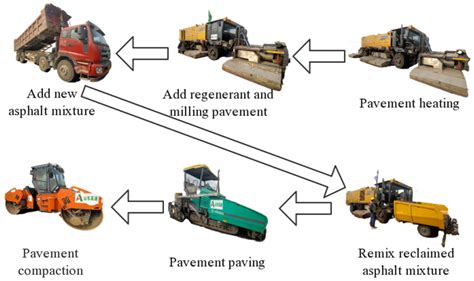

Hot In-Place Recycling (HIR) uses mobile infrared heaters to soften the top 1.5 to 2 inches of existing pavement, milling and mixing it with rejuvenators on site before re-laying it while hot. Cold In-Place Recycling (CIR) mills the pavement at ambient temperatures, processing it with asphalt emulsions or foamed asphalt to create a stabilized base layer that requires an asphalt overlay.

How do you determine the correct amount of rejuvenator for RAP?

Rejuvenator dosages are calculated by extracting and recovering the aged bitumen from representative RAP samples using ASTM D1856 (Abson Method). The recovered binder undergoes absolute viscosity (ASTM D2171) and penetration (ASTM D5) testing; blend charts are then used to calculate the exact percentage of rejuvenator required to shift the binder's performance grade back to local climate specifications.

What is the maximum percentage of RAP allowed in high-specification asphalt mixes?

While standard state and federal specifications historically capped RAP at 15% to 20% without changing binder grades, modern Superpave mix protocols allow up to 50% RAP in hot-mix asphalt and up to 100% in cold recycling applications, provided binder blending equations are satisfied and volumetric parameters ($V_a$, VMA, VFA) are maintained.

Optimize Your Pavement Recycling Operations

Integrating technical RAP milling, chemical rejuvenation, and controlled compaction allows paving projects to lower raw material expenditures while meeting structural engineering standards. Reach out to our technical paving specialists to review your RAP stockpile gradations and formulate custom mix designs for your next reclamation project.
