How To Remove Freon From A Car Safely And Legally
Removing refrigerant from an automotive air conditioning system requires specialized recovery equipment to capture R-134a or R-1234yf gases safely and lawfully. Venting refrigerant into the atmosphere violates federal environmental regulations under Section 608 of the Clean Air Act, carrying severe legal penalties and ecological damage.
Pre-Operation and Equipment Checklist
Before beginning any automotive air conditioning service, you must understand that modern vehicle climate control systems operate under high pressure and contain hazardous chemical compounds. R-134a (tetrafluoroethane) and R-1234yf (tetrafluoropropene) can cause severe frostbite upon skin contact and release toxic phosgene gas if exposed to open flames. Attempting to bleed or vent these gases manually is both illegal and dangerous.
To perform this procedure correctly, you must rely on a certified recycling center or utilize professional-grade recovery infrastructure.
- Essential Tools & Equipment: EPA-certified refrigerant recovery machine, manifold gauge set (R-134a or R-1234yf specific), Department of Transportation (DOT)-approved refrigerant recovery tank, electronic refrigerant scale, safety glasses, and heavy-duty nitrile or leather-palmed gloves.
- Prerequisite Standards: Section 609 certification from the United States Environmental Protection Agency (EPA) is legally required for anyone recovering mobile automotive refrigerants for commercial purposes. Always verify that your recovery tank is certified and not past its hydro-test expiration date.
- Benchmarks: Budget approximately 30 to 45 minutes for a complete, evacuated recovery cycle, with estimated professional shop costs ranging from one hundred to two hundred fifty dollars if you choose to bypass DIY equipment acquisition.
Step-by-Step Automotive Refrigerant Recovery Workflow
Step 1: Verify System Pressure and Isolate the Vehicle
Ensure the vehicle engine is completely turned off and the ignition is in the locked position to prevent accidental engagement of the compressor clutch. Locate the high-side and low-side service ports on the vehicle air conditioning lines, which are typically protected by plastic caps labeled H and L or Red and Blue. Remove these caps and inspect the Schrader valves inside for oil residue or leakage, replacing the valve cores beforehand if any degradation is visible.
Warning: Never connect recovery equipment to a system that has been contaminated with unapproved sealants or propane-based hydrocarbon retrofit gases, as this can cause cross-contamination and catastrophic tank explosions.
Step 2: Connect the Manifold Gauges and Recovery Machine

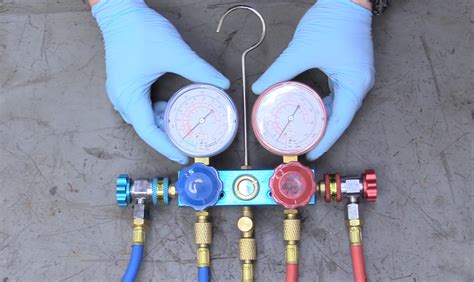

Attach the low-side (blue) service hose from your manifold gauge set to the vehicle's low-pressure service port and the high-side (red) hose to the high-pressure service port. Ensure both manifold hand valves are closed. Next, connect the center service hose (yellow) to the inlet port of your EPA-certified refrigerant recovery machine. Connect the outlet port of the recovery machine via a separate hose to the vapor port of your DOT-approved recovery cylinder, ensuring the cylinder's liquid/vapor valve is initially cracked open.
Step 3: Evacuate and Recover the Refrigerant
Turn on the refrigerant recovery machine and open the low-side and high-side manifold valves to allow the machine to draw gas from the vehicle system. Monitor the electronic scale and the compound gauges closely as the system pressure drops into a vacuum. Continue running the recovery machine until the system holds a steady vacuum of at least 15 inches of mercury (inHg) for a minimum of two minutes, which proves that all liquid and vapor phases of the Freon have been successfully extracted.
Pro-Tip: Warming the vehicle engine bay slightly or using a specialized heating blanket on the recovery tank can accelerate the vapor recovery process by maintaining optimal pressure differentials.
Step 4: Isolate the Tank and Measure Recovered Weight
Close the valves on the recovery cylinder and shut off the recovery machine immediately once the target vacuum is achieved. Disconnect your manifold hoses carefully, keeping rags wrapped around the service ports to catch any trace amounts of pressurized refrigerant oil. Weigh the recovery tank on your electronic scale and subtract the initial tare weight of the empty tank to calculate the exact mass of the recovered refrigerant, ensuring you do not exceed the 80 percent fill limit capacity mandated by safety standards.
Removing Freon from Car Without Recovery Machine: How-To
Refrigerant Classification and Handling Parameter Comparison
| Parameter | R-134a (HFC) | R-1234yf (HFO) | R-12 (CFC) |
|---|---|---|---|
| Global Warming Potential (GWP) | 1,430 | < 1 | 10,900 |
| Ozone Depletion Potential (ODP) | Zero | Zero | High |
| Flammability Rating (ASHRAE) | A1 (Non-Flammable) | A2L (Mildly Flammable) | A1 (Non-Flammable) |
| Required Recovery Equipment | Standard R-134a Recovery Unit | Dedicated R-1234yf Recovery Machine | Vintage CFC Certified Recovery Unit |
Common System Recovery Failures and Field Fixes
- Root Cause: Recovery machine fails to pull a deep vacuum or stalls mid-cycle.
- Actionable Fix: Check for moisture or oil blockages in the manifold hoses, or replace worn internal seals within the recovery compressor head assembly.
- Root Cause: Recovery tank weight exceeds the 80 percent maximum fill limit.
- Actionable Fix: Immediately bleed excess vapor into a secondary, empty, certified recovery container using proper temperature-pressure balancing techniques.
- Root Cause: Service port adapters leak refrigerant during hose connection.
- Actionable Fix: Replace the degraded rubber O-rings inside the quick-disconnect couplers and ensure the service couplers are squarely locked onto the vehicle fittings.
Frequently Asked Questions
Can I legally vent car Freon into the atmosphere?
No, venting automotive refrigerants like R-134a or R-1234yf into the atmosphere is strictly illegal under Section 608 and Section 609 of the Clean Air Act. Violators face substantial civil and criminal penalties enforced by the EPA, along with bounties paid to whistleblowers.
What equipment do I need to remove Freon at home?
Removing Freon legally at home requires an EPA-certified refrigerant recovery machine, a manifold gauge set, a DOT-approved recovery cylinder, and an accurate scale. Because professional-grade recovery machinery is expensive, most DIY mechanics prefer having a local service shop evacuate the system.
Can I reuse recovered Freon in my car?
Recovered refrigerant cannot typically be reintroduced into a vehicle without being recycled or reclaimed to meeting strict purity standards, such as ARI-700 specifications. Most hobbyists store the recovered gas in the tank and deliver it to a local automotive parts store or scrap facility that accepts hazardous chemical waste.
What happens if Freon touches my skin?
Liquid Freon expands rapidly upon contact with ambient air, dropping to extreme sub-zero temperatures that cause immediate cryogenic frostbite and chemical burns. Always wear protective gloves and safety glasses whenever handling service hoses or disconnecting automotive air conditioning components.
