Master Guide To Front Bumper Removal: Professional Techniques And Safety Protocols

Removing a front bumper involves the systematic extraction of upper radiator shroud fasteners, wheel well liner screws, and underbody splash shield bolts to release the bumper cover from its mounting brackets. The process requires careful management of plastic friction clips and the disconnection of integrated electrical harnesses for fog lights and ADAS sensors to ensure the fascia is removed without structural or aesthetic damage.

Pre-Removal Logistics and Technical Toolkit

Before initiating the removal process, understanding the structural assembly of a modern automotive fascia is paramount. Most contemporary vehicles utilize a "bumper cover" made of thermoplastic polyolefin (TPO) or polycarbonate blends, which is purely aesthetic and aerodynamic. This cover is separate from the actual steel or aluminum "impact bar" (the structural bumper) located behind it. Removing the cover is a common prerequisite for headlight replacement, grille upgrades, radiator repairs, or paint restoration.

The duration of this procedure typically ranges from 45 to 90 minutes for a novice, while an experienced technician can complete the task in approximately 20 minutes. Success depends on having the correct leverage tools to prevent the "blooming" or stripping of plastic fasteners, which are notoriously brittle in colder climates or on older high-mileage vehicles.

Essential Equipment and Materials

• Socket Set (Metric): 8mm, 10mm, and 12mm deep-well sockets are the industry standard for bumper-to-chassis connections.
• Torx Bit Set: Specifically T20, T25, and T30 drivers, commonly required for European (VAG, BMW, Mercedes) and late-model American (Ford, GM) vehicles.
• Nylon Trim Removal Kit: Non-marring pry tools are essential to prevent scratching the clear coat or gouging the plastic mounting tabs.
• Fastener Pliers: Specialized pliers designed to lift the center pin of plastic push-rivets without shearing the heads.
• Magnetic Parts Tray: Critical for organizing various screw lengths and clip types to ensure correct reassembly.
• Safety Gear: Nitrile gloves for grip and eye protection to shield against falling road debris when working under the chassis.
• Moving Blanket or Padded Stand: To place the bumper once removed, preventing abrasive damage to the exterior paint.

Prerequisite Standards

• Surface Temperature: Ensure the vehicle is in an environment above 60°F (15°C). Cold plastic is prone to cracking at the clip interfaces.
• Battery Isolation: While not always mandatory, disconnecting the negative battery terminal is recommended if the vehicle is equipped with sensitive Radar/Lidar sensors or airbag impact sensors located near the bumper mounts.

The Systematic Bumper Detachment Workflow

The removal of a front bumper follows a logical "Top-Down, Outside-In" sequence. This ensures the weight of the bumper remains supported by the primary upper mounts until the final stage of the process, preventing the fascia from sagging and breaking the side mounting brackets.

Step 1: Upper Fascia and Radiator Shroud Access

Begin by opening the hood and identifying the plastic shroud covering the gap between the grille and the radiator core support. This shroud is usually held by a series of 6 to 10 plastic push-pins.

1. Use a flat-head screwdriver or a trim tool to pop the center "plunger" of each plastic rivet.
2. Once the plunger is raised, the entire rivet body can be lifted out.
3. Remove any 10mm bolts that may be integrated into the top of the grille assembly.
4. Lift the shroud away and store it in a clean area. You should now see the top mounting tabs of the bumper cover resting on the core support.

Pro-Tip: If a plastic push-pin refuses to release, do not force it. Apply a small amount of silicone-based lubricant to the center pin. If it still breaks, these are universal components that can be replaced cheaply at any auto parts store; never attempt to "rig" the bumper back on with zip ties during reassembly.

Step 2: Wheel Well Liner and Fender Interface

The most critical connection points are located where the bumper meets the front fenders. This seam is held together by a combination of screws and internal "snap-in" plastic brackets.

1. Turn the steering wheel fully to the left to gain access to the right-hand wheel well (and vice versa).
2. Locate the fasteners along the edge of the fender liner. There are typically 2 to 4 screws (usually 8mm or Torx) and several push-pins.
3. Peel the flexible liner back slightly to reveal the "hidden" bolt that secures the corner of the bumper to the metal fender. This bolt usually faces vertically upward.
4. Remove this hidden bolt using a socket and extension. Repeat this entire process for the opposite side of the vehicle.

Warning: Failure to remove the hidden vertical bolt before pulling the bumper will result in the immediate shearing of the plastic mounting tab on the bumper cover, making it impossible to achieve a flush fitment upon reinstallation.

Step 3: Underbody Splash Shield Disengagement

The bottom of the bumper is bolted to the under-engine splash shield or the lower radiator cross-member. This area is often the dirtiest and most prone to hardware corrosion.

1. Position yourself under the front lip of the car.
2. Remove the series of bolts or screws (often 10mm or T25) spanning the width of the bumper's lower edge.
3. On some vehicles, you may need to remove the entire front section of the under-tray to release the bumper.
4. Check for "scuff plates" or air deflectors that might be interlocked with the bumper skin and remove them accordingly.

Step 4: Electrical Harness and Sensor Management

Before the bumper is fully pulled away from the chassis, you must account for all electronic components integrated into the fascia.

1. Gently pull the corners of the bumper away from the fenders until they "pop" out of their snap-brackets.
2. With the bumper slightly loose, peek behind the fog light housings.
3. Depress the locking tabs on the electrical connectors for the fog lights, turn signals, and ambient temperature sensors.
4. If the vehicle is equipped with Parking Assist (ultrasonic sensors) or Adaptive Cruise Control (radar units), locate the primary wiring harness plug (usually located on the driver’s side frame rail) and disconnect the master lead.

Step 5: Final Fascia Disengagement and Storage

1. Stand at the front-center of the vehicle.
2. Support the weight of the bumper with one hand on the lower grille and the other on the upper edge.
3. Lift the upper mounting tabs off the radiator support pegs.
4. Pull the bumper straight forward away from the car. If you feel resistance, stop immediately and re-inspect the wheel well corners for missed fasteners.
5. Place the bumper face-up on a padded surface (moving blanket) to prevent the weight of the assembly from scratching the paint.

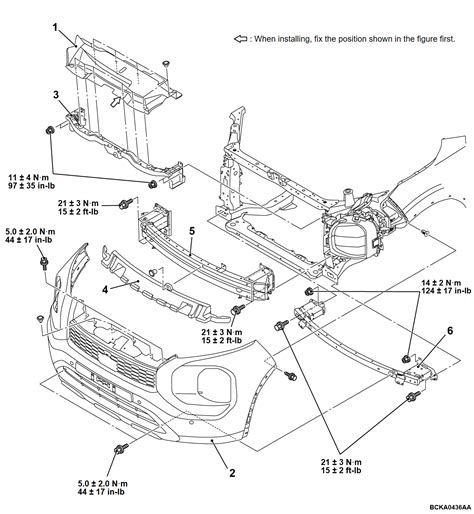

Automotive Fastener Specifications and Benchmarks

Understanding the hardware you are handling is vital for proper torque and component integrity. The following table outlines the standard fasteners encountered during a front bumper removal.

Resolving Common Removal Obstacles and Component Failures

In real-world DIY scenarios, things rarely go as smoothly as a factory manual suggests. Below are the most common failures encountered during bumper removal and their professional remedies.

• Scenario: Seized Underbody Bolts




  • Root Cause: Exposure to road salt and moisture causes galvanic corrosion between the steel bolt and the nut clip (u-nut) attached to the plastic tray.
  • Actionable Fix: Saturate the bolt with a high-quality penetrant (such as PB Blaster or Liquid Wrench) and allow it to dwell for 15 minutes. Use a "rocking" motion—tightening slightly then loosening—to break the oxidation. If the u-nut spins freely in the plastic, you may need to use pliers to hold the nut from above while unscrewing.

• Scenario: Shattered Plastic Push-Pins




  • Root Cause: UV degradation and heat cycles make the nylon brittle, causing the heads to snap off during extraction.
  • Actionable Fix: Use a drill with a bit slightly smaller than the rivet hole to core out the center of the broken pin. Once cored, the remains can be pushed through. Always keep a "universal trim clip assortment" on hand for these inevitable breakages.

• Scenario: Bumper Misalignment Upon Reinstallation




  • Root Cause: The side mounting brackets (the plastic rails attached to the fender) have been bent downward or the bumper tabs are not fully seated in the "teeth" of the bracket.
  • Actionable Fix: Inspect the white or black plastic brackets on the fender for damage. If they are sagging, loosen their mounting screws, push them upward to the correct body line, and retighten. Ensure you hear a distinct "click" when snapping the bumper back into these rails.

Frequently Asked Questions

Do I need to recalibrate my sensors after removing the bumper?

If your vehicle has ADAS (Advanced Driver Assistance Systems) features like Automatic Emergency Braking or Lane Keep Assist, and the sensors are mounted directly to the bumper, you generally do not need recalibration as long as the sensors were not disconnected from their internal brackets and the bumper is reinstalled in its original position. However, if the radar unit was hit or the mounting angle changed, a professional calibration at a dealership is mandatory for safety.

Can I drive the vehicle while the front bumper is removed?

While mechanically possible, it is legally and technically ill-advised. Most jurisdictions require front license plates and turn signals to be visible, which are often housed in the bumper. Furthermore, the lack of an aerodynamic fascia causes the wheel well liners to catch air like parachutes, which can cause them to fly off or rub against the tires at highway speeds.

How do I prevent the bumper from "sagging" after putting it back on?

Sagging is usually caused by failing to reinstall all of the lower underbody bolts or using the wrong size push-pins on the top shroud. Ensure the "hidden" vertical bolts in the fender corners are snug, as these provide the primary lift for the bumper's side profile.

What is the best way to clean the area behind the bumper?

With the bumper removed, you have rare access to the AC condenser and radiator. Use low-pressure compressed air or a soft brush to remove leaves and road debris from the cooling fins. Avoid using high-pressure washers, as they can easily bend the delicate aluminum fins, reducing cooling efficiency.

Enhance Your Automotive Maintenance Skills

Mastering the removal of the front bumper is a gateway to performing more advanced repairs and customizations on your vehicle. For those looking to dive deeper into DIY maintenance, invest in a high-quality factory service manual to access specific torque values and harness routing diagrams tailored to your exact year, make, and model.
