How To Repair Home Foundation Crack And Settlement Failures: A Complete Engineering Guide

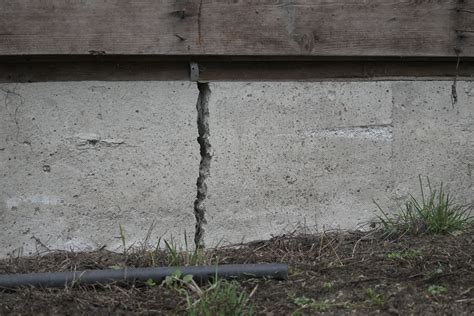

Structural foundation repair requires stabilizing load-bearing soils, lifting settled concrete footings with engineered steel piers, and sealing fissures using high-pressure epoxy injections. Successful remediation depends on distinguishing cosmetic shrinkage from active structural settlement, driving underpinning supports to a verified load-bearing stratum, and correcting the drainage anomalies that trigger soil volume fluctuations.

Engineering Evaluation, Safety Protocols, and Diagnostic Equipment

Before executing any physical remediation, you must conduct a thorough diagnostic assessment of the structure. Foundation movement is primarily driven by changes in soil moisture content, particularly in expansive soils such as smectite clays. When clay absorbs water, it swells and exerts upward or lateral pressure (hydrostatic pressure); as it dries, it shrinks, leaving voids that cause the concrete footings to settle.

Performing structural repairs without stabilizing the surrounding soil moisture or calculating the building's dead and live loads will lead to subsequent failures. You must assess the home’s perimeter using a digital water level or transit to map elevation differentials. Any elevation variance greater than 1 inch over a 20-foot span indicates structural settlement that requires physical stabilization rather than cosmetic patching.

Essential Equipment and Tool Inventory

• Excavation and Surface Prep: Pneumatic jackhammers, rotary hammer drills, heavy-duty shovels, and steel wire brushes.
• Underpinning and Lifting: Hydraulic push pier systems, 10-to-20-ton hydraulic cylinders, a unified manifold system, and high-pressure hydraulic hoses.
• Materials: ASTM A500 or A513 Grade B steel push pier sections, heavy-duty foundation bracket assemblies, dual-component structural epoxy (low-viscosity for injection, high-viscosity paste for surface sealing), and non-shrink structural grout.
• Safety Gear: OSHA-compliant shoring jacks for deep excavations, heavy-duty steel-toe boots, safety glasses, and respirator masks (for concrete silica dust mitigation).

Technical Standards and Prerequisites

• Structural Codes: Conformance to International Residential Code (IRC) Section R408 is mandatory. Local municipal permits and structural engineer-stamped calculations are required for all underpinning work.
• Soil Load Capacities: Understanding local soil bearing capacities (measured in pounds per square foot, or PSF). Expansive clay soils often drop below 1,500 PSF when saturated, necessitating deep piering to bedrock or stable till.

Project Estimates and Timelines

• Budgetary Benchmark: Minor crack repair ranges from $500 to $2,000. Underpinning or piering runs between $1,500 and $3,500 per pier location, with total system restorations routinely costing $10,000 to $30,000.
• Duration: 2 to 7 business days, depending on the number of pier locations and excavation depth.

Step-by-Step Foundation Stabilization and Underpinning Execution

This procedural guide outlines the installation of heavy-duty steel push piers to stabilize and raise a settling perimeter concrete footing.

Step 1: Site Excavation and Footing Preparation

To install underpinning brackets, you must expose the footer of the foundation wall. Excavate a 3-foot by 3-foot access pit directly adjacent to the foundation at each pre-determined pier location. Dig downward until you expose the bottom of the concrete footing.

Once exposed, use a chipping hammer or pneumatic scale scaler to remove all loose soil, clay, and uneven concrete remnants from the bottom and face of the footing. The mounting surface must be completely flat and perpendicular to the vertical wall of the foundation to prevent eccentric loading on the bracket.

Warning: Never excavate more than three pier locations simultaneously without proper shoring. Over-excavating removes the lateral soil support of the building, which can trigger catastrophic local collapses of the foundation wall.

Step 2: Bracket Attachment and Anchoring

Align the heavy-duty steel foundation bracket beneath the cleaned footing. The bracket's horizontal saddle must sit flush against the underside of the concrete footer.

Using a rotary hammer drill equipped with a carbide-tipped masonry bit, drill holes through the bracket mounting plate and into the concrete foundation wall. Drive high-strength concrete anchor bolts (typically 3/4-inch diameter wedge anchors) into the holes, torquing them to the manufacturer’s specified foot-pounds to lock the bracket firmly against the concrete face.

Step 3: Hydraulic Driving of Steel Pier Sections

Mount the hydraulic drive cylinder assembly directly onto the installed foundation bracket. Insert the primary starter pier section (usually a 2-to-3-foot segment of heavy-gauge ASTM A500 steel tubing) through the bracket guide. Activate the hydraulic pump to press the pier vertically into the soil.

As each pier segment is driven flush with the bracket, sleeve a new steel pier segment onto the driven section and continue the hydraulic push. Monitor the hydraulic pressure gauge continuously. The pier must be driven down until it meets a solid load-bearing stratum (bedrock or highly compacted soil), which is indicated by a rapid spike in hydraulic pressure, typically reaching 4,000 to 6,000 PSI.

Pro-Tip: Calculate the target driving pressure before beginning the push. Use the formula: Target Pressure (PSI) = Required Pier Capacity (tons) / Effective Cylinder Area (sq. in.). Do not stop driving until this calibrated pressure threshold is reached and maintained for at least 10 seconds.

Step 4: Synchronized Structural Lifting and Leveling

Once all steel piers are driven to their verified load-bearing capacity, transfer the hydraulic cylinders to lifting positions on the brackets. Connect every cylinder to a central hydraulic manifold system. This manifold allows you to distribute fluid pressure evenly to all piers, preventing localized shear stresses that could fracture the concrete foundation during the lift.

Slowly apply pressure across the system. The building will lift uniformly. Monitor the crack lines and use a digital transit level to track elevation changes in real-time. Stop the lift once the foundation reaches its original level elevation or when structural components (such as interior door frames and floor joists) realign.

Step 5: Mechanical Lock-off and Backfilling

With the structure held at the desired elevation by hydraulic pressure, install the heavy-duty steel locking bolts or top-cap pins into the bracket assemblies. Tighten these mechanical locks securely to transfer the load of the home permanently from the temporary hydraulic jacks to the permanent steel piers.

Remove the hydraulic cylinders. Coat all exposed steel components with a rust-inhibiting zinc-rich primer. Finally, backfill the excavation pits with the excavated soil, compacting it in 6-inch lifts to prevent future settlement, and slope the grade away from the foundation at a minimum drop of 6 inches over the first 10 feet.

Step 6: High-Pressure Epoxy Injection of Foundation Cracks

After the foundation has been leveled and locked off, any remaining cracks in the concrete walls must be sealed to prevent water ingress and gas penetration. Use a wire brush to clean the crack channel of all loose debris, dust, and efflorescence.

Install plastic injection ports along the crack, spacing them apart at a distance equal to the thickness of the foundation wall (usually every 8 to 12 inches). Apply a thick bead of high-viscosity epoxy paste over the entire surface of the crack and around the bases of the injection ports to seal them to the wall. Allow the paste surface seal to cure for 24 hours.

Starting at the lowest port, inject low-viscosity structural epoxy resin into the port using a dual-cartridge dispensing gun until the epoxy begins to flow out of the next port above it. Cap the lower port and move upward, repeating this sequence until the entire length of the crack is filled.

Material Properties, Load Thresholds, and Soil Dynamics

Selecting the correct foundation repair methodology depends on structural loads, soil composition, and site access. The table below compares the engineering specifications of key repair techniques.

Common Site Failures and Structural Remediation

Even when following precise engineering plans, subsurface variables can cause issues. Below are common failures encountered during foundation repairs, along with their root causes and structural fixes.

Pier Refusal Before Reaching True Bedrock

• Root Cause: The steel pier segment strikes an isolated underground boulder, a buried concrete obstruction, or a highly compacted gravel lens, mimicking the resistance of bedrock at a shallow depth (e.g., 6 feet instead of the expected 25 feet).
• Actionable Fix: Relocate the pier bracket 18 to 24 inches laterally along the foundation wall to bypass the localized obstruction. If lateral relocation is prevented by architectural features, utilize a high-torque rotary core drill to penetrate through the obstruction before re-inserting and driving the steel pier.

Structural Footing Shear Fracture During Lifting

• Root Cause: The concrete footing is degraded, unreinforced (lacking rebar), or brittle. When lifting force is applied, the footing shears directly above the bracket instead of transferring the lift across the wall.
• Actionable Fix: Immediately halt hydraulic lifting operations. Install a wider concrete sister beam or a continuous steel angle iron collar directly above the failed zone. Secure this structural collar to the sound portion of the foundation wall using high-strength epoxy-anchored bolts, then position new brackets beneath the collar to distribute the lifting forces across a broader surface area.

Epoxy Injection Port Blowout Under Pressure

• Root Cause: The epoxy surface-seal paste was applied too thin, did not cure completely, or the injection pressure exceeded 150 PSI, causing the pressurized resin to rupture the surface patch.
• Actionable Fix: Cease injection immediately. Use a putty knife to clean the blown-out area down to bare concrete. Re-apply a fast-curing, high-tensile-strength epoxy gel paste over the rupture, ensuring a minimum thickness of 1/4 inch. Allow the patch to cure completely before resuming the epoxy injection at a reduced pressure limit (under 80 PSI).

Frequently Asked Questions

How do I know if a foundation crack is structural or cosmetic?

Cosmetic cracks are typically hairline fissures (under 1/16 inch wide) caused by the natural shrinkage of concrete as it cures. Structural cracks are usually wider than 1/4 inch, run diagonally or in a stair-step pattern through brick mortar, are accompanied by out-of-plumb walls, or present alongside sticking doors and sloping floors.

Can I repair a sinking concrete slab without installing steel piers?

Yes, interior slabs and concrete floors can often be leveled using polyurethane foam injection. This process involves drilling 5/8-inch holes through the slab and injecting a high-density, two-part expanding polyurethane foam beneath the concrete, which fills voids and lifts the slab back to its original elevation.

How deep do foundation piers need to be driven?

Piers must be driven past the active zone of soil moisture fluctuation—where soil expands and contracts—and into stable, load-bearing stratum or solid bedrock. In most residential areas, this depth ranges from 15 to 45 feet, though extremely soft clay soils may require depths exceeding 100 feet.

Will repairing the foundation fix the cracks in my drywall?

Lifting and leveling a foundation often closes drywall cracks and realigns door frames. However, you should wait 4 to 6 weeks after structural lifting before patching drywall, allowing the home's framing to settle and adjust to its new, stable configuration.

Does homeowner's insurance cover foundation repair costs?

Standard homeowner's insurance policies typically exclude foundation repairs caused by natural soil settlement, compaction, or hydrostatic pressure. Coverage is generally only provided if the foundation damage is a direct result of a covered sudden peril, such as a major plumbing leak or explosion.

Protect Your Structural Integrity with Expert Intervention

While understanding the mechanics of underpinning empowers you to make informed decisions, actual installation requires professional hydraulic equipment and structural engineering sign-offs. Contact a certified foundation specialist today to schedule a comprehensive elevation survey and restore your home's structural value.
