How To Reprogram My Garage Door Keypad
Reprogramming a garage door keypad requires locating the "Learn" button on your garage door opener motor, entering your existing or new personal identification number, and synchronizing the radio frequencies between 315MHz and 390MHz. This comprehensive guide outlines the exact manufacturer-agnostic procedures, frequency compatibility checks, and diagnostic troubleshooting steps needed to secure and operate your automated access system.
Pre-Operation & Equipment Checklist
Successful keypad reprogramming depends on proper preparation, physical safety adherence, and understanding your specific garage door opener's rolling code technology. Modern garage door entry systems utilize Security+ or similar cryptographic rolling code protocols that change the access code every time the button is pressed to prevent signal interception.
- Essential Equipment & Gear:
- A stable two-step ladder or extension ladder to safely reach the ceiling-mounted garage door motor.
- A fresh 9-volt or AAA battery (depending on your specific keypad model) to prevent low-voltage transmission drops during programming.
- A flashlight or headlamp to clearly read the programming LED indicators and label specifications on the motor chassis.
- Mandatory Prerequisite Knowledge & Standards:
- Identification of your opener brand (e.g., LiftMaster, Chamberlain, Genie, Craftsman, or Linear).
- Verification of operating frequency compatibility (older units operate at 390MHz, while modern high-security units use dual-frequency 315/390MHz or Security+ 2.0 operating on 310, 315, and 390 MHz).
- Budget & Time Benchmarks:
- Estimated Duration: 10 to 15 minutes of active labor.
- Financial Cost: Zero dollars if reprogramming existing hardware, or approximately $35 to $60 for a universal replacement keypad.
Step-by-Step Programming and Synchronization Workflow
Step 1: Clear the Existing Memory and Reset the Keypad
Before setting a new PIN, you must clear out old programming cycles to prevent memory buffer conflicts on the receiver logic board. Locate the "Learn" button on the back or side panel of your garage door motor unit, which is typically found underneath the light bulb cover. Press and hold this Learn button continuously for approximately 6 to 10 seconds until the adjacent LED indicator light turns off.
Warning: Holding the Learn button down for longer than 15 seconds will inadvertently wipe out the programming memory for all previously synced hand-held remote controls and vehicles, requiring you to reprogram every device from scratch.

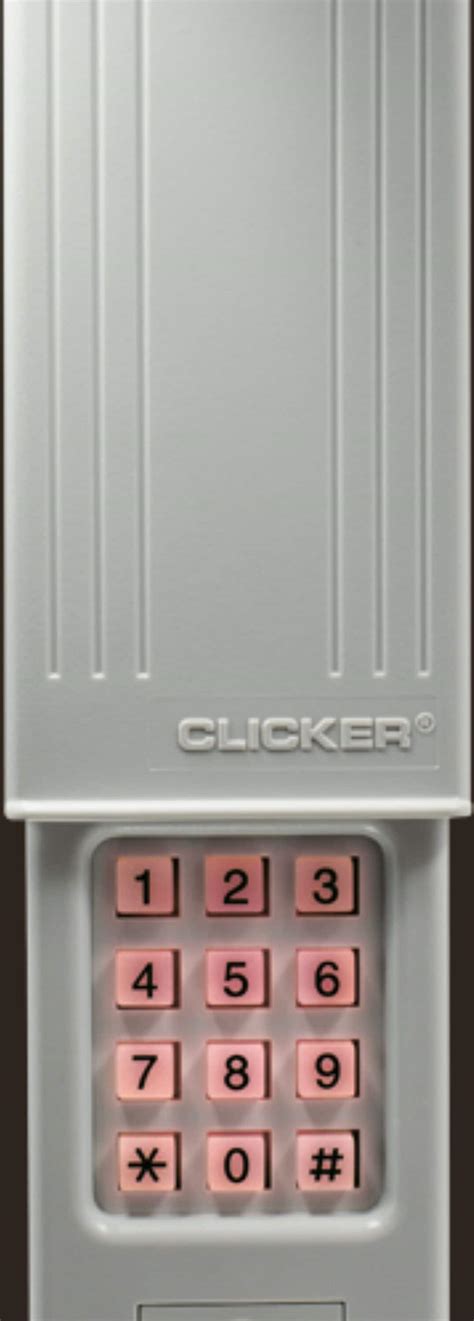

Step 2: Access the Keypad and Enter the Programming Mode
Approach your exterior keypad mounted beside the garage door opening. For most modern wireless keypads (such as LiftMaster or Chamberlain models), you initiate programming by pressing and holding the ***#** keys simultaneously until the lights on the keypad stop flashing. If you are working with an older Genie Intellicode system, the programming sequence begins by holding the up and down arrow keys together while pressing the program button.
Step 3: Input Your New Personal Identification Number
Enter your desired 4-digit PIN directly into the keypad interface. Ensure the numbers you choose are secure yet memorable. Once the 4-digit sequence is keyed in, press the Enter button (often represented by the pound sign or an up/down arrow depending on the manufacturer). The backlight or LED on the keypad should flash slowly or remain solid to confirm that the processor has successfully accepted the new numeric string.
Step 4: Synchronize with the Motor Unit's Learn Button
Return to the ceiling-mounted garage door motor using your ladder. Press the Learn button on the motor unit one single time and release it immediately. You now have a strict 30-second window to return to your exterior keypad. Enter your newly programmed 4-digit PIN once more, and then press the Enter button or the "Open/Close" triangle key.
Pro-Tip: Watch the main light bulbs on the garage door opener motor while performing this final synchronization step. If the motor lights flash twice or you hear a distinct clicking sound, the handshake between the rolling code transmitter and the receiver logic board was successful.
Step 5: Test the Mechanical and Electronic Operation
Clear the door threshold of any obstructions, pets, or children. Stand clear of the moving travel path and press your newly programmed PIN followed by the enter key. Observe the door as it travels through its full open and closed limit cycles. If the door reverses prematurely, verify that your safety-reversal photo-eye sensors are properly aligned and free of dust or spiderwebs.
How to Reprogram Garage Door Opener Keypad
Keypad Manufacturer Specifications & Programming Protocols
| Garage Door Brand | Learn Button Color / Type | Initial Keypad Command Sequence | Motor Synchronization Step |
|---|---|---|---|
| LiftMaster / Chamberlain | Yellow, Purple, Red/Orange, Green | Press ***#** simultaneously until lights stop flashing | Press Learn button once; enter 4-digit PIN and press Enter |
| Genie Intellicode | Red/Orange square or round LED | Press Program key sequentially in 1-second intervals | Press and hold Prog and Up arrows; enter PIN and press Up/Down |
| Craftsman (Sears) | Purple, Red, or Yellow smart button | Enter 4-digit PIN, then press and hold the Enter key | Press Learn button once; enter PIN and press Enter until lights flash |
| Linear / Moore-O-Matic | Radio frequency dip switch or learn button | Enter factory reset code, then input custom 4-digit PIN | Press receiver learn button once; enter PIN and activate opener |
Common Site Failures and Field Fixes
- Root Cause: The keypad transmits a signal, but the motor unit's LED indicator flashes rapidly without operating the door.
- Actionable Fix: This indicates a rolling code synchronization failure. Perform a total factory reset on the keypad, clear the motor's memory by holding the Learn button for 10 seconds, and repeat the programming sequence from Step 1.
- Root Cause: The keypad buttons fail to light up or register any numeric input during cold weather conditions.
- Actionable Fix: Voltage drops drastically in alkaline batteries when exposed to freezing temperatures. Open the battery compartment cover, clear out any moisture corrosion with fine-grit sandpaper, and replace the dead cell with a high-capacity lithium battery.
- Root Cause: The keypad works intermittently or only from very close proximity to the garage door.
- Actionable Fix: Local radio frequency interference (RFI) from LED garage lighting bulbs or nearby security cameras can block weak wireless signals. Unscrew standard LED bulbs from the opener unit and replace them with vibration-resistant, RFI-shielded garage door specialty bulbs.
Frequently Asked Questions
Can I program my garage door keypad without pressing the Learn button on the motor?
No. Modern garage door security standards require physical access to the motor unit's logic board via the Learn button to establish a cryptographic rolling code handshake. This failsafe prevents unauthorized individuals from standing outside your home and hacking your frequency to gain entry.
Why won't my garage door keypad accept my new 4-digit PIN?
Keypads often reject new entries if the memory buffer is corrupted or if you are exceeding the manufacturer's allowed digit length, which is strictly capped between 4 and 6 digits depending on the model. Clear the keypad programming by removing the batteries for 60 seconds, then retry the initialization sequence.
How do I reset a garage door keypad if I forgot the existing code?
You do not need to know the old code to reset the system. Simply climb up to the garage door opener motor, press and hold the Learn button for 6 to 10 seconds to wipe the internal memory, and program a completely new PIN using the standard step-by-step procedure.
Why does my garage door open properly with the keypad, but refuses to close?
This is almost never caused by a keypad programming error. When a garage door reverses or refuses to close via a keypad command, it indicates an obstruction in the path, misaligned safety photo-eye sensors, or an issue with the travel limit adjustments on the side of the motor.
How long do the batteries typically last in an exterior wireless garage door keypad?
Depending on weather extremes and daily usage frequency, standard 9-volt or AAA batteries inside an exterior keypad last anywhere from 12 to 24 months. If the backlight dims or the transmission range decreases, swap out the batteries immediately to prevent programming data loss.
