How To Seal A Roll Up Door: Complete Weatherproofing And Insulation Guide

Sealing a roll-up door requires replacing or installing heavy-duty EPDM rubber bottom seals, brush side seals, and top draft stoppers to eliminate air infiltration, moisture penetration, and pest entry. Achieving a weather-tight barrier demands precise track alignment, correct material selection for temperature extremes, and proper mechanical fastening using self-tapping structural screws.

Pre-Operation & Equipment Checklist

Properly sealing a commercial or residential roll-up door demands a targeted array of specialized hardware, measuring instruments, and safety equipment to ensure an airtight, watertight installation that withstands cyclic loading and temperature fluctuations. Neglecting the preparation phase often results in binding curtains, premature gasket degradation, or uneven compression gaps along the jambs.

• Essential gear, tools, and materials: Heavy-duty EPDM rubber bottom seal, aluminum retainer tracks, nylon or polypropylene brush seals, self-tapping sheet metal screws (No. 10 x 3/4 inch hex head), cordless drill with magnetic bit holder, heavy-duty utility knife with hook blades, caulking gun, exterior-grade polyurethane sealant, tape measure, chalk line, isopropyl alcohol, and clean shop rags.
• Mandatory prerequisite knowledge and standards: Understanding wind-load ratings (ANSI/DASMA 102 standards for commercial sectional and roll-up doors), maintaining curtain squareness during operation, and ensuring the door is fully closed and locked out electrically or mechanically before service begins.
• Estimated budget and duration benchmarks: Total material costs typically range from seventy to two hundred dollars depending on door width; projected installation time is two to four hours for a standard single-bay opening.

Step-by-Step Roll Up Door Sealing Workflow

Step 1: Inspection and Clearance Measurement

Begin by operating the roll-up door to the fully closed position and locking it securely to prevent accidental movement. Inspect the entire perimeter of the opening, checking the concrete slab for uneven settling, cracks, or gaps beneath the existing bottom bar. Measure the exact width of the bottom bar and the height of both vertical guide tracks from the finished floor to the header. Record these measurements to calculate the precise lineal footage required for your replacement bottom astragal and brush weatherstripping kits.

Warning: Never attempt to adjust tension springs or drum assemblies while performing standard weatherstripping replacement, as stored torsional energy poses severe injury risks.

Step 2: Removing Worn-Out Bottom Seals and Retainers

Locate the existing bottom retainer and rubber seal, which are typically fastened via aluminum track channels pinched to the bottom bar or held by sheet metal screws. Use a cordless drill and appropriate socket bit to back out the rusted or stripped fasteners securing the old assembly. Slide the degraded EPDM rubber gasket and aluminum track out of the channel end-to-end. Thoroughly clean the bottom steel bar using a wire brush and isopropyl alcohol to remove accumulated dirt, rust scale, and old adhesive residue, ensuring a flat, clean bonding and mounting surface.

Step 3: Installing the New Bottom Retainer and EPDM Gasket

Cut the new aluminum retainer track and EPDM rubber bottom seal to match the exact measured width of the door's bottom bar using a hacksaw and utility knife. Slide the flexible EPDM rubber bulb or T-style seal directly into the extruded aluminum retainer channel, applying a light film of soapy water as a lubricant if friction is excessive. Center the assembled unit along the bottom bar of the door, and secure it by driving self-tapping sheet metal screws through the retainer flange into the door curtain every twelve inches. Lower the door gently to verify that the rubber bulb compresses evenly against the floor without bunching or creating high-friction drag zones.

Step 4: Mounting Side Brush Seals to the Guide Tracks

Measure the vertical height of the door guides from the floor to the header block and cut two lengths of brush seal retainer and nylon brush inserts accordingly. Position the brush seal assembly against the exterior face of the steel guide tracks, ensuring the flexible bristles press firmly against the rolling curtain without interfering with the windlocks or guide angles. Mark your fastener locations along the pre-slotted mounting holes, drill pilot holes if working with heavy-gauge steel jambs, and secure the assemblies using self-tapping fasteners. Adjust the slotted brackets laterally until the bristles maintain a continuous, light-pressure seal against the moving curtain across the entire travel path.

Step 5: Sealing the Header and Top Draft Stop

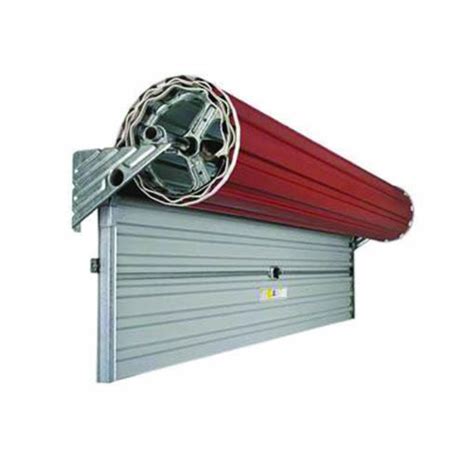

Inspect the gap between the upper coil drum housing or curtain hood and the building header, which is a primary source of convective heat loss and dust infiltration. Install an overhead header seal or clip-on brush retainer directly to the lintel angle or the exterior face of the hood baffle. Position the brush or rubber flap so that it rests firmly against the top curve of the roll-up door curtain when fully closed. Apply a continuous bead of exterior-grade polyurethane sealant along the outer seams where the guide tracks meet the wall and where the top retainer joins the header to block air bypass completely.

Material Properties and Selection Matrix

Choosing the correct polymer and retainer combination depends heavily on environmental exposure, operational frequency, and thermal insulation requirements for the facility.

Common Site Failures and Field Fixes

• Root Cause: The bottom EPDM rubber seal drags unevenly across a sloped or cracked concrete floor, leaving a visible light gap at one corner.


  • Actionable Fix: Shim the aluminum retainer using rubber washers during installation or trim the flexible bulb progressively with a utility knife to match the exact contours of the settling slab.
• Root Cause: Side brush bristles curl, fray, or catch on the door curtain windlocks during opening cycles.


  • Actionable Fix: Loosen the slotted mounting screws, adjust the retainer track outward by one-quarter inch to reduce excessive interference pressure, and retighten all hardware securely.
• Root Cause: Fasteners loosen and back out of the bottom bar or guide tracks due to persistent vibration from heavy industrial traffic.


  • Actionable Fix: Replace standard sheet metal screws with larger diameter self-tapping structural screws (No. 12) or apply a drop of removable thread-locking fluid to the fastener threads prior to driving.

Frequently Asked Questions

What is the best material for a roll-up door bottom seal?

EPDM rubber is widely considered the industry standard for bottom astragals due to its superior resistance to ultraviolet radiation, ozone degradation, extreme temperature shifts, and constant compression set. It maintains its elasticity over years of heavy daily cycling without cracking or hardening like standard vinyl.

How do I stop drafts coming through the sides of a roll-up door?

Side drafts are eliminated by installing nylon or polypropylene brush weatherstripping along the exterior or interior face of the vertical guide tracks. The flexible bristles conform tightly to the rolling steel curtain, blocking wind and pests while allowing the door to move up and down without binding.

Can I seal a roll-up door if the concrete floor is uneven?

Yes, you can compensate for uneven concrete by utilizing a taller bulb-style EPDM bottom seal or by installing a rubber threshold floor seal directly to the concrete underneath the closed door. This creates a raised dam that accommodates minor floor dips and stops pooling water from entering.

How often should roll-up door weather seals be replaced?

Most commercial and heavy-duty weather seals last between three to five years depending on environmental exposure, direct sunlight, and operational frequency. Inspect your seals annually for cracking, tearing, compression flattening, or brittle degradation, and replace them promptly to maintain energy efficiency.
