How To Set Up Telecaster For Push Pull Humbucker

Upgrading your traditional single-coil Telecaster with a push-pull potentiometer unlocks series-parallel humbucker wiring, bridging vintage twang and modern high-output versatility without routing your wood. Mastering this mod requires precise soldering discipline, proper phase verification, and exact potentiometer selection to maintain your treble bleed and taper integrity.

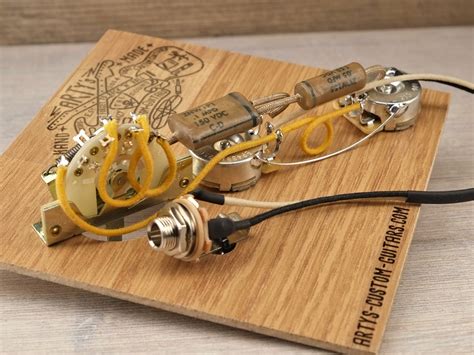

Essential Telecaster Wiring & Component Checklist

Transforming a standard Telecaster control cavity into a high-utility switching platform requires a specific set of luthier tools, upgraded electronics, and a solid grasp of single-coil versus four-conductor humbucker conventions. Because standard Telecaster control plates are notoriously cramped, component selection dictates whether your installation succeeds or ends up in a short-circuit nightmare.

• Essential Gear and Components: One 500k or 250k DPDT (Double Pole, Double Throw) push-pull potentiometer (use 500k for humbuckers to preserve high-end clarity or a blended 250k/500k setup for mixed pickup configurations), a four-conductor humbucker or humbucker-sized neck pickup, a high-quality 0.022uF orange drop or paper-in-oil capacitor, and vintage-cloth push-back wire or shielded Teflon wire.
• Workshop Tools & Safety Items: A temperature-controlled soldering station (400 to 450 degrees Celsius) with a chisel tip, lead-free or 60/40 rosin-core solder, wire strippers, a digital multimeter with continuity and resistance settings, needle-nose pliers, and a reamer or round file to widen the control plate hole if upgrading from standard CTS pots to wider metric or Alpha/CTS push-pull shafts.
• Prerequisites and Benchmarks: Complete understanding of basic schematic reading, standard grounding loops, and phase relationships. The typical operation takes 90 to 120 minutes and requires an estimated budget of forty to eighty dollars depending on potentiometer and capacitor choices.

Step-by-Step Telecaster Push-Pull Humbucker Installation Workflow

Step 1: Disassembly and Cavity Inspection

Begin by unstringing the instrument and removing the control plate screws, carefully lifting the plate to expose the existing switch and pots. Take high-resolution photographs of the current wiring layout for reference before desoldering the ground wires from the back of the volume pot and the hot leads from the three-way blade switch. Remove the old volume potentiometer and check the inner cavity routing dimensions; standard American and Mexican Telecaster control cavities are typically 1.5 inches deep, but many push-pull pots feature deep housing bodies that require minor wood clearance or careful component placement to prevent the switch casing from bottoming out against the body wood.

Warning: Never use excessive force when pulling the control plate out; old ground wires attached to the bridge shielding plate have very little slack and can easily snap off at the solder joint.

Step 2: Preparing the DPDT Push-Pull Potentiometer

Analyze the six lower lugs and the three upper potentiometer terminals of your new DPDT switch pot. The top three terminals function identically to a standard volume or tone potentiometer (input, output, and wiper to ground), while the bottom two rows of three lugs form an independent on-on switch activated by the pull shaft. Tin all switch lugs and pot casing backs with a light layer of solder before installation to ensure rapid heat transfer and prevent heat damage to the internal carbon tracks of the potentiometer during final wiring.

Pro-Tip: Lightly scuff the back of the new pot casing with fine-grit sandpaper before applying solder to create a mechanical grip that prevents ground wires from lifting later.

Step 3: Wiring the Humbucker Coils for Series-Parallel Switching

Solder your four-conductor humbucker wires according to the manufacturer color codes to achieve the desired push-pull switching action. Typically, connect the pickup's finish-red and start-white wires together and tape them off or attach them to the center lower lug of the DPDT switch to enable coil splitting, or wire them for a series-to-parallel transition where the push-pull action shifts the coils from a high-output 16k series load down to a clearer 4k parallel hum-canceling tone. Route the hot output wire (usually black) to the standard input terminal of the potentiometer, and ground the bare drain wire and green lead directly to the back of the pot casing.

Step 4: Reassembly, Shielding, and Phase Verification

Mount the push-pull pot securely onto the control plate, ensuring the star washer is properly seated to prevent the component from spinning under torque. Reattach all ground connections to the pot casing, including the bridge ground wire, body cavity shielding paint or copper foil tabs, and output jack ground. Before screwing the control plate back down, plug the guitar into an amplifier, set your multimeter to AC voltage or tap the pole pieces lightly with a metallic screwdriver while pulling and pushing the knob to verify uninterrupted signal flow and eliminate ground hum loops.

Telecaster Component & Wiring Specification Matrix

Common Installation Failures and Field Fixes

• Symptom: Total signal loss or extreme buzzing when the push-pull knob is pulled into the active position.


  • Root Cause: Accidental short-circuiting of the lower DPDT switch lugs against the shielded copper lining of the control cavity or incorrect grounding of the series link wires.
  • Actionable Fix: Wrap electrical tape or heat-shrink tubing around the lower switch lugs to prevent contact with the copper cavity walls, and verify your coil-split link wires with a continuity tester.
• Symptom: The volume control acts as an on-off switch with zero taper, cutting all sound until the last five percent of rotation.


  • Root Cause: The input and output lugs of the potentiometer have been reversed during installation, or the wiper lug has been shorted directly to ground.
  • Actionable Fix: Desolder the pickup hot lead and output jack wire, swap their physical positions on the outer lugs of the potentiometer, and ensure the wiper lug connects only to the output path.
• Symptom: Thin, weak, nasal tone when both pickups are selected with the push-pull engaged.


  • Root Cause: Out-of-phase wiring between the neck humbucker and the bridge single-coil pickup.
  • Actionable Fix: Swap the hot and ground leads of one of the pickups or reverse the magnet polarity if working with mismatched aftermarket brands.

Frequently Asked Questions

Can I use a 250k push-pull pot with a humbucker?

Yes, you can use a 250k push-pull potentiometer, but it will load down the high frequencies of the humbucker, resulting in a darker, warmer tone. Most guitar technicians prefer 500k pots for humbuckers to retain articulation, while using a treble bleed circuit to preserve high-end clarity when rolling down the volume.

Do I need to rout my Telecaster body to fit a push-pull pot?

Standard American and Mexican Telecaster control cavities are deep enough for most standard CTS and Alpha push-pull pots. However, deep-body push-pull pots can bottom out in vintage-spec thin bodies, requiring minor wood removal with a chisel or choosing a short-shaft push-pull variant.

How does a series-parallel push-pull mod change my tone?

Switching a humbucker from series to parallel routes the two internal coils side-by-side rather than end-to-end. This drops the output and impedance while boosting high-end frequency response, giving you a chimey, Stratocaster-like sparkle while maintaining hum cancellation.

Will a push-pull pot fit under a standard Telecaster control plate?

Yes, standard push-pull pots feature metric or imperial threaded bushings that fit directly into the existing control plate mounting hole. You may need to slightly ream the hole diameter depending on whether you are upgrading from Asian metric pots to full-size American CTS components.

How do I wire a coil split on a Telecaster neck humbucker?

To achieve a coil split, connect the series link wires (where the two coils join inside a four-conductor humbucker) to the center lug of the DPDT switch, and run a wire from the bottom lug to the ground of the potentiometer. Pulling the switch shunts one coil directly to ground, leaving only the active single coil in the circuit.
