How To Size A Bolt: The Complete Technical Guide To Precision Fastener Selection
Determining the correct bolt size requires accurate measurement of the nominal diameter, thread pitch, and total length while simultaneously identifying the appropriate grade or property class to ensure structural integrity. Mastery of these metrics prevents mechanical failure caused by improper load distribution, stripping, or shear stress, following established ASME or ISO engineering standards.
Foundational Measurement and Equipment Requirements
Before selecting or replacing a fastener, precise measurement is essential to maintain the structural safety of an assembly. Using an incorrect bolt can lead to catastrophic joint failure, vibrations, or inability to achieve the required torque. Proper sizing relies on both measurement tools and an understanding of the difference between Imperial (SAE) and Metric systems.
- Essential Gear and Instrumentation
- Digital Calipers: The most critical tool for measuring shank diameter and length with 0.001-inch or 0.01-millimeter accuracy.
- Thread Pitch Gauge: A mechanical comb used to identify the TPI (Threads Per Inch) in Imperial bolts or the mm-per-thread distance in Metric bolts.
- Bolt Sizing Card or Thread Checker: A standardized plate with threaded holes to quickly confirm thread counts and nominal diameters.
- Reference Tables: Technical data sheets specifying Grade 5, Grade 8, or ISO 8.8/10.9/12.9 property classes.
- Mandatory Prerequisite Knowledge: Understand that Imperial bolts are measured by diameter, TPI, and length under the head, whereas Metric bolts are measured by diameter (mm), pitch (mm), and length.
- Estimated Preparation Time: 5 to 10 minutes depending on the complexity of the fastener inventory.
Procedural Workflow for Precision Bolt Sizing
Sizing a bolt is a three-dimensional operation involving the shank diameter, the thread profile, and the effective length. Always ensure the fastener is clean and free of debris before measurement to avoid erroneous readings.
Step 1: Measuring Nominal Diameter
For an Imperial bolt, measure the outside diameter of the threads using digital calipers. For example, a 1/2-inch bolt should measure very close to 0.500 inches. For Metric fasteners, measure the major diameter in millimeters. Be aware that the nominal size refers to the outer thread diameter, not the diameter of the unthreaded shank, which may be slightly smaller in some high-strength configurations.
Pro-Tip: If your caliper reading shows a diameter slightly smaller than a standard nominal size, check for thread wear or deformation, as fasteners should ideally match standard major diameter charts.
Step 2: Determining Thread Pitch and Count
Select the appropriate blade from your thread pitch gauge and press it into the grooves of the bolt threads. If the teeth fit perfectly without gaps or light showing through, you have found the correct match. In the Imperial system, count the number of threads over one inch or convert your measurement to TPI. In the Metric system, the pitch is the distance in millimeters between the crests of two adjacent threads.
Step 3: Measuring Fastener Length
The length of a bolt is always measured from the point where the underside of the bolt head meets the mounting surface to the end of the threads. Do not include the head height in your length measurement, as this does not contribute to the clamping depth of the fastener. For countersunk (flat head) bolts, however, the measurement must include the head because the entire bolt sits flush within the material.
Step 4: Identifying Grade and Material Strength
Check the head of the bolt for manufacturer marks. Imperial bolts use radial lines to denote grade, where Grade 5 has three lines and Grade 8 has six. Metric bolts utilize numeric codes, such as 8.8, 10.9, or 12.9, which represent their tensile strength. Choosing a lower grade than the application requires can cause the bolt to stretch or snap under load, while an excessively high grade may be brittle in certain vibration-heavy environments.
Metric Bolt And Nut Size Chart - Catalog Library

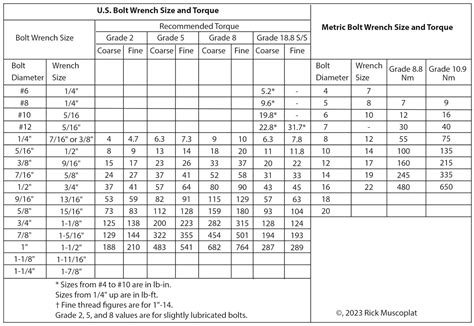

Technical Specifications and Fastener Standards Matrix
The following table outlines the correlation between common measurement metrics and industry-standard classifications for general engineering applications.
| Feature | Imperial (SAE/UNC/UNF) | Metric (ISO) |
|---|---|---|
| Diameter Measurement | Inches (e.g., 1/4, 3/8) | Millimeters (e.g., M6, M10) |
| Thread Designation | Threads Per Inch (TPI) | Pitch in Millimeters (mm) |
| Strength Designation | Radial Lines (Grade 2, 5, 8) | Property Class (8.8, 10.9, 12.9) |
| Length Measurement | Distance under head to tip | Distance under head to tip |
| Application Scope | North American Standard | Global/International Standard |
Field Troubleshooting and Failure Mitigation
Improper fastener sizing remains a leading cause of mechanical assembly failure. Address these common issues to ensure long-term equipment reliability.
- Root Cause: Thread Binding or Cross-Threading
- Actionable Fix: Ensure the thread pitch of the bolt matches the internal thread of the nut or hole exactly. Never force a bolt; if resistance is felt, back it out and verify the TPI or pitch with a gauge.
- Root Cause: Bolt Fatigue and Stretching
- Actionable Fix: If a bolt repeatedly loosens, the assembly likely requires a higher grade or an added locking mechanism like a nylon insert nut, spring washer, or anaerobic thread-locker.
- Root Cause: Insufficient Thread Engagement
- Actionable Fix: A general rule of thumb is that the engagement length should be at least 1.5 times the nominal diameter of the bolt into a steel or iron substrate. If the bolt is too short, specify a longer fastener to maximize thread contact.
Frequently Asked Questions
Does the bolt head count toward the total length?
For standard hex bolts and carriage bolts, the length is measured from under the head to the end of the threads. For flat head or countersunk screws, the length includes the head because it is designed to be flush with the mounting surface.
What is the difference between coarse and fine threads?
Coarse threads (UNC/M) are standard for general-purpose use because they are more resistant to cross-threading and offer faster assembly. Fine threads (UNF/MF) provide higher tensile strength and are preferred in vibration-prone automotive or aerospace applications where precise tensioning is required.
Can I replace a metric bolt with an imperial one?
No. Imperial and metric threads have different diameters and thread profiles, meaning they are not interchangeable. Attempting to force an imperial bolt into a metric hole will destroy the threads of the housing, resulting in an expensive repair.
How do I know which Grade or Class I need?
Consult the original equipment manufacturer (OEM) specifications for the assembly. In general, use Grade 5 or Class 8.8 for standard automotive work and Grade 8 or Class 10.9 for critical structural or suspension components subjected to high stress.
