How To Test A 4-Wire O2 Sensor With A Multimeter: A Complete Diagnostic Guide

Testing a 4-wire oxygen (O2) sensor requires measuring both the heater circuit's resistance and the sensor's real-time voltage fluctuations. A healthy sensor heater should register between 2 and 15 ohms of cold resistance, while the signal circuit must rapidly oscillate between 0.1 and 0.9 volts DC once the engine reaches closed-loop operation. Using a digital multimeter to verify these precise electrical benchmarks allows you to accurately isolate a failing sensor from wiring harness faults before purchasing an expensive replacement.

Essential Diagnostic Tools and Pre-Test Planning

Modern automotive engines rely on the 4-wire zirconia oxygen sensor to maintain the stoichiometric air-fuel ratio of 14.7:1. The four wires serve distinct functions: two wires feed the internal 12-volt heating element (which brings the sensor to its 600-degree Fahrenheit operating temperature quickly), one wire transmits the millivolt signal to the Engine Control Unit (ECU), and the fourth wire provides a dedicated signal ground.

Testing this component prevents catalytic converter damage, restores lost fuel economy, and resolves illumination of the check engine light (often accompanied by codes P0130 through P0161). Before beginning, review the specific safety requirements, equipment specifications, and resource allocations outlined below.

Diagnostic Equipment and Checklist

• Digital Multimeter (DMM): Must feature a high input impedance of at least 10 Megohms to prevent drawing excessive current from the sensitive ECU signal circuits.
• Back-Probe Pins: Flexible metal pins designed to slide past the weather seals of the electrical connector without piercing or damaging the wire insulation.
• Personal Protective Equipment: Heat-resistant gloves and safety glasses are mandatory, as dynamic testing must be performed on a hot engine.
• Service Manual/Wiring Diagram: Essential for identifying vehicle-specific wire color coding, which varies significantly by manufacturer.
• Basic Hand Tools: Socket set, ratchet, and a dedicated O2 sensor socket (if removal is required for bench testing).
• Prerequisite Standards: Basic understanding of DC voltage, electrical resistance (ohms), and the difference between open-loop and closed-loop engine management modes.
• Estimated Budget: $20 to $60 for diagnostic tools if not already owned.
• Estimated Duration: 30 to 45 minutes of active diagnostic time.

Step-by-Step 4-Wire O2 Sensor Diagnostic Procedure

To accurately evaluate a 4-wire oxygen sensor, you must perform tests in two distinct phases: a cold static resistance test of the heater circuit, followed by a hot dynamic voltage test of the feedback loop.

Step 1: Identify the Wire Configuration

Do not guess which wire performs which function. Wire colors vary depending on whether you are dealing with an OEM harness or an aftermarket replacement sensor.

Locate the oxygen sensor upstream of the catalytic converter (Sensor 1) or downstream (Sensor 2). Track the wire pigtail to its plastic connector. Identify the colors of the four wires on the sensor side of the connector, not the car's harness side.

Generally, the two wires of the same color (typically white or black) belong to the heating element. The remaining two wires represent the signal positive (often black or blue) and the signal ground (often gray or white). Consult the technical specification table in this guide to match your sensor manufacturer's color scheme.

Step 2: Measure the Heater Circuit Resistance (Cold Engine)

The heating element must function correctly for the sensor to generate accurate voltage signals at idle. Perform this test with the ignition switched off and the engine completely cool to the touch.

1. Unplug the 4-wire oxygen sensor electrical connector.
2. Set your digital multimeter to the lowest resistance range, typically 200 Ohms.
3. Touch the two multimeter probes together to verify calibration; your meter should read 0.1 to 0.3 ohms. This is your baseline meter resistance.
4. Insert your multimeter test leads directly into the female terminals on the sensor side of the unplugged connector corresponding to the two heater wires.
5. Read the resistance display. A functioning heater element typically exhibits a resistance of 2 to 15 ohms, depending on the manufacturer's specification.

Warning: If your multimeter displays "OL" (Over Limit) or infinite resistance, the internal heating coil is broken (open circuit). If the reading is below 1 ohm, the coil is shorted. In either scenario, the oxygen sensor is defective and must be replaced.

Step 3: Test the Heater Power and Ground Circuits

If the heater resistance on the sensor is within specification, you must verify that the vehicle's electrical system is actually delivering power and ground to the heater plug.

1. Switch the multimeter to measure DC Voltage on the 20-volt scale.
2. Locate the harness side of the unplugged O2 sensor connector.
3. Turn the vehicle's ignition key to the Run position (Key On, Engine Off - KOEO). Do not start the engine.
4. Connect the black multimeter probe to a clean, unpainted metal chassis ground.
5. Use the red multimeter probe to touch the harness pins corresponding to the two heater wires. One pin must read battery voltage, which is approximately 12.0 to 12.6 volts.
6. Switch your red probe to the battery positive terminal, and use the black probe to test the opposite heater wire pin on the harness side. It should read battery voltage, indicating the ECU or relay is successfully grounding the heater circuit.

Pro-Tip: Some modern vehicles utilize pulse-width modulation (PWM) to control the heater ground based on engine load. On these systems, the ground signal may cycle rapidly or only activate once the engine is actually running. If you suspect PWM control, start the engine to confirm ground activation.

Step 4: Back-Probe the Signal Circuit (Dynamic Hot Test)

This test evaluates the zirconia element's ability to generate voltage based on exhaust gas oxygen levels. This test must be conducted with the sensor fully connected to the vehicle harness and the engine running at normal operating temperature.

1. Reconnect the 4-wire oxygen sensor electrical plug securely.
2. Insert a back-probe pin into the rear seal of the connector on the signal positive wire, making sure the pin slides under the rubber weather boot and contacts the metal terminal inside.
3. Insert a second back-probe pin into the signal ground wire terminal in the same manner.
4. Set your digital multimeter to the 2-volt DC range.
5. Connect the red positive multimeter lead to the signal positive back-probe pin, and the black negative lead to the signal ground back-probe pin.
6. Start the engine and let it idle for 5 to 10 minutes. The vehicle must reach closed-loop operation, which occurs once the coolant temperature reaches approximately 180 degrees Fahrenheit.

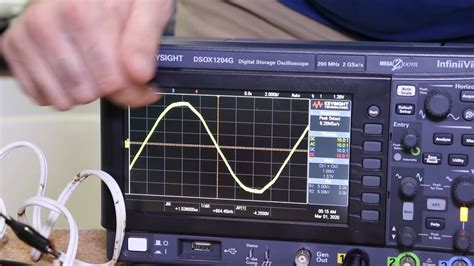

Step 5: Verify Signal Voltage Fluctuations

Observe the multimeter display while the engine idles at operating temperature.

1. Monitor the voltage reading. In closed-loop mode, a healthy upstream O2 sensor signal must continuously and rapidly cycle between approximately 0.1 volts (lean exhaust, high oxygen) and 0.9 volts (rich exhaust, low oxygen).
2. The voltage should cross the 0.45-volt midpoint reference line approximately 8 to 10 times every 10 seconds at an engine speed of 2,000 RPM.
3. If the voltage is static at a constant 0.45 volts, the sensor is either cold, operating in open-loop mode, or the internal zirconia element is dead.
4. If the voltage is stuck near 0.1 volts or 0.9 volts without fluctuating, proceed to the response testing in Step 6 to verify if the sensor can respond to artificial fueling changes.

Step 6: Perform Lean and Rich Response Verification

To ensure the sensor is not "lazy," force extreme air-fuel conditions and check if the multimeter registers the change immediately.

1. Test Lean Response: Disconnect a vacuum line (such as the PCV valve hose) from the intake manifold while the engine is running. This action introduces unmetered air into the combustion chambers. The multimeter voltage must drop rapidly to near 0.1 volts within one second, indicating a lean condition. Reconnect the vacuum hose.
2. Test Rich Response: Briefly spray a small, controlled amount of aerosol intake cleaner or propane into the engine's air intake tract, or quickly snap the throttle plate open and closed. The multimeter voltage should instantly spike up to 0.8 or 0.9 volts, indicating a rich condition.

Warning: Do not spray highly flammable solvents excessively into the intake, as this can cause engine backfiring, physical injury, or catastrophic intake manifold damage. Keep your face and hands away from the throttle body.

OEM Wire Configurations and Electrical Specifications

Because wire color standards vary widely across automotive manufacturers, you must match the physical wires on your component to the correct brand configuration before connecting your diagnostic equipment. The table below displays the industry standard wire layouts for the three most common 4-wire sensor manufacturers alongside their typical operating parameters.

Common Diagnostic Failures and Field Solutions

Multimeter Reads "OL" or Infinite Resistance Across Heater Wires

• Root Cause: The internal tungsten heater element wire inside the ceramic sensor body has broken due to thermal shock, high mileage, or severe vehicle vibrations. This breaks the electrical circuit completely, preventing the sensor from heating up during cold starts.
• Actionable Fix: Replace the oxygen sensor. There is no way to repair or weld an open internal heater coil. Ensure the harness plug is clean and free of corrosion before installing the new unit.

Multimeter Shows Constant 0.45 Volts (Bias Voltage) Even After Warming Up

• Root Cause: The ECU applies a steady reference voltage (bias voltage) of approximately 0.45 volts to the signal circuit. If the multimeter displays exactly this voltage continuously, the sensor is not generating its own electricity. This is caused by a damaged zirconia element, internal soot contamination, or a physical break in the signal wire between the connector and the sensor head.
• Actionable Fix: Confirm that the sensor is hot. If the exhaust system is hot but the voltage remains at 0.45V, check for exhaust leaks upstream of the sensor. Exhaust leaks draw in outside air and fool the sensor. If no leaks are found, replace the sensor.

Lazy Sensor Syndrome (Extremely Slow Voltage Cycling)

• Root Cause: The protective metal shield on the outside of the sensor tip is heavily coated with carbon black soot, engine oil residue (from worn valve guides/piston rings), or silicone compounds (from improper gasket sealers). This contamination acts as an insulator, slowing the transfer of exhaust gases to the zirconia sensing element.
• Actionable Fix: Try driving the vehicle at highway speeds for 15 minutes to burn off minor carbon soot buildup. If the transition time between 0.1V and 0.9V remains slower than 100 milliseconds, or if it fails to cross the 0.45V threshold at least 8 times in 10 seconds at 2,000 RPM, the sensor is chemically poisoned and must be replaced.

Fluctuating Ground Voltage Above 0.1 Volts

• Root Cause: Corroded wire splices, loose engine ground straps, or moisture entry inside the wiring harness connector pins have introduced electrical resistance into the ground side of the circuit. This offset voltage confuses the ECU into thinking the fuel mixture is rich, causing a lean running condition.
• Actionable Fix: Clean the connector pins with electrical contact cleaner. Inspect the chassis ground connections on the engine block and frame. If resistance exists between the sensor signal ground wire and the engine block, run a dedicated overlay ground wire to bypass the damaged factory harness section.

Frequently Asked Questions

What color are the heater wires on a 4-wire O2 sensor?

On the vast majority of aftermarket and Bosch-style 4-wire oxygen sensors, the two heater wires are solid white. On Denso sensors, they are black, and on NGK/NTK sensors, they are yellow. Because these heaters operate on alternating polarity or basic DC loops, the two heater wires are interchangeable and can be connected in either direction.

Can I test a 4-wire O2 sensor without removing it from the vehicle?

Yes, testing the sensor while it is installed is the most accurate method because it allows you to analyze the real-time interaction between engine combustion and the exhaust stream. Using thin back-probe pins at the harness connector allows you to safely tap into the circuits while keeping the electrical plug connected and the engine running.

What should a 4-wire O2 sensor read at idle?

Once the engine is hot and running in closed-loop mode, an upstream O2 sensor should read a rapidly changing voltage that constantly sweeps between 0.1 volts and 0.9 volts. A downstream sensor (located behind the catalytic converter) should show a very stable, slow-moving voltage around 0.5 to 0.7 volts, indicating that the catalytic converter is successfully consuming oxygen.

How do I know if my O2 sensor heater is bad?

A bad heater element is indicated if your multimeter shows "OL" or infinite resistance when measuring across the two heater wires, or if your vehicle triggers a P0135, P0141, P0155, or P0161 check engine code. You can also confirm a failure if you do not measure 12 volts coming from the vehicle's fuse box to the heater harness connector during the initial key-on phase.

Can a bad O2 sensor cause an engine misfire?

Yes, a malfunctioning oxygen sensor can cause engine misfires. If the sensor falsely reports a lean condition, the ECU will continuously dump extra fuel into the engine, leading to fuel-saturated spark plugs that fail to ignite. Conversely, a falsely rich reading will cause the ECU to lean out the fuel mixture, causing dry lean misfires.
