How To Test A Furnace Limit Switch Like A Pro HVAC Technician

Testing a furnace limit switch requires isolating electrical power, accessing the burner compartment, and using a digital multimeter set to continuity or resistance mode to verify electrical closure across its terminals. A healthy switch reads zero resistance at room temperature, whereas a faulty unit remains open despite cooling down, which forces the furnace control board to shut down the burners while keeping the blower running continuously.

Essential Preparation and Equipment Checklist

Before beginning any diagnostic procedure on a residential forced-air heating system, preparation ensures both personal safety and accurate electrical readings. Working inside a gas furnace cabinet involves exposure to low-voltage control circuits and line-voltage components, making structured planning mandatory for homeowners and technicians alike.

• Essential Gear, Tools, and Materials:


  • Digital Multimeter (capable of measuring ohms and continuity with audible beep)
  • 1/4-inch and 5/16-inch nut drivers or a multi-bit screwdriver
  • Needle-nose pliers
  • Flashlight or headlamp
  • Work gloves and safety glasses
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding of basic residential electrical safety (NFPA 70 / National Electrical Code)
  • Familiarity with flame rollout switches, primary limit switches, and auxiliary limit controls
  • Recognition of standard HVAC wiring color codes and terminal designations
• Estimated Budget and Duration Benchmarks:


  • Time required: 20 to 45 minutes
  • Cost of replacement switch (if needed): $15 to $50
  • Professional service call alternative cost: $150 to $300

Step-by-Step Diagnostic and Testing Workflow

Executing this diagnostic routine safely requires strict adherence to power-down sequences. Never probe live circuits inside a gas furnace cabinet unless performing specific voltage drops under manufacturer supervision, which is unnecessary for basic limit switch verification.

Step 1: De-energize the HVAC System

Turn off the electrical power supply to the furnace by switching off the dedicated breaker in the main electrical panel. Additionally, switch off the service toggle switch mounted directly on the outside of the furnace chassis.

Warning: Never skip shutting off the power at both the breaker and service switch. Line voltage (120V AC) is present inside the furnace cabinet and poses a severe electrocution hazard.

Step 2: Remove the Furnace Access Panels

Locate and remove the upper and lower metal access doors of the furnace. The upper door covers the burner compartment and gas valve, while the lower door covers the blower motor compartment. Set the panels aside in a secure location.

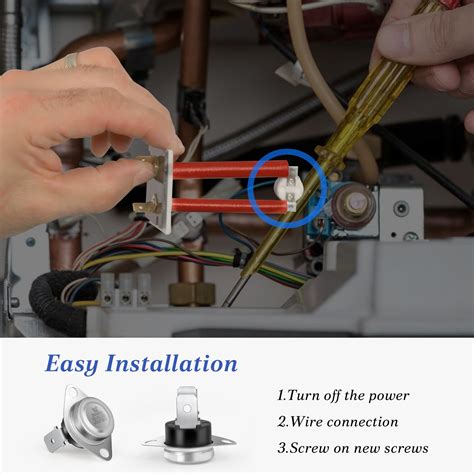

Step 3: Locate the Limit Switch Assembly

Scan the interior of the upper burner compartment, specifically along the plenum wall where the heat exchanger meets the supply air ductwork. The primary limit switch features a cylindrical metal probe inserted directly into the airstream, connected to two 1/4-inch spade terminals holding low-voltage wires.

Step 4: Disconnect the Wiring Terminals

Using needle-nose pliers, gently grasp the female spade connectors attached to the limit switch terminals. Pull straight back with steady pressure to slide the wires off the terminals. Avoid pulling on the wire insulation itself, as this can break the internal copper strands. Take a digital photo of the wire placement first if the assembly contains multiple switches.

Step 5: Set Up and Test the Multimeter

Turn your digital multimeter dial to the continuity setting, which is typically represented by a diode symbol or a wave icon that emits an audible beep when probes touch. Alternatively, select the lowest resistance range (200 ohms). Touch the two meter probes together to verify the display drops to zero ohms and the meter emits a continuous tone.

Step 6: Measure Resistance Across Switch Terminals

Place one multimeter probe onto the first terminal of the limit switch and the second probe onto the remaining terminal. Observe the meter display while the furnace is at room temperature. A functioning switch at ambient temperature must show a closed circuit, indicated by an audible beep, zero ohms of resistance, or a reading very close to 0.0.

Pro-Tip: If the furnace has recently been running, the limit switch may be in an open state due to residual heat trapped in the heat exchanger. Allow the furnace to sit unpowered for 15 minutes to cool completely before testing continuity.

Step 7: Evaluate Test Results and Determine Next Steps

If the multimeter displays an open loop (OL) or infinite resistance while the furnace is completely cold, the bimetal disc inside the switch has failed or warped permanently, and the unit must be replaced. If the switch shows zero resistance when cold, test it again after manually heating the metal probe with a heat gun or hair dryer while watching for the circuit to open.

Furnace Limit Switch Technical Specifications Matrix

Common Site Failures and Field Fixes

Diagnosing limit switch malfunctions requires looking beyond the switch itself to identify why the component opened or failed prematurely.

• Symptom: Blower runs continuously while burners refuse to ignite.


  • Root Cause: The bimetal disc inside the primary limit switch has warped and remains stuck in the open position even after the heat exchanger has cooled down.
  • Actionable Fix: Replace the limit switch with an exact OEM-matching part specified by the furnace manufacturer, ensuring the probe insertion length matches the original unit.
• Symptom: Furnace short-cycles on high limit during a heating call.


  • Root Cause: Restricted airflow caused by a severely clogged air filter, blocked supply registers, or a failing blower motor capacitor restricts heat transfer away from the heat exchanger.
  • Actionable Fix: Inspect and replace the HVAC air filter, clear all blocked duct registers, and verify the blower motor speed and capacitor ratings.
• Symptom: Manual reset rollout switch keeps tripping repeatedly.


  • Root Cause: Flame rollout caused by a cracked heat exchanger, obstructed flue pipe, or dirty burner assembly pushes intense heat backward into the burner compartment.
  • Actionable Fix: Shut down the system immediately and contact a certified HVAC technician to perform a combustion analysis and a heat exchanger camera inspection.

Frequently Asked Questions

What does a bad furnace limit switch look like?

A failing limit switch may exhibit physical signs of damage, such as discoloration, scorch marks around the terminals, cracks in the phenolic plastic housing, or a bent mounting flange. However, many failing switches appear entirely normal on the outside while suffering from internal bimetal fatigue that prevents proper electrical closure.

Can you bypass a furnace limit switch to test the system?

Bypassing a furnace limit switch with a jumper wire is strictly prohibited as a permanent fix and should only be performed for a few seconds by a trained technician to verify a diagnostic suspicion. Bypassing safety limits removes the primary protection against cracked heat exchangers and catastrophic residential fires.

How much does it cost to replace a furnace limit switch?

Purchasing a replacement limit switch independently typically costs between $15 and $50 depending on the furnace brand and switch complexity. If you hire a professional HVAC technician for the diagnostic service call and replacement labor, total expenses generally range from $150 to $250.

Where is the limit switch located on my furnace?

The limit switch is universally located inside the upper burner compartment, mounted directly onto the sheet metal wall dividing the burner area from the supply air plenum. You will see two low-voltage wires attached to spade terminals protruding from a metal disc or rectangular housing.

Why does my furnace fan run constantly with the thermostat set to auto?

When the blower motor runs continuously while the thermostat is set to auto, it usually indicates that the primary limit switch is stuck open. This safety feature forces the blower to run indefinitely to exhaust residual heat from the heat exchanger and prevent overheating when the switch fails.
