How To Test An Oil Pressure Sender: A Comprehensive Diagnostic Guide
Testing an oil pressure sender involves verifying the electrical resistance output across varying pressures or using a mechanical gauge to confirm actual engine oil pressure. By comparing the sender's ohmic range against the manufacturer’s service manual specifications while monitoring continuity and voltage, technicians can definitively distinguish between a faulty sensor and a genuine lubrication system failure.

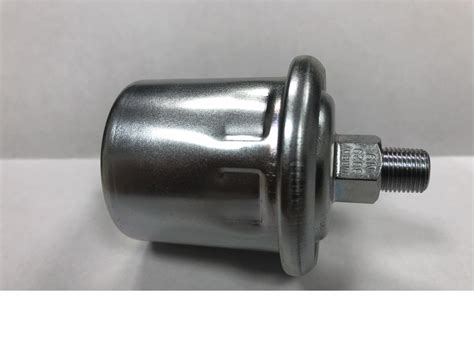

Preparation and Diagnostic Equipment Requirements
Before beginning the diagnostic process, ensure you have the correct tools to avoid damaging the delicate electrical pins on the sender or compromising the engine's oil seal. Testing is generally non-destructive, but improper removal of the sensor can lead to oil leaks if the threads are cross-threaded during reinstallation.
- Essential Diagnostic Tools: A high-quality digital multimeter capable of measuring resistance (Ohms) and DC voltage, a mechanical oil pressure test gauge kit with appropriate thread adapters, a flare nut wrench set for sender removal, and a clean shop rag.
- Safety and Technical Prerequisites: Ensure the engine oil level is at the manufacturer’s specified capacity and that the engine oil is within its service life. Always perform tests with the ignition in the ON position but the engine off for electrical checks, and with the engine at operating temperature for mechanical verification.
- Estimated Duration and Complexity: Expect to spend 30 to 60 minutes for a full diagnostic cycle. This procedure is rated as moderate technical difficulty, requiring a foundational understanding of automotive electrical circuits and basic engine lubrication pathways.
Step-by-Step Electrical and Mechanical Verification
Step 1: Visual Inspection and Circuit Continuity Check
Locate the oil pressure sender, typically found near the oil filter housing or on the engine block gallery. Inspect the wiring harness for signs of heat damage, oil saturation, or frayed insulation. Unplug the connector and verify that the pins are free from corrosion. Use your multimeter set to the Ohms (resistance) setting to check the continuity of the wire leading back to the instrument cluster or ECU. If the wire shows infinite resistance (an open circuit), the fault lies in the wiring harness rather than the sender unit.
Step 2: Testing Sender Resistance Values
With the engine off, locate the signal terminal on the sender. Place your multimeter probes between the signal terminal and the sender housing (ground). Consult your vehicle's service manual for the specific resistance range, which typically fluctuates between 0 to 90 Ohms or 10 to 180 Ohms depending on the manufacturer. If the multimeter displays an open loop (OL) or infinite resistance regardless of the engine's status, the internal diaphragm or resistive track of the sender has failed.
Step 3: Mechanical Gauge Comparison
To rule out a failing oil pump or blocked oil pickup tube, install a mechanical oil pressure gauge. Remove the existing oil pressure sender and thread the mechanical gauge adapter into the port. Start the engine and bring it to operating temperature. Compare the mechanical gauge reading to the manufacturer’s baseline specifications, which are often around 10 to 20 PSI at idle and 40 to 60 PSI at cruising RPM.
Warning: Never operate the engine at high RPM for an extended period with an unsecured mechanical gauge line, as high-pressure oil leaks can ignite if they contact hot exhaust components.
Step 4: Voltage Supply Verification
If the gauge remains at zero but the mechanical pressure test confirms the engine is producing adequate oil pressure, verify that the sender is receiving the correct reference voltage. Most senders require a 5V or 12V reference signal from the ECU or dashboard. If the voltage is absent, investigate the corresponding fuse or the instrument cluster's internal voltage regulator.
Vr6 Oil Pressure Sensor Location at Tracy Mcfall blog
Oil Pressure Sender Performance Metrics and Diagnostic Parameters
The following table outlines the expected behavior of a functioning oil pressure sender compared to common symptomatic conditions observed during diagnostic testing.
| Diagnostic State | Resistance (Ohms) | Expected Gauge Reading | Conclusion |
|---|---|---|---|
| Engine Off | High (e.g., 80-90) | Zero / Minimum | Normal Standby |
| Engine Idling | Medium (e.g., 40-50) | Mid-Scale | Normal Operation |
| Engine High RPM | Low (e.g., 10-20) | Maximum | Normal Operation |
| Sender Failure | Open Circuit (OL) | Pegged High/Low | Internal Fault |
| Oil Pump Failure | Fluctuating | Near Zero | Mechanical Fault |
Troubleshooting Common Sensor and System Failures
- Erratic Gauge Needle: This is frequently caused by a high-resistance connection at the sender terminal. Clean the connector with electrical contact cleaner and ensure a tight mechanical fit; if the issue persists, the internal resistance strip in the sender is likely worn.
- Gauge Pegs Immediately Upon Ignition: This indicates a short-to-ground in the signal wire. Inspect the wiring harness between the sender and the dashboard to ensure the insulation has not melted against the engine block or exhaust manifold.
- Consistent Low Pressure Warnings: If the warning light stays illuminated, first verify the actual pressure using a mechanical gauge. If the mechanical pressure is normal, replace the sender; if the mechanical pressure is indeed low, cease operation immediately to prevent catastrophic engine bearing failure.
Frequently Asked Questions
Can I drive my car if the oil pressure sender is faulty?
Driving with a suspected faulty sender is dangerous because you cannot distinguish between a sensor error and an actual loss of oil pressure. If you are uncertain of your engine's health, you must verify the pressure with a mechanical gauge before continuing to drive.
Does a faulty oil pressure sender cause poor engine performance?
Generally, no, as the oil pressure sender is a monitoring device rather than a control component. However, in modern vehicles where the ECU uses oil pressure data to manage variable valve timing, a faulty signal may trigger a "Limp Mode" or reduced performance state.
How do I know if the issue is the sender or the gauge?
By disconnecting the sender wire and grounding it to the engine block, you can observe the gauge behavior. If the gauge moves to its maximum position when grounded, the gauge and wiring are likely functioning, pointing to a failed sender.
Why does my oil pressure drop when the engine gets hot?
Oil viscosity decreases as temperature rises, which naturally results in lower pressure readings. If the pressure drops below the manufacturer’s minimum threshold at hot idle, it often indicates worn engine bearings rather than a faulty sender.
Ensure Your Engine Reliability Through Precise Diagnostics
Maintain your vehicle’s longevity by performing regular pressure checks using calibrated equipment to ensure your dashboard instrumentation remains accurate. Consult your service manual for model-specific pressure thresholds and follow the diagnostic steps outlined above to restore confidence in your vehicle's health.
