How To Tie A Chod Rig: The Ultimate Guide To Carp Fishing Success

The chod rig is a highly versatile pop-up presentation that utilizes a stiff, curved hooklink to ensure the bait remains suspended above debris, weed, or silt. Achieving a successful presentation requires precise curvature of the monofilament or fluorocarbon boom, proper attachment to a leadcore or leader system, and the correct calibration of the bait’s buoyancy to trigger a self-hooking event.

Essential Components and Preparation Standards

Mastering the chod rig requires an understanding of specific mechanical properties, primarily involving stiff materials that provide the necessary memory to maintain a curved shape. This rig is designed for use with helicopters style setups, allowing the hooklink to rotate freely around the leader while the lead sits on the lakebed.

• Hook Material: Stiff monofilament or specialized chod filament ranging from 20lb to 25lb breaking strain.
• Hooks: Short-shank, wide-gape hooks with an out-turned eye, typically sized 4 to 8.
• Leader Material: Leadcore or heavy-duty fluorocarbon leaders, usually between 0.5 to 1.5 meters in length.
• Essential Hardware: Swivel for the hooklink attachment (size 11 ring swivels are standard), bait screws or bait floss, tungsten putty for counterbalancing, and micro-rig swivels.
• Time and Expertise: Expect a 10-minute setup time for initial mastery. Prerequisite knowledge includes the ability to tie secure knotless knots and perfection loops.

Procedural Workflow for Constructing the Chod Rig

Step 1: Preparing the Stiff Link and Hook Attachment

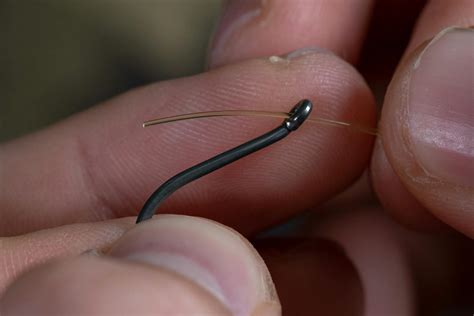

Measure approximately 15 centimeters of stiff filament. This length provides the necessary curve to allow the hook to rotate toward the bottom lip of the carp. Thread the line through the out-turned eye of the hook from the front to the back. This specific direction is vital, as it causes the rig to kick away from the leader, preventing tangles during the cast.

Step 2: Forming the Hook Link

With the line through the eye, create a knotless knot. Wrap the tag end around the shank of the hook four or five times. Ensure the turns are neat and compact. Thread the tag end back through the eye of the hook in the same direction. Tighten the knot securely, ensuring the line exits the eye at a slight angle. This angle is fundamental to the aggressive turning mechanics of the rig.

Step 3: Setting the Curve and Size

Pass the end of the stiff link through the eye of a size 11 ring swivel. Determine the desired length of your rig—typically between two and four inches—and fold the material back on itself to create a D-rig or a simple loop knot. Use a steam kettle or a dedicated multi-tool to gently curve the stiff filament.

Pro-Tip: When steaming the rig, keep your fingers at a safe distance and pull the material firmly over the rising steam. Do not hold it in the heat for too long, or the material will lose its structural integrity and become brittle.

Step 4: Final Assembly and Counterbalancing

Attach your bait using a bait screw or by threading it onto the D-rig section. Once the bait is secured, test the rig in a container of water. The hook should sink, but the pop-up should keep it suspended just off the bottom. Apply small amounts of tungsten putty to the knot or the shank to ensure the rig sits exactly at the height you desire.

Material Selection and Mechanical Properties

The following table outlines the correlation between hook material diameter, recommended hook size, and target lakebed conditions to ensure maximum efficacy.

Troubleshooting Common Rig Failures

• Failure Scenario 1: The rig is tangling upon impact.


  • Root Cause: The hooklink is too long or the stiff material has lost its tension, causing it to collapse onto the leader.
  • Actionable Fix: Shorten the rig length by one centimeter and ensure the stiff material is fully steamed into a distinct curve that forces the hook point away from the leader.
• Failure Scenario 2: The hook is not turning or catching the bottom lip.


  • Root Cause: The hook eye angle is insufficient, or the hook point is being shielded by the bait.
  • Actionable Fix: Use a pair of pliers to gently adjust the angle of the out-turned eye, or increase the size of the D-loop to ensure the bait does not obstruct the hook point.
• Failure Scenario 3: The pop-up is rising too quickly or floating the lead.


  • Root Cause: Excess buoyancy in the pop-up compared to the weight of the hook.
  • Actionable Fix: Add additional tungsten putty to the hooklink knot until the rig slowly sinks or hovers neutrally, depending on your preferred presentation.

Frequently Asked Questions

Why must the hook have an out-turned eye?

An out-turned eye is essential because it allows the stiff hooklink material to exit at an aggressive angle. This geometry forces the hook to turn and bury itself in the bottom lip of the carp as soon as the fish creates tension on the line.

Can the chod rig be used on all lakebeds?

While the chod rig is most effective over silt, weed, and light debris, it is also highly efficient on hard gravel. Its ability to sit "on top" of the terrain makes it a universal presentation, though you should adjust the length of the leadcore leader depending on the depth of the silt.

How much putty should I add to the rig?

You should add just enough tungsten putty to counteract the buoyancy of the pop-up bait. The goal is a "slow-sink" or "balanced" presentation where the hook rests on the bottom while the bait remains floating.

How do I store chod rigs without losing their curve?

Store your pre-tied rigs on a dedicated rig board or a foam winder. Avoid placing them in loose tackle boxes, as the pressure can flatten the curve and compromise the stiff material's ability to reset itself after a cast.

Elevate Your Carp Fishing Presentation

Refining your chod rig construction is a transition from basic fishing to precision angling. Practice these tying techniques at home to build muscle memory, ensuring that every cast you make is ready to fool the most cautious carp in your venue.
