How To Unlock Orthographic View In Maya: A Comprehensive Camera Troubleshooting Guide

To unlock an orthographic view in Autodesk Maya, select the affected camera (such as Top, Front, or Side) in the Outliner, open the Channel Box, highlight all locked transform channels, right-click, and select Unlock Selected. Additionally, click the padlock icon in the viewport panel toolbar or disable the Lock Camera attribute inside the Attribute Editor to restore full pan, zoom, and track capabilities.

Pre-Troubleshooting Audit: Maya Camera Hierarchy and Interface Setup

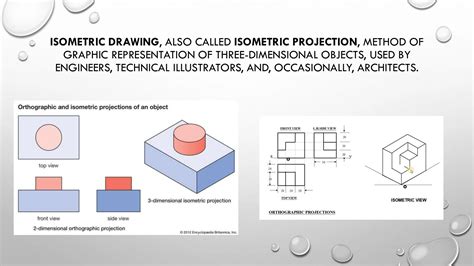

Before resolving camera movement restrictions, it is vital to understand how Autodesk Maya manages viewport cameras. Maya utilizes default, non-deletable DAG nodes for its primary orthographic perspectives: top, front, and side. Unlike custom cameras, these default orthographic views have specific operational constraints hardcoded into their behavior. For example, standard orthographic cameras cannot be tumbled (rotated) under normal conditions, as they are locked to specific 2D planes.

Understanding whether your orthographic camera is locked via transform values, viewport settings, reference locks, or scene corruption is essential. Performing a quick system and scene audit prevents unnecessary troubleshooting steps and ensures you apply the correct structural fix.

Technical Checklist for Scene Diagnostics

• Software Compatibility: This workflow applies to all modern versions of Autodesk Maya (including Maya 2020 through Maya 2025) utilizing the Viewport 2.0 rendering engine.
• Essential UI Panels: Ensure the Outliner, Channel Box/Layer Editor, and Attribute Editor are visible. If hidden, restore them via Windows then UI Elements.
• Prerequisite Knowledge: Familiarity with camera navigation hotkeys, including Alt plus Middle Mouse Button for panning, and Alt plus Right Mouse Button for zooming.
• Estimated Resolution Time: 2 to 5 minutes per camera node.
• Hardware and File Status: Verify that the scene file is not set to Read-Only and that the active camera node is not stored within a locked display layer or an uneditable referenced scene file.

Complete Diagnostics and Workflows to Restore Maya Orthographic Views

To resolve frozen, unresponsive, or locked orthographic views, proceed through the following diagnostic steps sequentially. These methods address the most common points of failure, starting with simple viewport state toggles and progressing to deep node attribute modifications.

Step 1: Disabling Viewport-Level Camera Locking

Maya features a quick-access toggle directly within the viewport interface designed to prevent accidental modifications to your camera positioning. When activated, this feature restricts all pan, zoom, and rotation inputs.

1. Activate the locked orthographic viewport panel (Top, Front, or Side) by clicking inside it.
2. Look at the toolbar located directly above the viewport grid display.
3. Locate the Lock Camera icon, which resembles a small padlock. If the lock icon is highlighted in blue or shows a closed shackle, it is currently active.
4. Click the Lock Camera icon once to toggle it off. The padlock icon should now appear open and unshaded.
5. Attempt to pan using Alt plus Middle Mouse Button or zoom using Alt plus Right Mouse Button to verify that viewport navigation is restored.

Step 2: Unlocking Transform Attributes in the Channel Box

If the viewport toggle does not resolve the issue, the camera's actual transformation nodes (Translate X, Translate Y, Translate Z, Rotate X, Rotate Y, Rotate Z, Scale X, Scale Y, and Scale Z) may be explicitly locked. This often occurs when importing assets from external layout artists or when using production rigs.

1. Open the Outliner by navigating to Windows and selecting Outliner.
2. By default, Maya hides default orthographic cameras in the Outliner. To make them visible, go to the Outliner menu, click Display, and ensure that Dag Objects Only is unchecked.
3. Locate and select the locked camera node, such as top, side, or front.
4. With the camera selected, look at the Channel Box on the right side of the screen.
5. Inspect the input boxes next to the Translate and Rotate channels. If they are locked, they will display a gray or dark red indicator band next to their numeric values.
6. Click and drag your mouse to highlight all the locked channel names from Translate X down to Scale Z.
7. Right-click anywhere over the highlighted channel names to open the context menu.
8. Select Unlock Selected from the dropdown menu. The colored indicator bands will disappear, indicating that the transformation attributes are now free to receive input values.

Step 3: Clearing Attributes via the Attribute Editor

Some advanced scene structures lock the camera behavior through specific node parameters within the Attribute Editor. This includes explicit camera locking toggles that bypass the standard Channel Box locks.

1. Select the restricted orthographic camera in the Outliner or by clicking View then Select Camera from the menu of the locked viewport.
2. Open the Attribute Editor by pressing Ctrl plus A, or by clicking the Attribute Editor tab on the far right of the interface.
3. Navigate to the first tab, which represents the Transform node of the camera (for example, top or side).
4. Expand the Limit Information section, followed by the Translate and Rotate subsections. Verify that none of the check boxes for minimum or maximum limits are active. If they are checked, uncheck them to allow infinite range of motion.
5. Switch to the second tab, which represents the Camera Shape node (for example, topShape or sideShape).
6. Locate the Camera Attributes dropdown menu.
7. Find the checkbox labeled Lock Camera. If this box is checked, click it to uncheck it. This action programmatically releases the camera from any hard locks.

Step 4: Recreating Corrupted Default Orthographic Cameras

If the default orthographic views remain completely unresponsive, display a blank gray screen, or have been accidentally deleted from the scene, you must recreate the default orthographic camera nodes. Maya stores default cameras in a system startup set; if this set is broken, you can rebuild them through the panel menu.

1. In the viewport panel menu of the broken view, click on Panels.
2. Hover over the Orthographic option.
3. Select New, then choose the direction you need to rebuild, such as Top, Front, or Side. This creates a new camera instance (e.g., top1) that functions as a clean, unlocked orthographic view.
4. If you must restore the original system-named camera node, open the Script Editor by going to Windows, General Editors, and selecting Script Editor.
5. In the MEL tab, type the camera command for the specific view you need, such as camera -e -orthographic true top; and press Ctrl plus Enter to execute. This command forces Maya to re-evaluate the orthographic status of the default node and clears custom overrides.

Maya Viewport Camera Attribute Matrix

The following table compares the default and restricted operational states of standard Maya cameras. Use these parameters to verify that your unlocked cameras match the factory default specifications.

Diagnostics for Persistent Orthographic View Failures

Viewport is Completely Blank and Controls Seem Locked

• Root Cause: The camera's translation values have drifted to extreme coordinates (such as millions of units away from the origin), or the Near and Far Clipping Planes are too narrow for the scale of your scene, making it appear as though the camera is frozen.
• Actionable Fix: Select the affected camera in the Outliner. In the Channel Box, manually type 0 in the Translate X, Translate Y, and Translate Z input boxes to return the camera to the origin. Next, open the Attribute Editor, go to the Shape tab, and set the Near Clip Plane to 0.1 and the Far Clip Plane to 100000. Finally, click inside the viewport and press the F key to Frame Selection on your geometry.

Maya Displays a "Cannot Tumble in Orthographic Views" Warning

• Root Cause: You are attempting to use the Alt plus Left Mouse Button shortcut to orbit (tumble) the camera. By architectural design, Maya prevents rotational tumbling in orthographic views to preserve their exact 2D projection angles.
• Actionable Fix: Do not attempt to rotate the view. Instead, navigate using only panning (Alt plus Middle Mouse Button) and zooming (Alt plus Right Mouse Button). If you must view your model from an angle, switch the viewport panel to a perspective camera by navigating to Panels, Perspective, and choosing persp.

Camera Attributes Are Grayed Out and Cannot Be Unlocked

• Root Cause: The camera is part of an imported file reference, is locked by an animation layer, or is constrained by an input connection (such as a parent constraint or set driven key).
• Actionable Fix: Open the Reference Editor via File, Reference Editor. If the camera belongs to a referenced file, you must open the source file directly to unlock it. If the camera is in your local scene but has input connections, select the grayed-out attributes in the Channel Box, right-click, and select Break Connections.

Custom Orthographic Camera is Locked to the Grid Plane

• Root Cause: The Orthographic Width attribute is set to an extremely low or high value, which limits visual feedback during pan and zoom inputs.
• Actionable Fix: Open the Attribute Editor for the custom camera shape node. Locate the Orthographic Camera Attributes section. Manually adjust the Orthographic Width slider to a value that corresponds to your scene scale, such as 30 or 100, to restore normal zoom increments.

Frequently Asked Questions

How do I reset a modified orthographic camera back to its default position?

To restore any default orthographic camera to its original factory state, select the camera node in the Outliner and open the Channel Box. Reset the Translate attributes to 0. Set the Rotate attributes back to their system defaults: Top should be set to Rotate X -90, Front should be set to Rotate X 0 and Y 0, and Side should be set to Rotate Y 90.

Why is the lock icon missing from my viewport menu bar?

If the padlock icon is not visible on the viewport panel toolbar, the panel UI elements may be collapsed or hidden. You can access the lock feature through the main viewport menu instead by clicking on View, then choosing Camera Tools, and selecting Lock Camera to toggle the state.

How do I unlock all cameras in my scene simultaneously using a script?

You can quickly unlock all cameras in a scene by executing a simple command. Open the Script Editor, switch to the Python tab, paste the command import maya.cmds as cmds; [cmds.setAttr(f"{cam}.lockTransform", False) for cam in cmds.ls(cameras=True)], and execute it. This script automatically loops through all camera nodes in the scene and disables their transform locks.

Can I enable rotation on an orthographic camera in Maya?

No, true orthographic cameras in Maya cannot be tumbled or rotated away from their perpendicular projection axes. If you require an orthographic look that can be rotated, you must create a custom perspective camera, position it at a distance, set the Focal Length to an extremely high value (such as 500mm or more), and zoom in to simulate a flat, isometric perspective.
