How To Use A Timing Light For Precision Ignition Adjustment
A timing light is an essential diagnostic tool used to synchronize the spark plug firing event with the mechanical position of the piston within the cylinder, measured in degrees of crankshaft rotation. Achieving accurate ignition timing is critical for maximizing combustion efficiency, preventing engine knock, and ensuring optimal horsepower delivery across the entire RPM range.
Essential Prerequisites and Equipment Requirements
Before engaging with the ignition system, you must ensure you have the proper tooling to perform the adjustment safely and accurately. Attempting to time an engine without the correct equipment can lead to catastrophic detonation or timing drift.
Essential Equipment:
Inductive timing light (a model with an adjustable advance dial is highly recommended for engines without timing markers).
A reliable set of combination wrenches or a socket set for loosening the distributor hold-down bolt.
A clean rag for cleaning the harmonic balancer or flywheel to make timing marks visible.
A remote starter switch or a helper to turn the engine over if necessary.
White paint pen, chalk, or correction fluid to highlight timing marks on the balancer.
Procedural Benchmarks:
Safety First: Ensure the engine is at normal operating temperature unless the manufacturer specifies otherwise.
Vacuum Advance: If the vehicle is equipped with a vacuum advance canister, the vacuum line must be disconnected and plugged before checking base timing.
Knowledge Requirement: You must locate the correct ignition timing specification (in degrees BTDC—Before Top Dead Center) for your specific engine code, often found on the under-hood emission sticker or in the factory service manual.
Duration: Expect the procedure to take 20 to 45 minutes depending on the accessibility of the distributor hold-down bolt.
The Systematic Procedure for Ignition Timing
Step 1: Locating and Preparing the Timing Marks
Locate the harmonic balancer (crankshaft pulley) and the timing pointer attached to the engine block. Clean these areas thoroughly. Use a paint pen or chalk to highlight the specific notch on the balancer that corresponds to the timing degree specified for your engine. If the marks are faint or rusted, they will be impossible to read under the strobe light.
Step 2: Connecting the Timing Light
Connect the timing light’s power leads to the vehicle battery, ensuring positive (red) goes to the positive terminal and negative (black) goes to the negative terminal. Attach the inductive pickup clamp around the number one spark plug wire.
Warning: Ensure the inductive pickup is pointing toward the spark plug and away from the distributor cap. The arrow on the clamp, if present, should point toward the spark plug. Keep the wires away from hot exhaust manifolds or moving engine belts.
Step 3: Configuring the Engine State
Start the engine and allow it to reach its normal idle speed. If your vehicle has vacuum advance, ensure the line is removed from the distributor and sealed with a golf tee or bolt to prevent a vacuum leak that could alter the idle speed and timing readings. Use a tachometer to confirm the engine is idling at the manufacturer's recommended RPM; timing readings are often invalid if the idle is too high, as centrifugal advance may have already begun to trigger.
Step 4: Reading and Adjusting the Timing

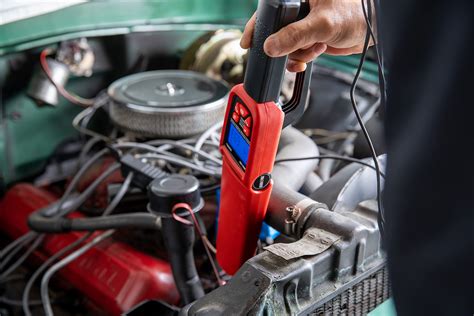

Point the timing light at the harmonic balancer and pull the trigger. The strobe effect will make the timing mark on the balancer appear stationary. If the mark does not align with the pointer, loosen the distributor hold-down bolt just enough to allow the distributor to rotate with slight resistance. Slowly rotate the distributor housing until the mark on the balancer aligns perfectly with the pointer.
Pro-Tip: If you are using a dial-back timing light, set the dial on the back of the light to the desired degree of advance and rotate the distributor until the mark on the balancer aligns with the zero (TDC) mark on the timing pointer. This is often more precise than relying on multiple physical marks on the balancer.
Step 5: Locking Down the Settings
Once the timing is set to the manufacturer's specification, tighten the distributor hold-down bolt carefully. Re-check the timing with the light one final time, as tightening the bolt often shifts the distributor housing slightly. Once confirmed, stop the engine, remove the timing light, and reconnect the vacuum advance line.
SUNPRO Inductive Timing Light CP7545 - Etsy
Comparative Analysis of Ignition Timing Methods
| Timing Method | Accuracy Level | Required Equipment | Best Application |
|---|---|---|---|
| Static Timing | Low | Test Light | Initial setup or engine installation |
| Standard Strobe | Moderate | Basic Timing Light | Stock engines with clear markers |
| Dial-Back Strobe | High | Advance Timing Light | Performance engines, custom builds |
| Digital/Computer | Highest | ECU Diagnostic Tool | Modern engines with crank triggers |
Common Failure Scenarios and Field Remediation
Issue: The timing mark appears to bounce erratically or is invisible.
Root Cause: A failing harmonic balancer outer ring (common on older vehicles) or a damaged number one spark plug wire that is causing weak signals for the inductive pickup.
Actionable Fix: Inspect the balancer for "slippage" where the outer rubber ring has degraded. If the balancer is stable, test the light on another spark plug wire to confirm the trigger signal.
Issue: Engine timing will not hold after tightening the distributor bolt.
Root Cause: The distributor hold-down clamp is worn, or the threads in the engine block are stripped.
Actionable Fix: Replace the hold-down clamp and bolt. If the block threads are stripped, utilize a thread repair kit or an oversized bolt if clearance permits.
Issue: Timing marks remain completely stationary but far away from the pointer.
Root Cause: Incorrect firing order or the distributor was installed a tooth off during a recent removal.
Actionable Fix: Re-verify the firing order based on the engine manufacturer’s manual. If the order is correct, pull the distributor and reinstall it one tooth over to gain the necessary adjustment range.
Frequently Asked Questions
Why must I disconnect the vacuum advance before checking timing?
The vacuum advance canister automatically adjusts timing based on engine load. Leaving it connected introduces variable timing that prevents you from setting the baseline static timing required for a proper tune-up.
What happens if my ignition timing is too advanced?
Excessive timing advance leads to pre-ignition and detonation, commonly referred to as "pinging" or "knocking." This can result in shattered piston lands, burnt valves, and catastrophic internal engine damage over time.
Is it possible to time an engine without a timing light?
Technically, you can perform static timing to get the engine running, but it will lack precision. A static test only ensures the engine fires near TDC, whereas a timing light ensures the ignition event occurs at the exact millisecond required for peak cylinder pressure.
Does the grade of fuel affect ignition timing?
Higher octane fuel burns more slowly and resists detonation, which sometimes allows for more aggressive timing maps. However, you should always time the engine to the manufacturer's specifications first before experimenting with timing changes.
Optimize Your Engine Performance Today
Proper ignition timing is the difference between a sluggish engine and a finely tuned machine that operates at peak efficiency. Consult your service manual for your specific engine parameters and perform your timing adjustment today to ensure longevity and power.
