Building Interactive Vue Heatmap Charts: Implementing High-Performance Rich UI Solutions In 2026

To avoid topical confusion, this guide focuses entirely on coordinate-based grid matrix heatmaps (visualizing multi-dimensional numeric data through colored grids) rather than user-behavior click tracking maps overlaying live web pages.

Modern enterprise web applications demand highly performant, visually rich dashboard metrics. As datasets scale, rendering high-density heatmaps without sacrificing UI smoothness presents a serious technical hurdle. Leveraging the Vue 3 Composition API, contemporary reactive design patterns, and efficient rendering engines allows frontend engineers to build gorgeous, responsive, and deeply analytical heatmap components.

Developing a state-of-the-art Vue heatmap in 2026 requires understanding the critical balance between immediate visual response, color theory, data density, and rendering architecture.

The Architectural Paradigm of Vue 3 Data Visualization

Creating rich UI heatmaps in Vue requires shifting how we manage component state. The core reactivity system of Vue, while exceptional for standard form inputs and document object model updates, can introduce critical performance degradation when tracking thousands of individual data cells.

In a typical 100 by 100 matrix, you are managing ten thousand distinct data points. If Vue establishes deep reactive proxies on every coordinate, value, and metadata property within that matrix, the memory overhead scales exponentially.

To circumvent this in 2026, experienced developers utilize shallow reactivity. By declaring your raw dataset or your chart instances using the shallowRef hook rather than ref, you instruct Vue to only monitor reference changes to the root object. The internal properties remain untouched by proxy wrappers, eliminating unnecessary rendering loops and freeing up valuable main-thread execution time.

Another major architectural shift is the separation of the layout state from the rendering loop. Rich interfaces rely on real-time feedback, such as crosshairs tracking the cursor, dynamic grid highlighting, and instantaneous tooltips. These micro-interactions should never trigger a complete recalculation or redraw of the parent heatmap matrix. Isolating the interactive layer as a transparent canvas or SVG overlay positioned directly over the static data grid ensures butter-smooth interaction rates of sixty frames per second.

Top Vue Heatmap Libraries for Enterprise Applications

Selecting the correct underlying library prevents architectural dead-ends midway through production. Depending on your scaling needs, project constraints, and specific UI demands, several exceptional visualization libraries dominate the Vue ecosystem in 2026.

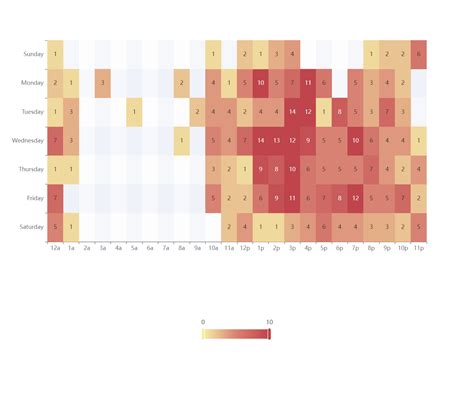

Apache ECharts: The Gold Standard for Scalability

For complex analytics applications processing massive telemetry grids, Apache ECharts wrapped in vue-echarts is the industry benchmark. Its ability to switch dynamically between SVG and Canvas renders means you can serve crisp vector graphics to tablet users with smaller grids, while seamlessly transitioning to high-performance Canvas rendering for heavy desktop datasets.

ApexCharts: Rapid Deployment for Standard Dashboards

When your main objective is presenting a beautiful, modern aesthetic with minimum custom styling, ApexCharts shines. It offers gorgeous defaults with subtle shadows, rounded borders, and clean color ramps. However, because it relies exclusively on SVG rendering without virtualization, its performance degrades significantly when the matrix exceeds a few thousand data points.

Implementing a High-Performance Render Architecture

To build a custom, highly interactive heatmap directly in your Vue application, you must choose between an SVG-based approach or an HTML5 Canvas-based approach.

SVG: Perfect for Interactive Control

If your heatmap is relatively small (under two thousand cells), SVG offers unmatched developer ergonomics. Every cell is a standard DOM element, meaning you can bind native Vue event listeners (like mouseenter or click) directly to each rectangle. Applying CSS transitions for smooth hover states or styling borders dynamically is as simple as manipulating standard class bindings.

Canvas: The High-Density Necessity

Once your datasets scale to representing continuous time-series analytics, performance demands Canvas. In Canvas, the entire heatmap is a single flat image. There are no individual DOM nodes to query, select, or listen to.

To implement interactive UI features like tooltips on a Canvas heatmap, you must calculate coordinates manually. By capturing the cursor relative position on the Canvas container, dividing the pixel width by the number of columns, and dividing the pixel height by the number of rows, you determine the exact matrix cell index currently hovered. This single-point mathematical lookup is incredibly fast and avoids the massive overhead of managing thousands of DOM nodes.

Step-by-Step Optimization Strategy for Massive Datasets

When constructing an enterprise-ready heatmap component, follow this structured optimization lifecycle to guarantee smooth performance and high visual fidelity.

1. Decoupling State with Shallow References

When receiving raw JSON payloads from your API, do not pass them directly into a standard reactive Vue ref. Instead, wrap the data structure in a shallowRef. This ensures that the chart update sequence executes without Vue trying to watch every coordinate point deep inside your data matrix.

2. Offscreen Rendering and Double Buffering

For real-time streaming data, utilize an offscreen canvas to pre-render the visual grid layout. Once drawn offscreen, use the drawImage method to copy the fully compiled frame onto your primary visible canvas in a single paint operation. This eliminates screen tearing and minimizes layout recalculation overhead during fast data sweeps.

3. Smart ResizeObserver Integration

Instead of binding expensive window resize listeners to trigger chart updates, wrap your chart container in a modern ResizeObserver. By throttling the resize callback function using requestAnimationFrame, you ensure that the chart only recalculates its visual dimensions in sync with the hardware refresh rate.

4. Color Interpolation Offloading

Rather than computing complex HSL-to-RGB color scale interpolations on the fly for every single rendered cell, pre-calculate a static color array of two hundred and fifty-six shades representing your desired gradient palette. When drawing each cell, map its normalized value (ranging from zero to one) directly to an index in this pre-calculated array. This replaces expensive mathematical interpolation with lightning-fast array index lookups.

Designing an Outstanding User Interface and Accessibility Layer

A rich user interface goes far beyond simple colored squares. It requires careful balance across visual feedback systems, color accessibility, and responsive typography.

Dynamic Legends and Visual Filters

Provide users with interactive control over the visual presentation. By implementing a dual-slider range selector on your color legend, users can filter the heatmap in real time. For example, if a user drags the lower slider bound upward, cells representing lower numeric thresholds should instantly fade to a semi-transparent gray, highlighting only the critical high-value zones.

Color Contrast and CVD Accessibility

One in twelve men and one in two hundred women experience Color Vision Deficiency (CVD). Traditional red-to-green heatmaps are unreadable to those with protanopia or deuteranopia. In 2026, standard design systems utilize color palettes like Viridis (deep blue to bright yellow) or magma (black to light pink), which maintain perceptual uniformity and high-contrast legibility across all forms of color blindness.

Design System Accessibility Standards for 2026

Contrast Ratios for Critical Elements Ensure that all text elements, such as row/column labels and legend values, maintain a minimum contrast ratio of 4.5:1 against the background to meet strict WCAG AAA guidelines.

Keyboard-Accessible Matrices When using SVG rendering, assign a tabindex of zero to each cell and provide ARIA grid roles. This allows users navigating with keyboard tab keys to focus on individual cells, prompting screen readers to read aloud the row, column, and precise numeric metric.

Frequently Asked Questions

How do you handle large datasets in a Vue heatmap without crashing the browser?

To prevent performance degradation or browser crashes when displaying large datasets, render the heatmap utilizing an HTML5 Canvas engine rather than SVG. Furthermore, store your raw data arrays inside a shallowRef rather than a standard reactive ref to disable Vue’s deep reactivity proxy wrapping, which dramatically reduces memory footprints and eliminates interface stuttering.

Can I render custom HTML elements inside Vue heatmap tooltips?

Yes, you can render complex HTML within tooltips by utilizing the tooltip formatter options provided by advanced libraries like ECharts or Highcharts. Alternatively, you can build a custom, absolute-positioned Vue component that tracks the hover coordinates of your cursor and dynamically injects any structured Vue templates, icons, or live telemetry data inside it.

What is the difference between an activity heatmap and a matrix heatmap in Vue?

Activity heatmaps overlay coordinate intensities on top of spatial images or website layouts to visualize user interaction hot-spots. Matrix heatmaps represent tabular data structures where rows and columns denote distinct categories, and the color of each square cell represents a specific numerical variable.

How do I implement responsive scaling for Vue heatmaps on mobile screens?

You can implement responsive scaling by encapsulating your chart container inside a custom parent container managed by a ResizeObserver. When the observer detects a change in container width or height, trigger the resize or redraw function of your chart library, using a throttled callback to match the refresh frequency of the screen.

Which library offers the best out-of-the-box accessibility for screen readers?

Highcharts provides the absolute best-in-class accessibility suite via its dedicated Accessibility Module, offering robust keyboard navigation, structured screen reader announcements, and exportable data tables. Apache ECharts also provides configurable ARIA specifications, though it requires more manual setup to achieve full compliance.

Elevating Your Vue Analytics Dashboard

Creating a highly functional Vue heatmap chart with a rich user interface requires a thoughtful combination of modern state management, high-performance rendering strategies, and accessible design principles. By decoupling heavy data from Vue’s deep reactivity system using shallow references, choosing the correct engine for your scaling needs, and implementing thoughtful visual feedback, you ensure that your analytical tools remain fast, accessible, and beautiful.

As you build out your telemetry dashboards, continuously test your visualizations under heavy load stress tests, verify color accessibility against CVD filters, and design interaction layers that make complex analytical data easy to interpret at a glance.
