How To Wind A Garage Door Torsion Spring Safely: A Complete Professional Guide

Winding a garage door torsion spring involves applying calculated torque to the spring coils using professional-grade winding bars to counterbalance the door's weight. For a standard seven-foot-tall door, the process typically requires 30 to 31 quarter-turns (approximately 7.5 full rotations) to achieve the necessary lifting force of 150 to 250 pounds depending on door material.

Technical Preparation and Safety Equipment Standards

Before attempting to wind a torsion spring, you must understand the mechanical physics at play. A garage door spring is a high-cycle, high-tension component that stores significant potential energy. Failure to use the correct tools or follow precise increments can result in catastrophic failure of the winding cone or the shearing of the winding bars.

Essential Equipment Checklist

• Professional Winding Bars: You must use two solid, cold-rolled steel winding bars. For most residential doors, these are 1/2-inch or 5/8-inch in diameter and 18 inches long. Never use screwdrivers, rebar, or pipes, as these can slip or bend under the 400+ inch-pounds of torque.
• Wrenches and Sockets: A 7/16-inch or 9/16-inch open-end wrench is required for the set screws on the winding cone.
• Locking Pliers (Vice-Grips): High-quality locking pliers are essential for securing the torsion shaft against the header to prevent unwanted rotation during the winding process.
• Safety Gear: Impact-resistant safety glasses and heavy-duty leather gloves are non-negotiable.
• Measuring Tape: Used to measure the spring length and wire diameter to verify the spring rate matches the door weight.

Pre-Procedure Setup

1. Disconnect the Opener: Pull the emergency release cord (usually red) to disconnect the door from the automated trolley. This prevents the motor from engaging while you are working.
2. Lock the Door Down: Place a C-clamp or vice-grips on the vertical track just above one of the rollers. This prevents the door from flying upward if you over-tension the spring during the process.

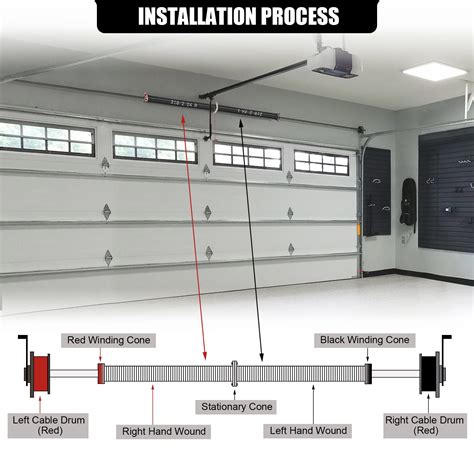

3. Identify Spring Orientation: Standard residential setups use "left-wind" springs on the right side (from inside the garage) and "right-wind" springs on the left side. The winding direction is almost always "up" toward the ceiling to add tension.

Engineering the Perfect Counterbalance: The Step-by-Step Workflow

Winding a spring is a rhythmic process that requires total concentration. You are not just turning a piece of metal; you are calibrating a mechanical system to within a few inch-pounds of accuracy.

Step 1: Secure the Torsion Shaft

Before touching the spring, you must ensure the torsion shaft cannot move independently of your control. Attach your locking pliers to the torsion shaft and brace them against the wall (header) above the door. This serves as a fail-safe. If a winding bar slips, the pliers will prevent the entire shaft from spinning wildly, which could otherwise unspool the cables and cause the door to crash.

Step 2: Insert the First Winding Bar

Identify the winding cone on the end of the spring. It will have four holes spaced 90 degrees apart. Insert the first winding bar into the hole facing downward. Ensure the bar is fully seated at the bottom of the hole. A common mistake is only partially inserting the bar, which can cause the hole to "round out" or the bar to kick back under tension.

Warning: Never stand directly in front of the winding bars. Always position your body to the side so that if a bar should slip or the spring should break, the trajectory of the bar will miss your head and torso.

Step 3: Loosen the Set Screws

While maintaining a firm grip on the winding bar, use your wrench to loosen the two set screws on the winding cone. You will feel the tension of the spring transfer from the shaft to your hand via the winding bar. This is the moment of maximum risk; do not let go of the bar.

Step 4: The Winding Sequence

The winding process is performed in quarter-turn increments. To wind the spring (add tension):

1. Pull the first winding bar upward (toward the ceiling) 90 degrees.
2. While holding the first bar steady with one hand, insert the second winding bar into the next available hole at the bottom of the cone.
3. Verify the second bar is fully seated.
4. Remove the first bar from the top hole.
5. Repeat this "two-bar dance" until you reach the required number of turns.

Pro-Tip: Most garage door springs have a painted longitudinal line running down the length of the coils. As you wind the spring, this line will form a spiral. Counting the number of coils in this spiral is a secondary way to verify the number of full turns you have completed.

Step 5: Calculating the Required Turns

The number of turns is mathematically tied to the height of the door. The standard formula is (Door Height in Inches / Drum Circumference) + 1. For a standard 7-foot (84-inch) door, the industry standard is 30 to 31 quarter-turns, which equates to 7.5 to 7.75 full rotations. If you have an 8-foot door, you will typically need 34 to 35 quarter-turns (8.5 to 8.75 full rotations).

Step 6: Stretching and Setting

Once the desired number of turns is reached, the spring will have shortened slightly in length due to the coils tightening. Before tightening the set screws, you must "stretch" the spring outward by approximately 1/4 inch. While holding the tension with the winding bar, tap the winding cone lightly with the second bar to pull it away from the center bearing. This prevents the spring from "binding" or "snaking" when it operates. Tighten the set screws until they touch the shaft, then add another 1/2 to 3/4 turn to lock them into the steel.

Step 7: Testing the Balance

Carefully remove the winding bars and the locking pliers from the shaft. Remove the clamps from the tracks. Lift the door halfway by hand. A perfectly wound spring will allow the door to stay in place at the midpoint. If the door falls, you need to add 1-2 quarter-turns. If it "runs away" toward the ceiling, you have over-wound it and must remove 1-2 quarter-turns.

Torsion Spring Specifications and Winding Requirements

The following table provides the standard winding requirements based on door height and standard drum diameters (4-inch drums). Note that specialized high-lift or vertical-lift drums will require different calculations.

Common Mechanical Failures and Remedial Actions

Even when following steps precisely, mechanical variations in the door or hardware can cause issues. Identifying these early prevents long-term damage to the opener motor.

• Issue: The Spring "Snakes" or Bows Excessively




  • Root Cause: The spring was not stretched properly before the set screws were tightened, or the spring wire diameter is too small for the door weight, requiring too many turns.
  • Actionable Fix: Loosen the set screws (while holding tension with winding bars), stretch the spring approximately 1/4" to 1/2" further away from the center bracket, and re-tighten.

• Issue: Loud Popping Sounds During Operation




  • Root Cause: "Coil bind" or lack of lubrication. The coils are rubbing against each other with excessive friction.
  • Actionable Fix: Apply a high-quality lithium-based or silicone-based garage door lubricant specifically to the exterior of the spring coils. Avoid WD-40, as it is a degreaser, not a long-term lubricant.

• Issue: Door is "Hot" (Heavy at the Bottom, Light at the Top)




  • Root Cause: Incorrect spring size or drum type. The spring is providing too much lift at the end of the cycle.
  • Actionable Fix: This often indicates the wrong wire gauge was used. Verify the door weight and consult a DASMA spring chart to ensure the Inch Pounds Per Turn (IPPT) rating of the spring matches the door’s requirements.

• Issue: Set Screws Won't Hold




  • Root Cause: The torsion shaft is scarred or the set screws have been over-tightened in the past, stripping the threads in the winding cone.
  • Actionable Fix: Replace the winding cone or the entire spring if the threads are stripped. If the shaft is scarred, move the winding cone slightly (1/8 inch) to a fresh section of the shaft.

Frequently Asked Questions

Which direction do I wind the garage door spring?

In a standard residential application, you wind the spring "up" towards the ceiling. To determine if you have the right spring on the right side, look at the end of the wire; the tail of a right-hand wind spring should point in a clockwise direction, while a left-hand wind points counter-clockwise.

How many turns should I put on a 7-foot garage door?

A 7-foot door requires 7.5 full turns or 30-31 quarter-turns. Each full turn of the spring corresponds to one full revolution of the cable drum, which is roughly equal to the height of the door divided by the circumference of the drum plus one "safety" turn to keep tension on the cables when the door is open.

Can I wind a garage door spring with a screwdriver?

No. Using a screwdriver is extremely dangerous because the tool is not designed to withstand the lateral torque of a torsion spring. Screwdrivers lack the necessary diameter to fit snugly in the winding cone holes, leading to "kickbacks" that can cause severe facial injuries or broken wrists.

Why does my garage door feel heavy even after winding?

This usually means the spring has lost its "elastic limit" due to age or fatigue, or the spring is undersized for the weight of the door (e.g., a spring designed for a non-insulated door used on an insulated door). If the door remains heavy after the recommended turns, the spring likely needs replacement.

Professional Garage Door Maintenance and Support

Properly balanced springs are the foundation of a safe and functional garage door system. If you are uncomfortable with the high-tension requirements of this procedure, contact a certified DASMA technician to ensure your door operates within manufacturer specifications.
