How To Wire Electric Trailer Brakes: A Complete Step-by-Step Installation Guide
Wiring electric trailer brakes requires running dedicated 10-gauge or 12-gauge copper wire from your tow vehicle's 7-way blade connector through a proportional brake controller and back to the trailer axle magnets. Mastering this installation ensures synchronized deceleration, prevents jackknifing, and keeps your rig compliant with state and federal Department of Transportation braking regulations.
Pre-Operation & Equipment Checklist
Proper execution of an electric trailer brake installation demands precise planning, robust materials, and strict adherence to automotive electrical standards. Unlike standard running lights that operate on low amperage, electric brake circuits pull significant current—typically 2 to 3 amps per magnet—meaning wire gauge sizing and secure connections are paramount to prevent voltage drop and brake drag.
- Essential Gear, Tools, and Materials: 10-gauge and 12-gauge primary automotive wire (GPT or SXL grade), a digital multimeter, wire strippers, heavy-duty ratchet crimpers, marine-grade heat shrink tubing with adhesive lining, a butane heat torch, zip ties, split loom tubing, butt connectors, ring terminals, and self-tapping grounding screws.
- Prerequisite Knowledge and Standards: Familiarity with 12-volt DC automotive wiring, understanding of Ohm's Law regarding wire gauge and distance, and basic knowledge of trailer axle weight ratings (TAWR) to determine whether you are running single, tandem, or triple axle setups.
- Budget and Duration Benchmarks: Expect a material cost of fifty to one hundred and fifty dollars depending on wire length and whether you need to install an aftermarket brake controller. Allocate roughly three to five hours for a clean, professional, weather-sealed installation.
Step-by-Step Installation and Wiring Procedure
Step 1: Mounting and Powering the Trailer Breakaway Kit
Begin by mounting the breakaway switch to the trailer tongue using a self-tapping bolt or a specialized clamp. The breakaway switch features a pull pin attached to a steel cable that must be clipped to the tow vehicle during transit. Connect one of the breakaway switch wires to the positive auxiliary 12-volt feed coming from the trailer's 7-way plug (typically the black wire). Connect the second breakaway switch wire to the central positive feed wire that runs directly to the trailer brake magnets (typically the blue wire). Finally, mount the onboard 12-volt breakaway battery securely inside a protective box on the tongue, wiring its positive terminal to the auxiliary feed and its negative terminal to a clean, bare-metal trailer frame ground.
Warning: Never mount the breakaway switch to removable trailer components like a fold-away tongue hinge, as structural movement can compromise the grounding path and accidental detachment integrity.
Step 2: Routing and Securing the Main Feed Lines
From the trailer's 7-way junction box or tongue-mounted connector, route your primary 10-gauge blue brake wire and white ground wire toward the axles. Protect the wire run by feeding it through split loom tubing, securing it tightly to the underside of the trailer frame using heavy-duty stainless steel or UV-resistant nylon zip ties every 16 to 24 inches. Ensure the wire harness is kept well away from hot exhaust pipes, moving suspension components, and sharp frame edges where road vibration could chafe through the insulation over time.
Pro-Tip: Leave a small service loop of wire near the axle junction points to allow for natural suspension articulation and axle movement without putting tension on the crimp connections.
Step 3: Connecting the Axle Magnet Wires
Electric drum brake assemblies use two wires running from the backing plate to power the internal electromagnet. Because electric brake magnets are non-polarized, it does not matter which magnet wire connects to the positive power feed and which connects to the ground return. Splice both magnet wires from each wheel into your main blue brake feed wire using weather-proof, heat-shrink butt connectors. For tandem axle trailers, daisy-chain the wire from the front axle to the rear axle, ensuring all connections are crimped firmly and sealed completely with a heat gun to activate the waterproof adhesive lining.
Step 4: Establishing a Robust Frame Ground
A common point of failure in trailer wiring is relying solely on the hitch ball for the electrical ground return. Run a dedicated 10-gauge white ground wire from the 7-way connector ground terminal directly to the trailer frame, and run another ground jumper from the brake backing plate mounting bolts or a dedicated frame tab back to the unified ground circuit. Grind away any rust, paint, or protective undercoating down to bare metal before securing ring terminals with star washers and thread-locking fluid.

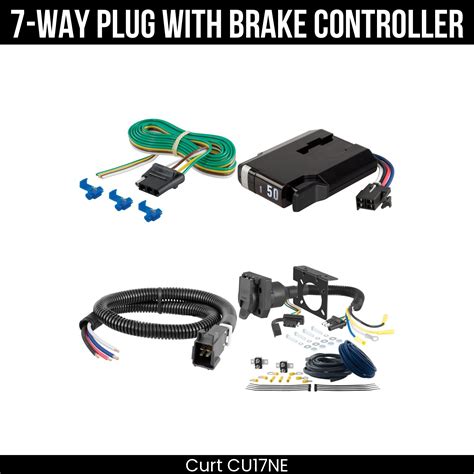

Step 5: Integrating the Tow Vehicle Brake Controller
Inside the tow vehicle cabin, mount a proportional inertial brake controller under the dashboard within easy reach of the driver. Connect the controller's four standard wires according to the manufacturer instructions: the black wire to a fused 12-volt positive battery source under the hood, the white wire to a solid chassis ground, the red wire to the cold-side brake pedal stoplight switch, and the blue output wire to the vehicle's 7-way trailer socket pin. Test the system manually using the controller's override lever to verify proper voltage delivery at the rear bumper socket before hitching the trailer.
Trailer Wiring Guide: How to Wire Your Trailer for Safety and ...
Electric Brake Technical Specifications and Wire Gauge Matrix
| Parameter / Component | Single Axle Setup (2 Brakes) | Tandem Axle Setup (4 Brakes) | Tri-Axle Setup (6 Brakes) |
|---|---|---|---|
| Total Current Draw | 6 Amps DC | 12 Amps DC | 18 Amps DC |
| Recommended Wire Gauge | 12 AWG Copper | 10 AWG Copper | 8 AWG Copper |
| Breakaway Battery Rating | 5 Amp-Hour (AH) | 5 to 7 Amp-Hour (AH) | 9 Amp-Hour (AH) |
| Standard Fuse Protection | 15 Amp Circuit Breaker | 20 Amp Circuit Breaker | 30 Amp Circuit Breaker |
Troubleshooting Common Trailer Brake Wiring Failures
- Root Cause: Intermittent or completely absent braking force accompanied by erratic controller error codes.
- Actionable Fix: Inspect all frame ground points for corrosion, loose hardware, or paint barrier interference. Clean down to bare metal and apply dielectric grease to seal out moisture.
- Root Cause: Blown vehicle fuses or clicking solenoids the moment the manual brake controller lever is engaged.
- Actionable Fix: Trace the main blue brake wire for pinched insulation or exposed copper touching the metal trailer frame, creating a direct short circuit. Replace damaged wire sections and re-insulate with heat shrink.
- Root Cause: Brakes locking up aggressively at low speeds or failing to grab when hauling heavy loads.
- Actionable Fix: Recalibrate the inertial pendulum or digital sensor settings inside the cab-mounted brake controller. If locking persists, check for grease contamination on the brake shoes and magnet faces caused by failing wheel bearing seals.
Frequently Asked Questions
Do electric trailer brakes require a dedicated ground wire?
Yes, running a dedicated heavy-gauge copper ground wire between the tow vehicle and the trailer ensures consistent current flow. Relying on the hitch ball or safety chains creates high electrical resistance, resulting in weak magnetic engagement and flickering lights.
What is the correct wire gauge for electric trailer brakes?
For standard single-axle trailers, 12-gauge copper wire is sufficient. For tandem-axle trailers pulling four brakes simultaneously, upgrade to 10-gauge wire to prevent voltage drop over the extended run from the front tongue to the rear axle.
How do I test if my trailer brake magnets are working?
Jack up the trailer wheel, spin it by hand, and apply the manual override on your brake controller while holding a steel screwdriver near the bottom of the backing plate. If you feel a distinct magnetic pull drawing the screwdriver toward the center of the hub, the magnet is functioning properly.
Can I wire electric brakes without a brake controller?
No, electric trailer brakes require a variable 12-volt signal modulated by a brake controller to function correctly. Connecting them directly to the vehicle's brake light circuit would apply full locking voltage instantly every time you tap the pedal, causing dangerous wheel skidding.
